Overview

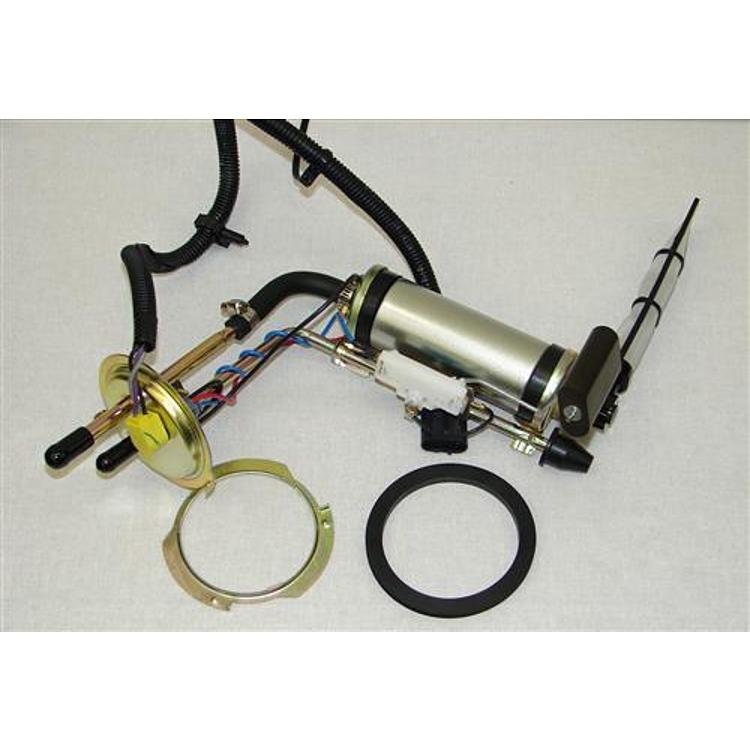

The MTS Company JCSU-9193P is a fuel sending unit with a fuel pump, for 1991–1993 Jeep Cherokee (XJ) models. It is built for 18 and 23 gallon tanks and includes lock and O-ring hardware.
Cherokee owners who need a sender with the pump already included will find the fitment details below.
Key features
- Sending unit with fuel pump included
- Covers 1991–1993 Cherokee XJ trims in the manufacturer fitment
- 18 and 23 gallon tank sizes
- Part number JCSU-9193P, UPC 70000640556
Pump-equipped sender fitting
A sender with an attached pump brings the fuel pump, the float and the mounting flange together as one assembly. That makes the job easier because fewer separate parts go into the tank, but the assembly is heavier and the pump wiring and fuel lines must reconnect correctly. Support the assembly while it is lowered, and keep the float arm clear of the tank walls. Check the orientation of the fuel outlet and electrical connector before tightening the lock ring.
Fuel system work near a pump carries fire risk, so keep sparks and open flames away from the tank. Check for leaks at the hose connections once the engine is started. Tank condition matters as well. Rust or debris can clog the pump inlet, so clean the tank before reassembly and replace any cracked or hardened fuel lines.
- Lower the assembly slowly
- Check the outlet and connector orientation
- Look for leaks after priming
Specifications
| Brand | MTS Company |
|---|---|
| Part number | JCSU-9193P |
| UPC | 70000640556 |
| Part type | Fuel sending unit with fuel pump |
| Tank size | 18 and 23 gallon |
| Included hardware | Lock ring and O-ring |
| Fitment type | Direct fit |
Vehicle fitment
Base, Briarwood, Country, Laredo, Limited and Sport are the named trims for 1991–1993 Jeep Cherokee (XJ) models.
Other Cherokee XJ years are not in the fitment, and the earlier SJ Cherokee is not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The fuel pump is included, so the assembly must be handled with care during fitting. Fuel system work carries fire risk, so disconnect the battery before starting.
What’s included
The fuel pump, lock ring and O-ring are included.
