Overview
The Mr. Gasket Company carburetor adapter kit, 9/16 in., part number MRG1937, adapts from a 2 bbl carburetor to a 2 bbl intake.

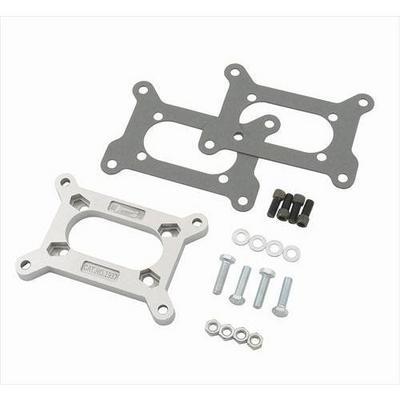

The kit comes with gaskets, studs, nuts and washers. Its adapter is die cast aluminum.
Mounting and leak checks
A carburetor adapter sits between the carburetor and the intake, so its job is to carry the load and seal the joint. Clean both mating surfaces before assembly, removing old gasket material and any oil film. Set the gaskets in place first, then start every stud by hand so the adapter sits square before the nuts are tightened.
Torque the fasteners gradually in a crisscross order, since uneven pressure can warp the aluminum. Once the engine has warmed, check for fuel smell, seepage and hissing around the joint. A small leak at an adapter is usually a seating issue rather than a faulty part, so recheck the bolts first before replacing anything.
- Use a straight edge on the mating surface
- Replace any gasket that is torn or hardened
- Check the joint again after the first drive
Specifications
| Brand | Mr. Gasket Company |
|---|---|
| Part number | MRG1937 |
| Size | 9/16 in. |
| Adapts from | 2 bbl |
| Adapts to | 2 bbl intake |
| Material | Die cast aluminum |
| Included hardware | Gaskets, studs, nuts, washers |
| Fitment | Universal Fit |
Vehicle fitment
It is a universal fit, so it is not tied to one particular vehicle. Match the 9/16 in. size and the 2 bbl bore layout to your carburetor and intake before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Tighten the nuts in a crisscross pattern once the gaskets are seated, and check the joint for leaks after the engine has run.
What’s included
Gaskets, studs, nuts and washers are included. Count the pieces on arrival and compare them with your intake’s mounting holes.
