Overview
The Mr. Gasket Company carburetor adapter kit 0.75 inch, part number MRG1932, adapts from a square bore to a square-bore connection. It installs quickly and includes gaskets, studs, nuts and washers.
Key features
- Die cast aluminum adapters
- Gaskets, studs, nuts and washers included
- Square-bore to square-bore adapter layout
- Universal fit design
Adapter sealing basics
A carburetor adapter sits between the carburetor and the intake, so its job is to keep the air-fuel path sealed and aligned. Any gap at the mating faces can pull in unmetered air, which makes idle rough and throttle response uneven. Flat, clean surfaces matter more than tight torque, since a warped or dirty face will leak even with the hardware fully tightened.
Adapters are often used when a carburetor moves to a different intake footprint or spacing. Before ordering, measure the carburetor base and the intake flange, then decide whether the adapter height will affect linkage clearance or the air cleaner fit. Replacing old gaskets with a fresh set is usually the safer choice when the joint is opened.
- Check both faces for warp with a straightedge
- Confirm linkage clearance after fitting
- Verify air cleaner clearance
- Keep fasteners clean and dry
Specifications
| Brand | Mr. Gasket Company |
|---|---|
| Part number | MRG1932 |
| Size | 0.75 inch |
| Adapts from | Square bore |
| Adapts to | Square-bore |
| Material | Die cast aluminum |
| Included hardware | Gaskets, studs, nuts, washers |
| Fitment | Universal Fit |
Vehicle fitment
This kit is universal fit. Check the square-bore dimensions and mounting pattern against your carburetor and intake before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Clean both mating faces before fitting the gaskets, then tighten the studs and nuts evenly in a crisscross pattern so the adapter seats flat.

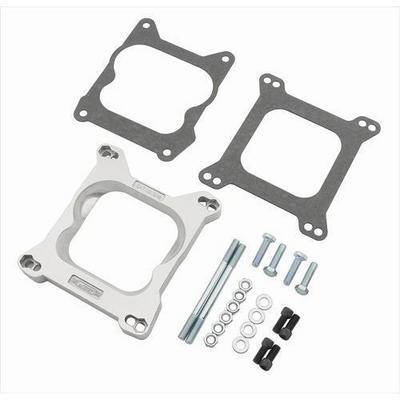

What’s included
Gaskets, studs, nuts and washers are included with the adapter kit.
