Method Race Wheels UTV Series 401 Beadlock, 14x7 with 4 on 156 Bolt Pattern – Black – MR40147046543B

Method Race Wheels

$199.50In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 9:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method 401 UTV beadlock wheel, 14×7, with a 4 on 156 bolt pattern and black finish
  • Part number MRWMR40147046543B, universal fit
  • Backspace 4+3 with forged 6061 beadlock ring
  • Load rating of 1600 lbs

Description

Overview

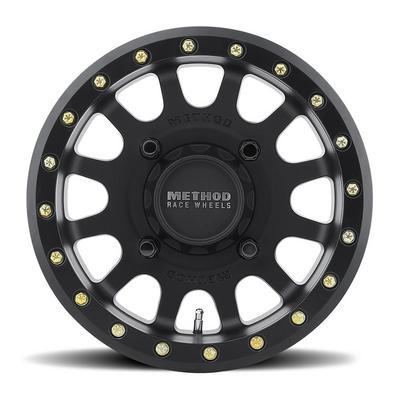

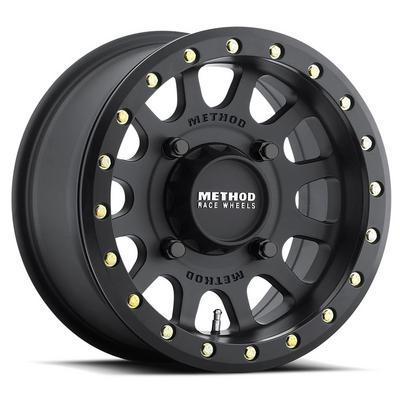

The Method Race Wheels 401 UTV Beadlock in 14×7 with a 4 on 156 bolt pattern and black finish, part MRWMR40147046543B, is an aluminum beadlock wheel from Method’s 401 series for UTVs.

The wheel and its matte black ring come in diameters from 12 to 15 inches, and this is the 14 inch size. The 401 is built for serious racers and enthusiasts and carries a 1600 lbs load rating.

Key features

  • Forged 6061 beadlock ring
  • Grade 8 zinc-plated mounting hardware
  • 14 by 7 inch size with a 4+3 backspace

Choosing a beadlock wheel

A beadlock wheel clamps the tire bead to the rim with a separate ring, so the tire can run at low pressure on trails without leaving the bead. That makes the ring and its bolts central to how the assembly performs, and the seating should be checked each time the tire is changed.

When choosing a size, the bolt pattern and backspace matter as much as the diameter. Backspace controls how far the wheel sits inside the fender and how much clearance remains for brake calipers and control arms. A wheel with a different backspace can rub even when the bolt pattern matches exactly.

Tires are sold separately, so plan the tire size around the rim width. The overall diameter and sidewall height should still be compared with the fender and suspension travel before mounting.

  • Re-torque ring bolts after the first few trail runs
  • Inspect the ring for cracks or bent edges after rock strikes
  • Keep the valve stem clear of the ring during mounting

Specifications

Brand Method Race Wheels
Part number MRWMR40147046543B
Style 401 Beadlock
Wheel type UTV
Diameter 14 inches
Width 7 inches
Bolt pattern 4 on 156
Backspace 4+3
Beadlock Yes
Finish Black
Diameter range, this finish 12 to 15 inches
Hardware Grade 8, zinc plated
Load rating 1600 lbs
Fitment Universal fit

Vehicle fitment

Universal fit is the listed fitment, so the wheel is not tied to a single UTV. Compare the 4 on 156 bolt pattern and 4+3 backspace with your hub and clearance before ordering.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

The forged 6061 beadlock ring and mounting hardware are included with the wheel.

Not included: Tires.

SKU: MRWMR40147046543B Categories: , ,

Questions & Answers

What diameters does the black 401 beadlock come in?

The matte black 401 wheel and ring are offered from 12 to 15 inches. This model is the 14 inch size at 7 inches wide, with a 4 on 156 bolt pattern and a 4+3 backspace.

Will this wheel fit my UTV?

It is a universal fit wheel, so it is not built for one UTV model. Match the 4 on 156 bolt pattern and the 4+3 backspace against your hub before you buy.

Does the wheel include its ring?

Yes. The forged 6061 beadlock ring and mounting hardware come with the wheel. Tires are not included, so budget for them separately.

How often should beadlock ring bolts be checked?

Check them before each trip and again after the first few runs on a new setup. Bolts can loosen as the tire settles, so a quick torque check keeps the ring seated. Replace any hardware that shows stretching or corrosion.

Does a beadlock wheel need special tires?

Standard tires can be used as long as the bead fits the rim and the tire is rated for the intended use. Beadlock setups often run at low pressure, so confirm the tire load and pressure rating before trail use.
