Overview

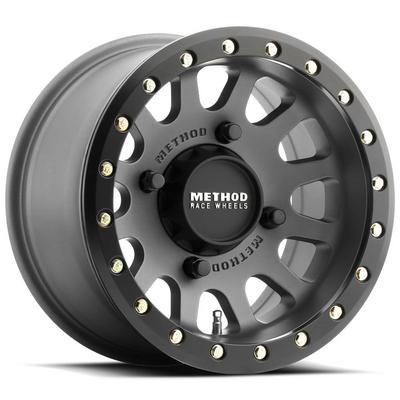

The Method Race Wheels 401 UTV Titanium Beadlock in 15×7 (part number MR40157047843B) is an aluminum beadlock wheel for UTVs, with a 15 inch diameter, a 7 inch width and a 4 on 136 bolt pattern. The offset is 13, the backspacing is 4.5 and the center bore is 106.
The wheel includes a forged 6061 beadlock ring with a 1600 lb load rating. The ring hardware is Grade 8 zinc plated and comes with the wheel.
The 401 UTV Titanium Beadlock is a wheel designed for enthusiasts. It is built for race and street use and belongs to the MR401 UTV Beadlock series.
Key features
- Titanium finish on an aluminum beadlock wheel
- Forged 6061 beadlock ring
- 15 inch diameter and 7 inch width
- Offset of 13 with 4.5 backspacing
- 4 on 136 bolt pattern and 106 center bore
- Load rating of 1600 lbs
Reading offset on a UTV
Offset describes how far the wheel face sits from the hub mounting surface, and backspacing describes how far the back of the wheel sits behind the face. These numbers shape the space around the brakes, control arms and body. A wheel that pushes outward can rub the fender at full travel, while one that sits too deep can crowd the calipers.
Tire size also changes how the wheel fits. A taller or wider tire needs more room, so the wheel offset and tire choice should be considered together. Beadlock rings add hardware on the outer edge of the wheel, which can slightly change the weight balance, so check the tire after mounting. Rotating to a different wheel position on the same UTV is rarely a good idea unless the fit is checked.
- Check tire rub at full steering lock
- Measure brake caliper clearance
- Consider tire size before changing offset
- Balance the tire after mounting the ring
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MR40157047843B |
| Series | MR401 UTV Beadlock |
| Diameter | 15 inches |
| Width | 7 inches |
| Offset | 13 |
| Backspacing | 4.5 |
| Center bore | 106 |
| Bolt pattern | 4 on 136 |
| Finish | Titanium |
| Style | Beadlock |
| Construction | Aluminum |
| Beadlock ring | Forged 6061 |
| Load rating | 1600 lbs |
| Wheel type | UTV |
| Fit type | Universal fit, so confirm fit for your vehicle’s year, model and trim before ordering. |
Vehicle fitment
Before ordering, check the 4 on 136 bolt pattern, the 13 offset and the 106 center bore against your UTV’s hub, and confirm fit for your vehicle’s year, model and trim.
Installation notes
Fasten the ring hardware in the order the beadlock design requires, and confirm the ring sits evenly before the wheel is put into service.
