Method Race Wheels UTV Series 401 Beadlock, 14x7 with 4 on 156 Bolt Pattern – Black – MR40147046552B

Method Race Wheels

$334.42In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

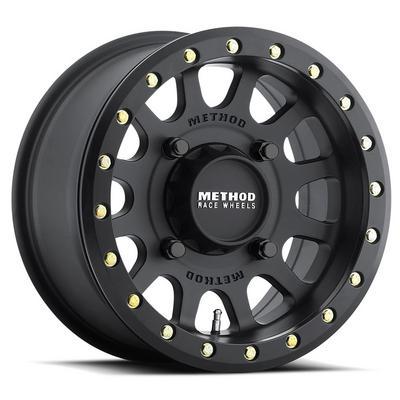

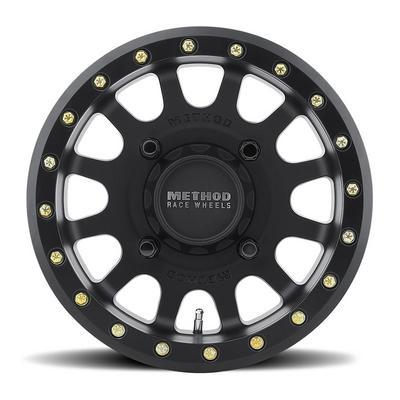

  • Method 401 UTV beadlock wheel, 14×7, with a 4 on 156 bolt pattern and black finish
  • Part number MRWMR40147046552B, universal fit
  • Backspace 5+2 with forged 6061 beadlock ring
  • Load rating of 1600 lbs

Description

Overview

Part MRWMR40147046552B is Method’s 401 beadlock wheel in 14×7 with a 4 on 156 bolt pattern and black finish. Its 5+2 backspace determines how far the wheel sits inside the fender.

The matte black wheel and ring come in sizes from 12 to 15 inches. The 401 is built for serious racers and enthusiasts, rated at 1600 lbs, with a forged 6061 beadlock ring.

Key features

  • Forged 6061 beadlock ring
  • Grade 8 zinc-plated hardware
  • 5+2 backspace on a 14 inch wheel

Tire mounting and bead care

Mounting a tire on a beadlock rim takes more care than a standard wheel. The bead has to seat against the rim before the ring is bolted down, and any dirt or debris between them can prevent a clean seal. Work slowly, lubricate the bead lightly as the instructions for the tire allow, and check the seating from all sides before inflating.

Tire pressure also plays a role. Low pressure is common in off-road use, and it places more load on the bead area. A regular look at the bead and ring after each outing helps catch small problems before they become a loss of air on the trail.

  • Clean the bead seat before each tire change
  • Check ring bolts for even tightness
  • Look for bead wear after hard landings

Specifications

Brand Method Race Wheels
Part number MRWMR40147046552B
Style 401 Beadlock
Wheel type UTV
Diameter 14 inches
Width 7 inches
Bolt pattern 4 on 156
Backspace 5+2
Beadlock Yes
Finish Black
Diameter range, this finish 12 to 15 inches
Hardware Grade 8, zinc plated
Load rating 1600 lbs
Fitment Universal fit

Vehicle fitment

It is a universal fit wheel, so it is not built for a particular UTV. Check the 4 on 156 bolt pattern and the 5+2 backspace against your hub and brake clearance before buying.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Forged 6061 beadlock ring and Grade 8 hardware come with the wheel.

Not included: Tires.

SKU: MRWMR40147046552B Categories: , ,

Questions & Answers

Does this 14x7 401 have a 5+2 backspace?

Yes. The backspace is 5+2, which affects how far the wheel sits inside the fender and how it clears the brake components on your vehicle.

Which bolt pattern is the 401 14x7 black wheel?

It has a 4 on 156 bolt pattern. Confirm it matches your hub before you order, since the bolt pattern must match exactly for the wheel to mount to the vehicle.

What is the load rating?

Method rates the wheel at 1600 lbs. The beadlock ring is forged 6061 aluminum and the hardware is Grade 8 zinc-plated.

What should be checked before the first ride?

Check that the tire bead is seated evenly, the ring bolts are tight, and the valve stem is clear of the ring. Also confirm the wheel clears the brakes and fender at full suspension travel before heading out.

How does backspace affect a UTV wheel?

Backspace sets how far the wheel sits inside the fender and how much room remains for brake parts and suspension components. Compare the backspace with your current wheels, since a small change can cause rubbing at full steering lock.
