Method Race Wheels 701 Trail Series, 17x8.5 with 8 on 6.5 Bolt Pattern – Bronze – MR70178580900

Method Race Wheels

Shop Method Race Wheels 17x8.5 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 701 Trail Series 17×8.5 bronze wheel, part MRWMR70178580900
  • 8 on 6.5 bolt pattern, 131 center bore, offset 0, backspacing 4.75
  • One-piece cast 356 aluminum with T6 heat treatment
  • Patent pending Bead Grip design in a windowed style
  • No vehicle fitment is named; check bolt pattern and hub match

Description

Overview

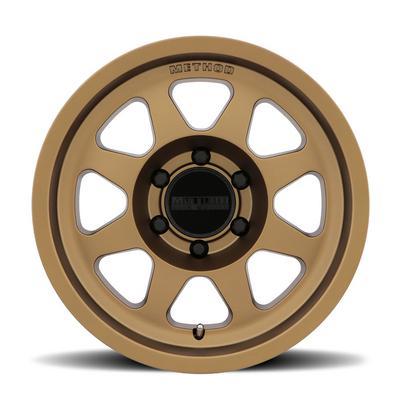

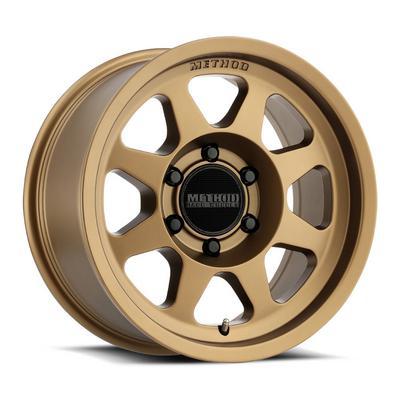

Method Race Wheels offers this 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178580900, as a one-piece cast aluminum off-road wheel. It has an 8 on 6.5 bolt pattern, a 131 center bore, an offset of 0 and a backspacing of 4.75. Because Method labels the wheel universal fit, the bolt pattern and center bore are the first things to verify.

Bead Grip is patent pending and is designed to keep the tire seated and gripping at lower air pressures. The wheel adds a reinforced inner lip from race wheel design and a safety hump on each bead seat to stabilize the tire. The wheel was developed with finite element analysis and field testing, and it is built for off-road racing use.

Key features

  • Bronze windowed wheel in the Trail Series.
  • Cast aluminum 356, one piece, T6 heat treated.
  • Bead Grip design with patent pending status.
  • Reinforced inner lip from race wheel design.
  • Safety hump on the inner and outer bead seat.
  • Method reports finite element analysis and field tests were part of development.

Mounting and bead seating

A bronze finish is a cosmetic choice, but bead seating is what keeps a trail tire working. When the bead sits evenly against the seat, the tire holds air at low pressure and resists rolling off the rim over rocks. Clean the seat of dirt and old rubber before mounting, since grit under the bead is a common cause of slow leaks.

Lower pressures take more care in setup. Air down in small steps, then check that the bead stays even around the rim. Once you air back up for the road, inflate slowly and check each side for a steady seal. Wheels with a wide tire footprint may need more attention to clearance than narrow wheels.

Plan the hardware before the wheel arrives. Pick lug nuts and valve stems that match your hub and wheel, and keep center caps aside until fitment is confirmed. Recheck torque after the first short drive, since new wheels often settle a little as the mounting surface seats.

Specifications

Brand Method Race Wheels
Part number MRWMR70178580900
Series 701 Trail Series (MR701 Bead Grip)
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 8 on 6.5
Center bore 131
Offset 0
Backspacing 4.75
Construction One-piece cast 356 aluminum, T6 heat treatment
Style Windowed
Finish Bronze

Vehicle fitment

No vehicle, year or chassis is named for this wheel. The universal fit label is only a starting point, since the 8 on 6.5 bolt pattern and 131 center bore decide whether a hub matches.

Compare bolt pattern and center bore with your vehicle’s hub specifications. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 8 on 6.5 bolt pattern and the 131 center bore against the hub before any mounting. Offset 0 and backspacing 4.75 set how far the wheel sits in the well, so confirm clearance with the tire you plan to run.

What’s included

One wheel in Bronze from the Method 701 Trail Series.

Not included: Tires, lug nuts, valve stems and center caps need to be added separately.

SKU: MRWMR70178580900 Categories: ,

Questions & Answers

What is part MRWMR70178580900?

It is the Method Race Wheels 701 Trail Series wheel in Bronze, 17 Inches by 8.5 Inches, with an 8 on 6.5 bolt pattern, a 131 center bore and an offset of 0. The part number matches the title.

Can I use this wheel on my truck?

No vehicle is named for this wheel, so its fit cannot be confirmed. Check the 8 on 6.5 bolt pattern, 131 center bore and offset against your truck's hub specifications, then confirm the year, model and trim.

Does the wheel include hardware?

Hardware is not part of this package. Lug nuts, valve stems and center caps must be bought separately, and a tire is not included either.

Why does a trail tire sometimes slip on the rim?

Slipping usually means the bead has moved off the seat, often after airing down hard or hitting a rock. Reseat the bead with proper inflation, check for debris on the seat, and inspect the wheel's hump for damage before running again.
