Overview

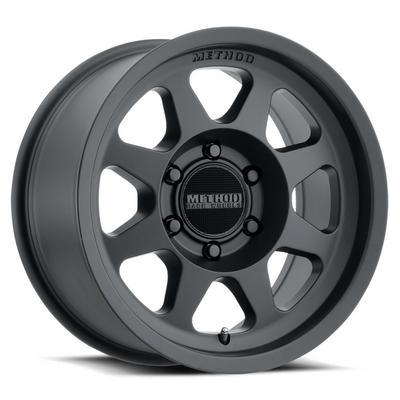

The Method Race Wheels 701 Trail Series 17×8.5 wheel in Matte Black, part number MRWMR70178516500, is a one-piece cast aluminum off-road wheel with a 6 on 135 bolt pattern, an 87 center bore and an offset of 0. Method groups it into its Trail Series, and it is labeled universal fit, so the bolt pattern and center bore matter more than any vehicle name.

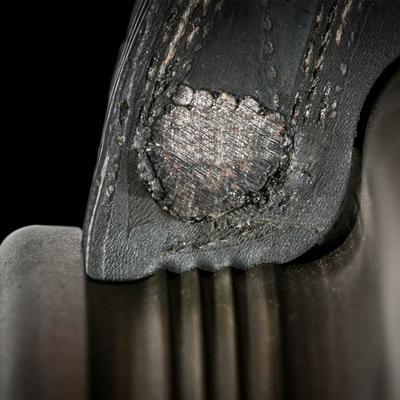

The wheel carries the patent pending Bead Grip design, which engages the tire bead seat and keeps the tire gripping at lower air pressures. A reinforced inner lip taken from race wheel design adds strength at the rim. The company built the 701 for the off-road racing community, and finite element analysis and field tests were used to reduce weight while adding strength.
Key features
- One-piece cast 356 aluminum construction with T6 heat treatment.
- Patent pending Bead Grip technology for added tire grip at lower air pressures.
- Reinforced inner lip taken from race wheel design.
- Aggressive safety hump on the inner and outer bead seat that helps stabilize the tire and prevent de-beading.
- Windowed style in a matte black finish.
- Developed with finite element analysis and field testing.
Caring for a matte finish
A matte finish does not have the clear coat of a gloss wheel, so harsh cleaners and abrasive pads can leave shiny patches. Rinse mud off after trail use, then wash with a mild soap and a soft brush. Avoid strong solvents and tire dressings that run onto the face, since they can stain the surface and be hard to remove.
Matte black shows scratches more clearly on some surfaces than on gloss, though a light scuff can often be cleaned off. Check the inner lip and bead seat when cleaning, because mud packed there can hide cracks or dents. Dry the wheel fully before storage to keep corrosion from starting in bolt holes. Store wheels flat or upright, and off concrete when possible.
- Use mild soap and a soft brush
- Avoid abrasive pads and strong solvents
- Clean the bead seat and inner lip
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178516500 |
| Series | 701 Trail Series (MR701 Bead Grip) |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Style | Windowed |
| Finish | Matte Black |
Vehicle fitment
No vehicle is named in the specifications for this wheel, and no years or chassis codes are given. Method labels it universal fit, but a wheel fits a hub by bolt pattern, center bore and offset, so check those numbers before anything else.
Compare the 6 on 135 bolt pattern and 87 center bore against your hub specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the bolt pattern, center bore and offset against your hub before mounting. Bead Grip is designed for lower tire pressures, so choose a pressure that suits your tire, terrain and load.
What’s included
One Method Race Wheels 701 Trail Series wheel in Matte Black.
Not included: Tires, lug nuts, valve stems and center caps must be supplied separately.
