Overview

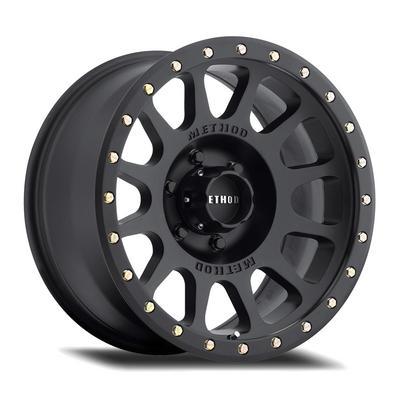

Part MRWMR30578560500 is a 17 x 8.5 inch aluminum windowed wheel in matte black, with a 6 on 5.5 bolt pattern and 108 center bore. Method Race Wheels sells it as part of the MR305 NV series for off-road use.
The company started as a builder of wheels for off-road racing and designs each one for its intended job. Finite element analysis and field testing are part of development, with the goal of less weight and more strength. Offset is 0 and backspacing is 4.75, so check these figures against your vehicle’s hub.
Key features
- Windowed MR305 NV styling on a 17-inch wheel
- Aluminum construction in a matte black finish
- 8.5-inch width with a 6 on 5.5 bolt pattern
- 108 center bore and 0 offset
- Designed to target low weight and high strength
Bead seating and tire mounting
Mounting a tire on a wheel involves seating the bead against the rim edge. A clean rim and a lubricant made for tire beads help the bead slide into place without tearing. Air pressure during seating should be applied carefully, since a sudden burst of air can pull the bead off the rim seat. A poorly seated bead will leak and may not hold pressure on rough ground.
The wheel’s finish has little effect on how the tire seats. What matters is the rim edge being clean, free of scratches that could snag the bead, and matched to the tire size. After mounting, let the tire settle and check pressure before driving. Have the assembly balanced, since an unbalanced wheel can cause steering vibration on the highway.
- Clean the bead seat before mounting
- Use a lubricant made for tire beads
- Check pressure after seating
- Have the wheel and tire balanced together
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30578560500 |
| Series | MR305 NV |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Fitment | Universal Fit |
Vehicle fitment
This wheel carries a universal fit label and no make, model or year is tied to it. Hub compatibility starts with the 6 on 5.5 bolt pattern and the 108 center bore, then offset and backspacing must also suit the vehicle.
A universal label is a catalog classification and says nothing about clearance. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The package covers a single wheel.
Not included: Tires, lug nuts and center caps are not included with the wheel.
