Overview

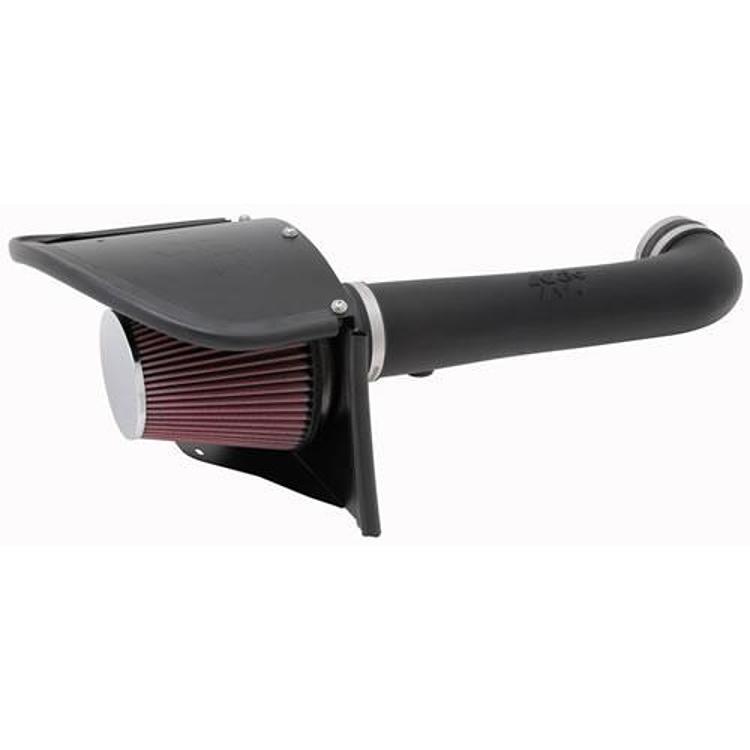

The K&N 63-1566 AirCharger is a cold-air intake kit for the 2012–2018 Jeep Wrangler JK, 2 and 4 door models with the 3.6L six-cylinder engine. It replaces the factory air filter and air intake housing with a K&N filter, heat shield and custom molded intake tube.
K&N designs the system to reduce intake restriction by smoothing and straightening airflow, so the engine can draw in more air. Extra air brings more usable power and acceleration across the RPM range. The heat shield mounts in the lower air box to help draw cooler, denser air into the throttle body.
Key features
- Replaces the factory air filter and air intake housing on the 3.6L Wrangler JK.

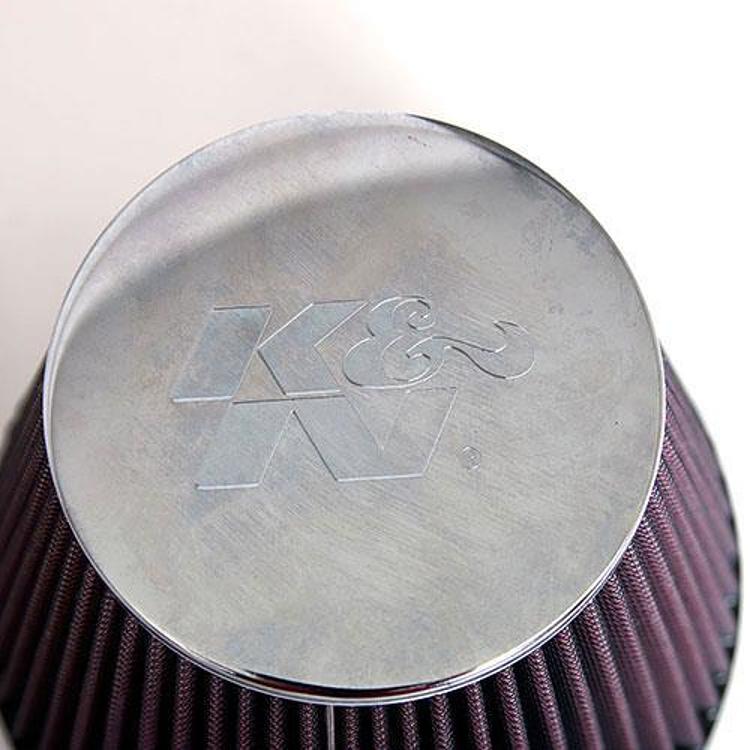

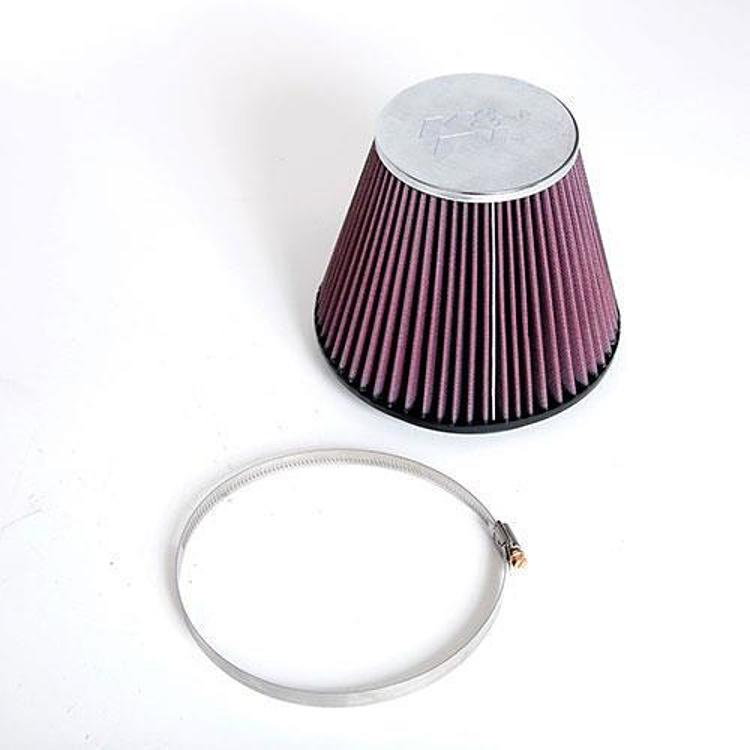

- Chrome-topped K&N high-flow air filter with an oil filter type
- K&N-embossed heat shield that mounts into the lower air box.
- Free-flowing high density polyethylene intake tube, custom molded to feed the throttle body.
- Rated for up to 100,000 miles before service, depending on driving conditions.
- Aimed at sharper throttle response and a fuller engine sound.
- Made in the USA, with the K&N Million Mile Limited Warranty.
Wrangler JK intake tips
The Wrangler JK has a tight engine bay, so the intake tube and heat shield need to clear the battery, the steering components and the fan shroud. Because the lower air box is where the heat shield mounts, check the mounts after any trail run that involves deep water or heavy flex. A secure heat shield keeps the airflow path as designed.
Off-road use brings dust and water into the filter faster than paved driving. A washable oil filter can be cleaned and re-oiled, but it should be inspected whenever the air box is opened. Keep the custom molded tube free of cracks, since a split tube can let unfiltered air bypass the filter.
- Check heat shield mounts after rough trail use
- Inspect the molded tube for cracks at each oil change
- Re-oil the filter after each cleaning
- Confirm the air box lid seats fully before driving
Specifications
| Brand | K&N Filter |
|---|---|
| Part number | 63-1566 |
| UPC | 24844319876 |
| Intake type | Cold air |
| Filter housing type | Partial enclosure |
| Filter type | Oil |
| Inlet tube | Included |
| Fitment type | Direct fit |
| Engine | 3.6L 6 cylinder |
| Tube material | High density polyethylene |
| Filter service interval | Up to 100,000 miles, depending on driving conditions |
| Install time | Usually 90 minutes or less |
Vehicle fitment
This kit fits 2012–2018 Jeep Wrangler (JK) models in the 75th Anniversary, Rubicon, Sahara, Sport and Sport S trims, plus the Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport and Unlimited Sport S versions.
The 2007–2011 JK years and the JL generation are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is relatively easy and usually takes 90 minutes or less, with only a screwdriver, a socket set and several wrenches. This kit is not legal for highway use in California or in any state enforcing California emission rules, so check local rules before fitting it to a vehicle driven on public roads.

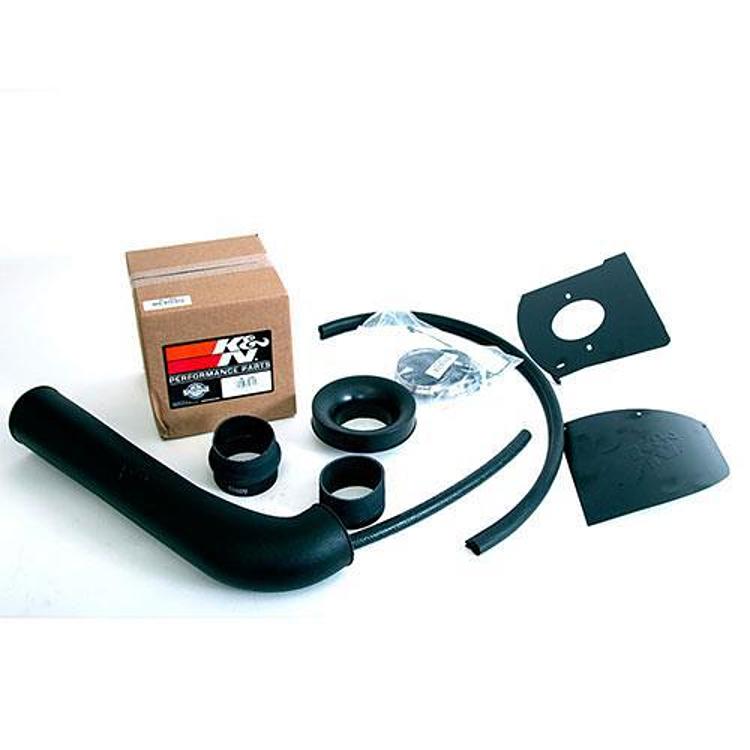

What’s included
The kit includes the chrome-topped K&N high-flow air filter, the K&N embossed heat shield that mounts into the lower air box, and the custom molded inlet tube.
