Overview

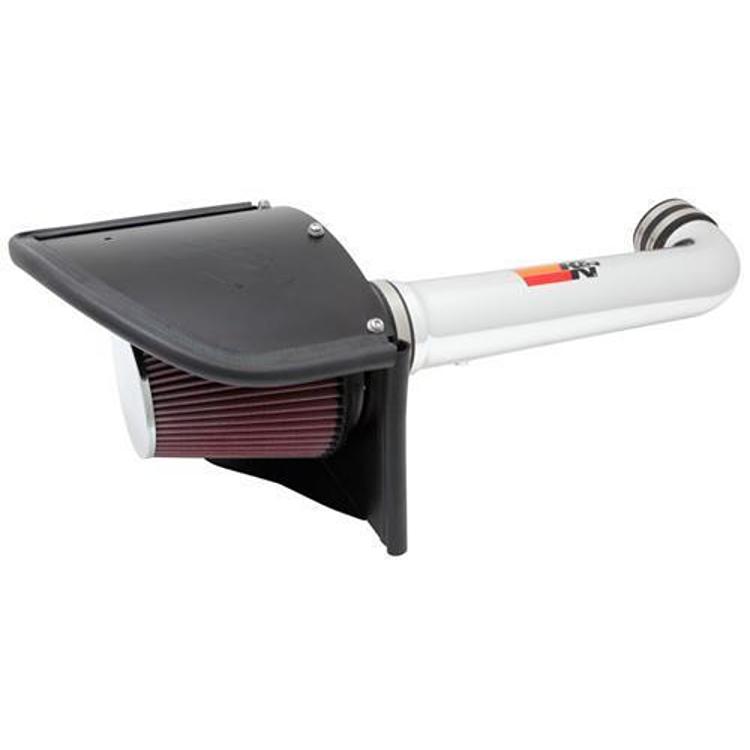

The K&N 77-1566KP is a 77 Series high-flow performance air intake system for the 2012–2018 Jeep Wrangler JK, including the Unlimited models. It replaces the restrictive factory air filter and air intake housing with a mandrel-bent aluminum tube and a chrome-topped K&N filter.
The tube is designed to reduce airflow restriction by smoothing and straightening air on its way into the throttle body. The larger air volume is intended to add usable power and acceleration across the RPM range, and the kit is designed to improve throttle response and engine sound. Check CARB status for this part before installing, since some 77 Series intakes are not legal in California.
Key features

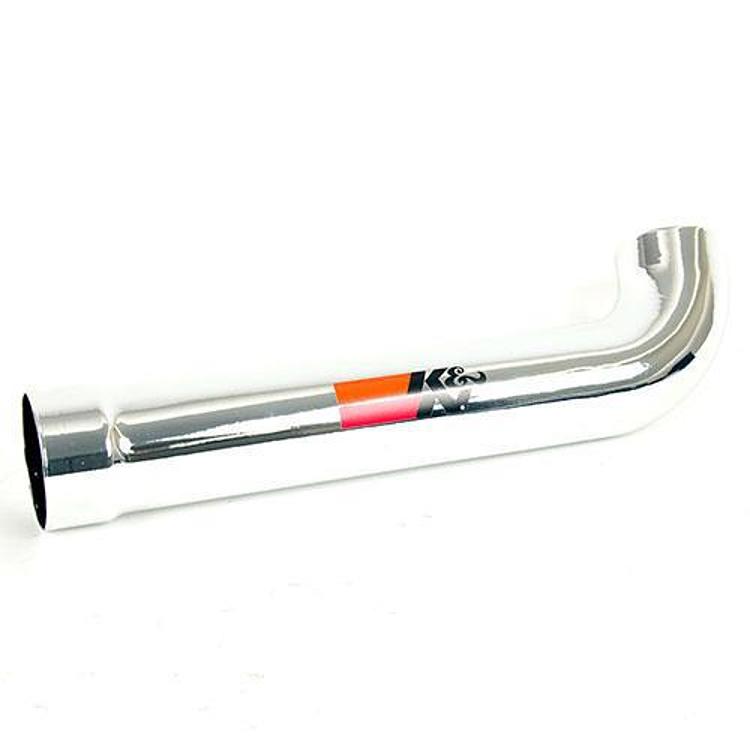

- Free-flowing mandrel-bent aluminum tube with a chrome-like finish

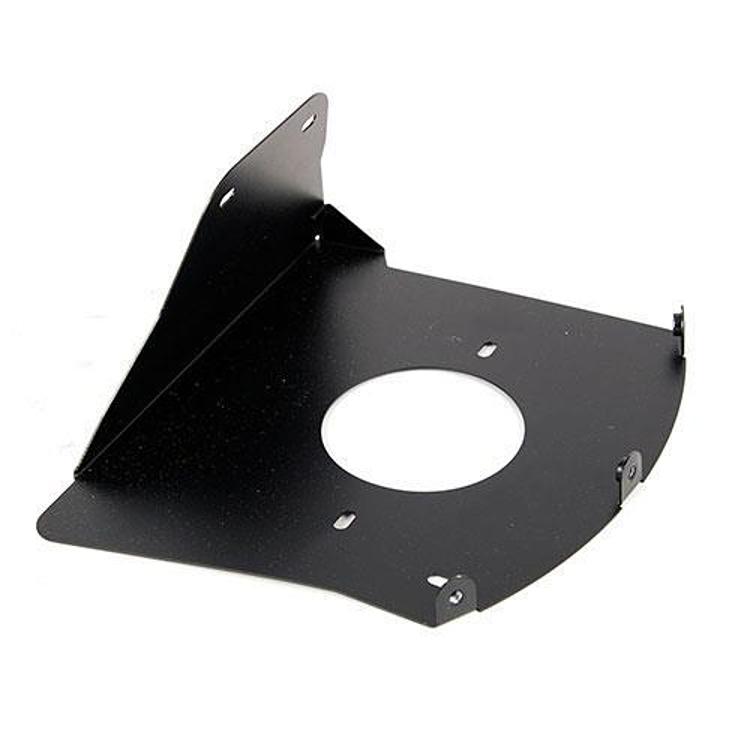

- Chrome-topped high-flow filter with a heat shield that installs into the previous air box space
- Replaces the entire factory air intake system

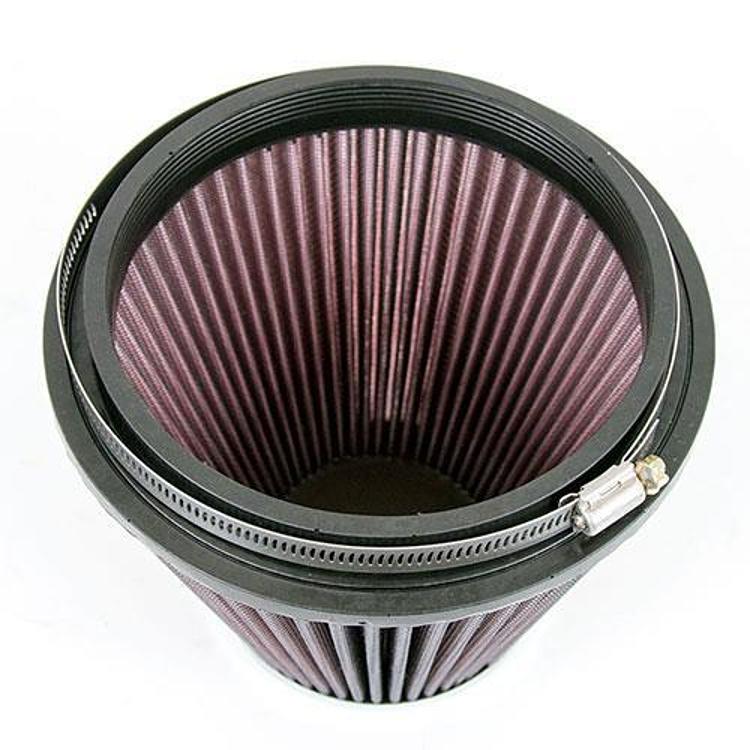

- Oversized, cone-shaped filter that is washable and reusable
- Does not void factory warranty
Wrangler trail considerations
A Wrangler JK sees mud, dust and water crossings more often than most daily drivers, so the intake setup should handle rough use. A chrome-topped filter and an aluminum tube resist wear, but the filter still collects debris and needs regular attention. Keep the filter cleaned and re-oiled, and look for dirt entering the housing after deep water or sand runs.
Heat and sound are the other factors. The tube and heat shield sit close to the engine, so check that wiring and hoses do not rub against them. Tighten clamps after the first drives, and recheck the crankcase vent hose connection, since it is routed near the intake.
- Clean the filter after off-road sessions with dust or mud
- Inspect the aluminum tube for dents after rock contact
- Check the crankcase vent hose connection after installation
Specifications
| Brand | K&N Filter |
|---|---|
| Part number | 77-1566KP |
| UPC | 70000651432 |
| Tube finish | Chrome-like aluminum |
| Filter top | Chrome |
| Filter service interval | Up to 100,000 miles, depending on driving conditions |
| Intake type | Cold air |
| Filter housing type | Partial enclosure |
| Filter type | Oil |
| Inlet tube | Included |
| Warranty | K&N Million Mile Limited Warranty |
Vehicle fitment
It is a direct fit for the 2012–2018 Jeep Wrangler JK in the 75th Anniversary, Rubicon, Sahara, Sport and Sport S trims, and for the Wrangler Unlimited JK in the same trims.
Other Wrangler generations and the earlier TJ and LJ models are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

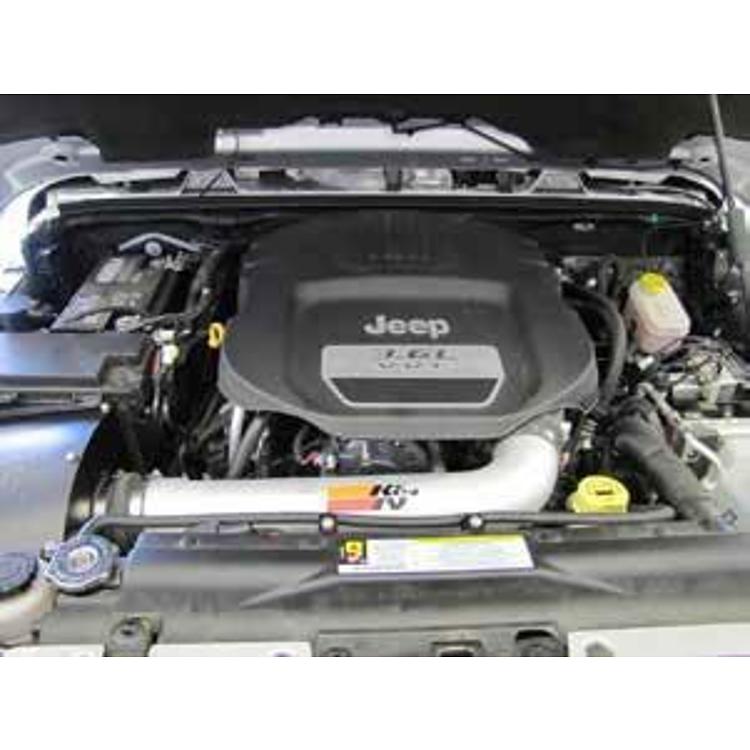

K&N lists typical installation at 90 minutes or less, using the existing factory mounting points. The tools needed are a screwdriver, a ratchet set and several wrenches. The heat shield fits into the space the old air box occupied.

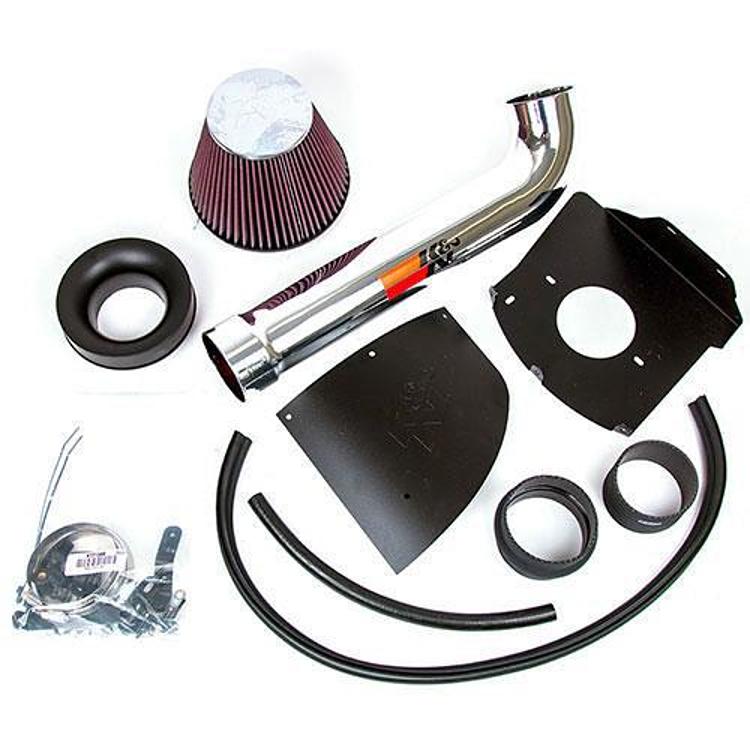

What’s included

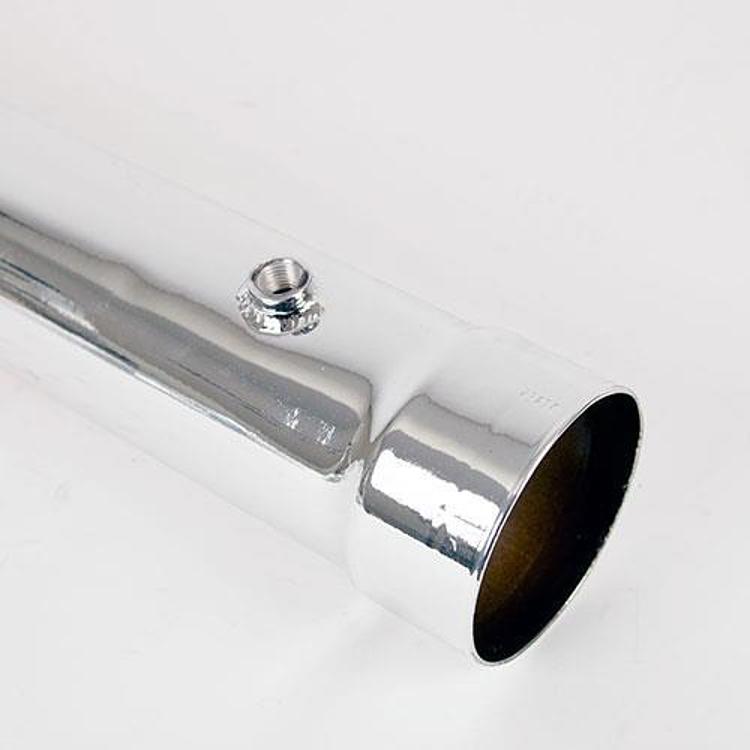

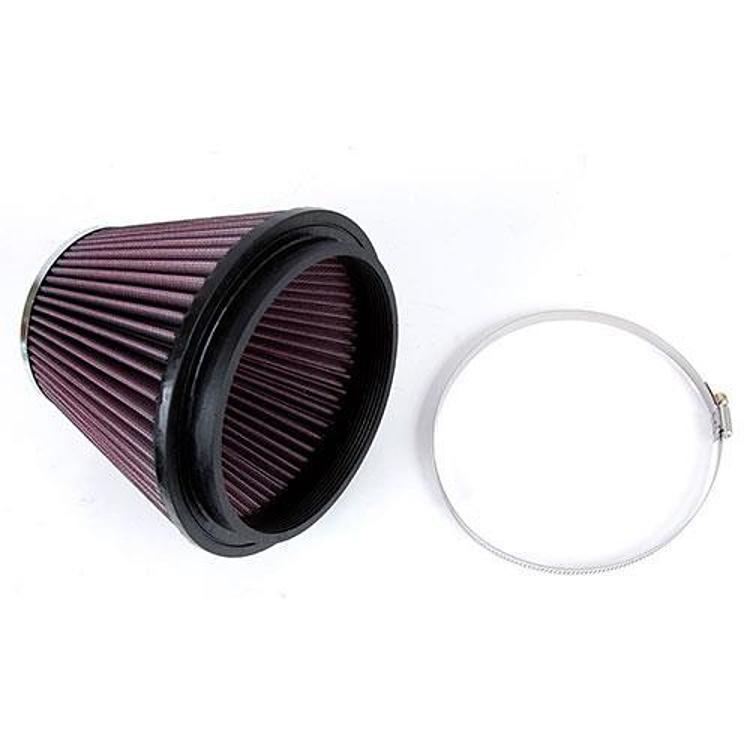

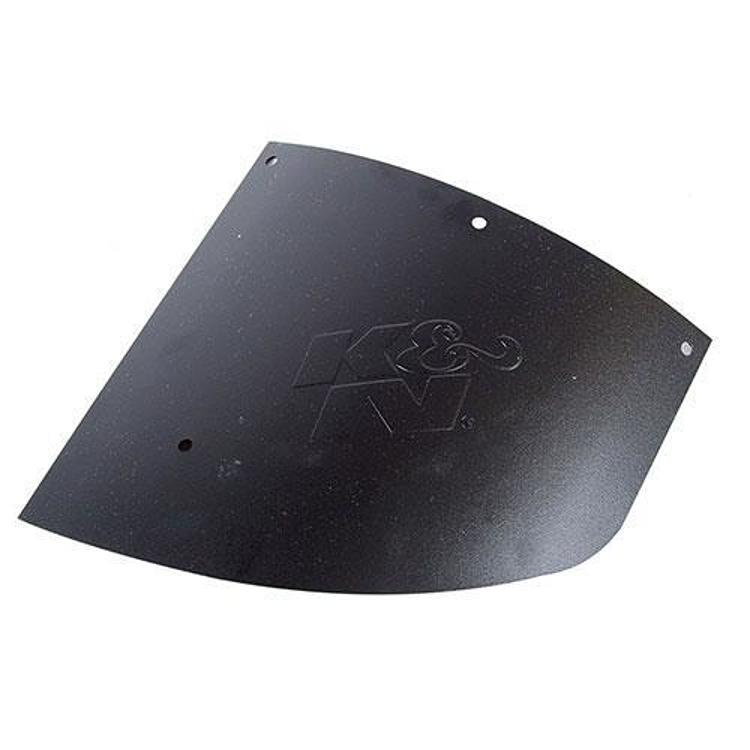

The kit includes the chrome-topped K&N high-flow air filter, the heat shield, and the aluminum intake tube. A replacement silicone crankcase vent hose is provided, and the tube accommodates the factory air temperature sensor.
