Overview
The K&N Filter 57 Series Performance Air Intake Kit, part number 57-9025, is a full enclosure cold air intake for the 2005–2014 Toyota Tacoma in Base, Pre Runner and X-Runner trims. It replaces the factory air intake system, including the restrictive air filter and air intake housing, with a K&N high-flow setup that K&N says improves throttle response and engine sound.

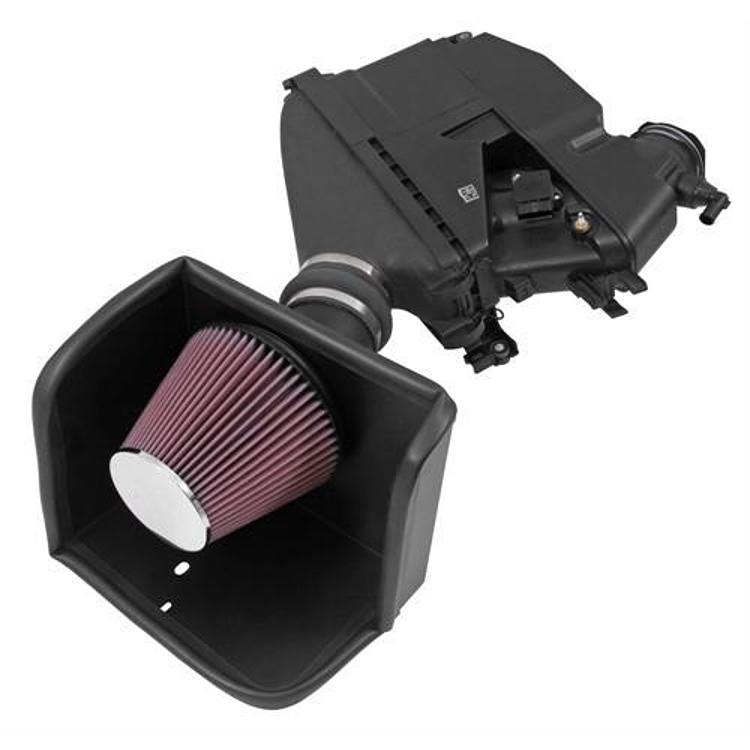

The kit uses a chrome-topped high-flow filter and a heat shield that mounts in the passenger-side engine compartment space. Air travels through an aerodynamically engineered intake tube into the original air box, and the OEM filter is removed. The oversized, cone-shaped filter can run up to 100,000 miles before servicing, depending on driving conditions.
Key features
- Full enclosure housing with cold air intake design
- Aerodynamically engineered intake tube
- Chrome-topped K&N high-flow cone-shaped air filter
- Heat shield for the passenger-side engine compartment space
- Filter can be used up to 100,000 miles before servicing, depending on conditions
- Free-flowing high density polyethylene tube
- Uses the existing factory mounting points
Tacoma intake considerations
On a Tacoma, a full enclosure intake changes the path from the front of the engine bay to the throttle body, so tube routing and heat shield placement are both worth checking. A heat shield keeps the filter area separated from hot engine parts, which helps the intake draw cooler air. Confirm the heat shield clears the battery, wiring and nearby hoses before final tightening.
Owners who drive on dusty trails or in wet weather should plan more frequent filter inspections. The oversized filter gives extra capacity, but dirt still builds up on the media and needs regular attention. Tacomas with a factory air box often have more room around the stock mounts, which makes the swap simpler.
- Route the tube clear of hot exhaust components
- Check the heat shield for rattles after install
- Inspect the filter after trail or sand driving
- Keep wiring and hoses clear of the intake tube
Specifications
| Brand | K&N Filter |
|---|---|
| Part number | 57-9025 |
| UPC | 24844361769 |
| Vehicle application | 2005–2014 Toyota Tacoma |
| Intake type | Cold Air |
| Filter housing type | Full Enclosure |
| Filter type | Oil/Dry |
| Inlet tube | Included |
| Fitment | Direct Fit |
| Filter service interval | Up to 100,000 miles, depending on driving conditions |
| CARB E.O. number | D-269-52 |
| Warranty | K&N Million Mile Limited Warranty |
Vehicle fitment
It fits the 2005–2014 Toyota Tacoma in Base, Pre Runner and X-Runner trims, so these trims are the ones to match against your truck.
Tacoma trims other than Base, Pre Runner and X-Runner, and other Toyota models, are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes

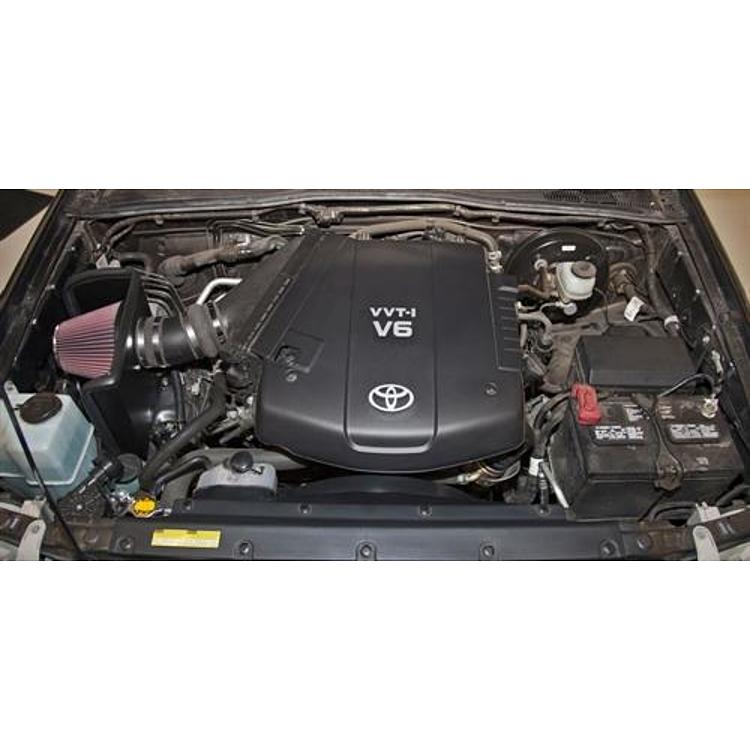

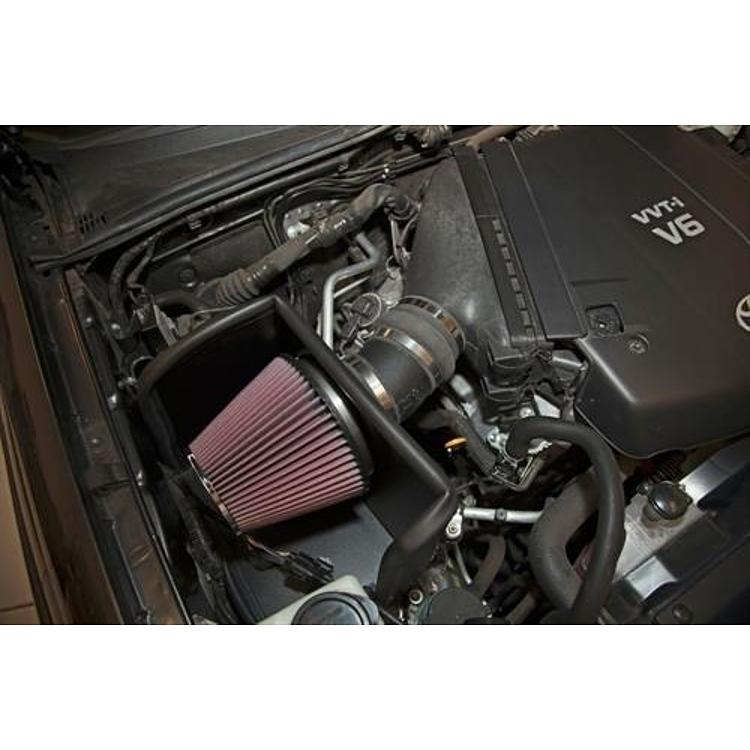

K&N says installation is relatively easy and usually takes 90 minutes or less, using the existing factory mounting points. Make sure the heat shield sits in the passenger-side engine compartment space and the intake tube is seated fully before the clamps are tightened.
What’s included

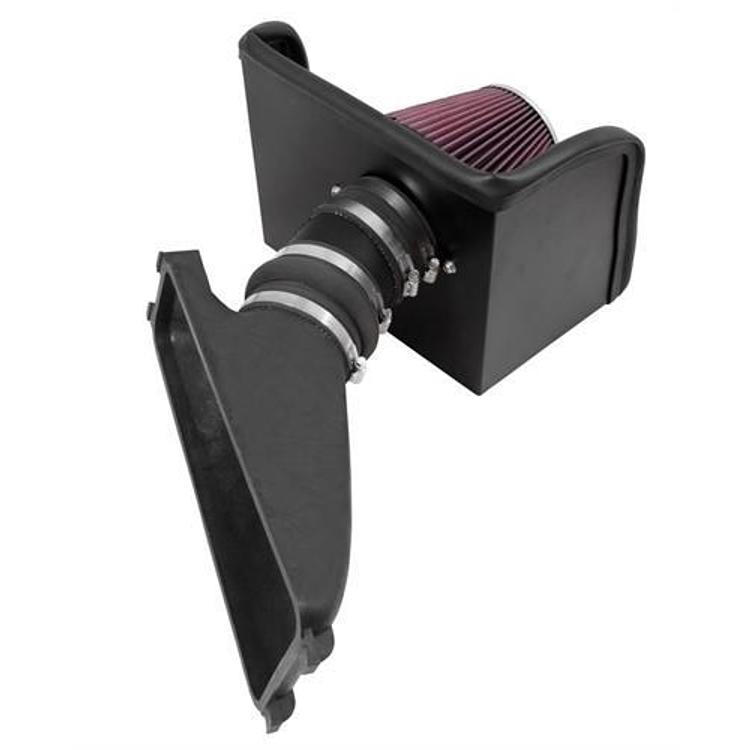

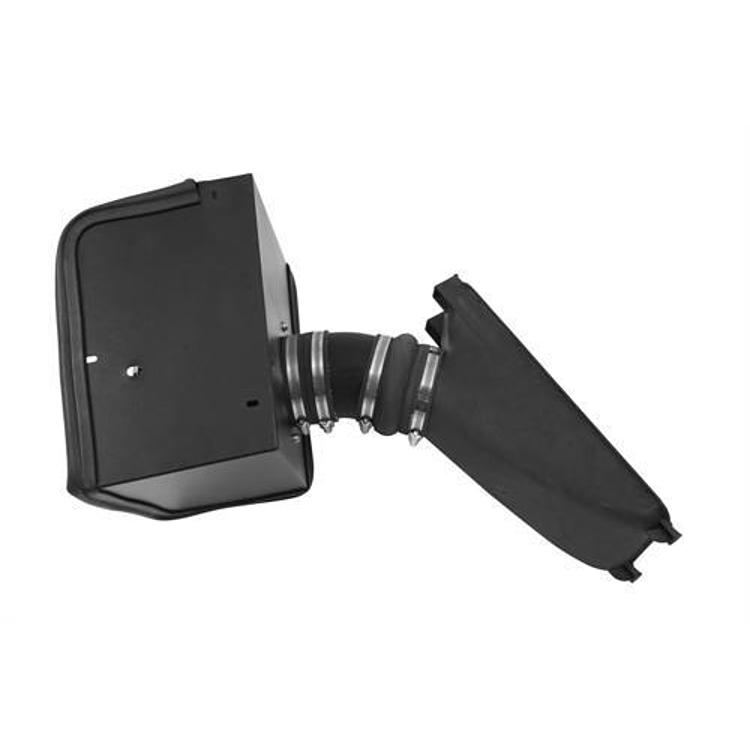

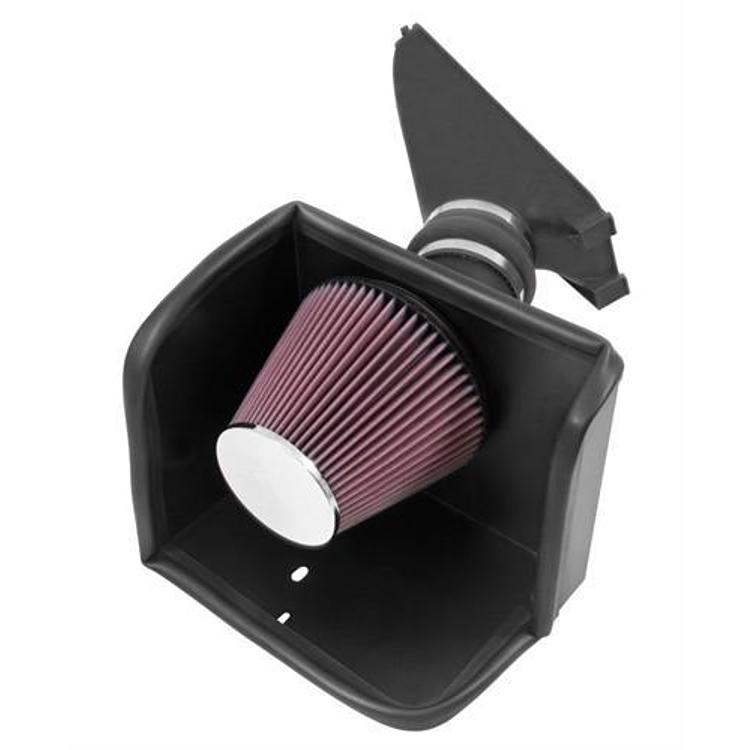

The kit includes the chrome-topped K&N high-flow air filter, the heat shield and the inlet tube.
Not included: the screwdriver, pliers, ratchet set and wrenches needed for installation.
