Overview

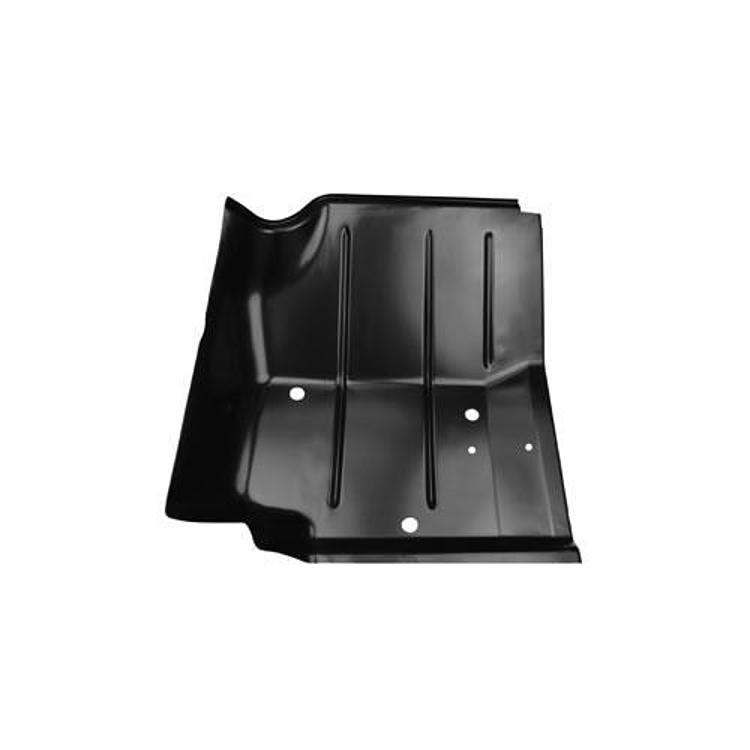

The Key Parts 0480-226R is a passenger side front floor pan for the 1987–1995 Jeep Wrangler YJ. It is a rust and collision repair panel made from high gauge steel with an OEM electro-deposit primer (EDP) finish.
Key Parts says its panels are designed to match OEM fitment and offer more coverage area than competing panels. The company describes its lineup as covering complete vehicle rust and collision areas, which is the repair use this floor pan is intended for.
Key features
- Passenger side front location
- High gauge steel construction
- OEM electro-deposit primer (EDP) finish
- Designed to match factory fit
- Intended for rust and collision repair
Floor pan repair basics
A floor pan sits under the cabin and is a common rust area on the Wrangler YJ, since water and road grit collect under the floor. Repairs usually involve cutting back to solid metal, fitting the new panel, and making sure the seams line up with the surrounding floor and frame rails. Replacement panels are typically set with a dry fit before any final welding.
Check the frame rails, crossmembers and mounting points for hidden rust before buying a panel, since replacing a floor pan does not repair damage underneath. Keep brake lines, fuel lines and wiring out of the way during cutting, and apply a rust-inhibiting coating to bare metal once the work is done. Ask a body shop to check the area if the rust extends past what you can see.
- Cut back to clean, solid metal before fitting
- Dry fit the panel and check seam alignment
- Check frame rails and crossmembers for rust
- Protect the cabin from weld spatter and sparks
Specifications
| Brand | Key Parts |
|---|---|
| Part number | 0480-226R |
| UPC | 70000700300 |
| Position | Front |
| Side | Passenger |
| Material | High gauge steel |
| Finish | OEM electro-deposit primer (EDP) |
Vehicle fitment
It fits the 1987–1995 Jeep Wrangler YJ in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
The YJ listing does not extend to the later TJ Wrangler or the Cherokee XJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the installation method before you start cutting or removing the old pan.
What’s included
One passenger side front floor pan is described. No welding materials or mounting hardware are mentioned in the Key Parts details.
