Kentrol Rust Buster Tacoma Rear Shock Mount (Driver Side) – RB7109L

Kentrol

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Driver side rear shock mount repair section for the 1995 to 2004 Toyota Tacoma
  • Kentrol Rust Buster design with an EZ Slip fit that slides onto the frame
  • Cold rolled steel, uncoated, and welding required to install
  • Part number KENRB7109L

Description

Overview

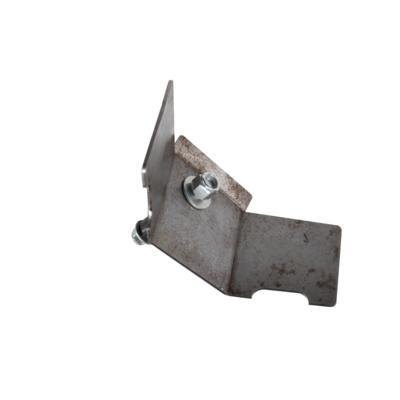

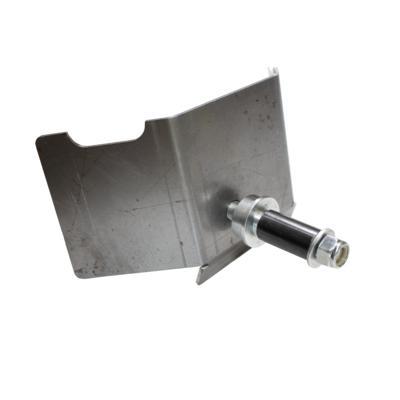

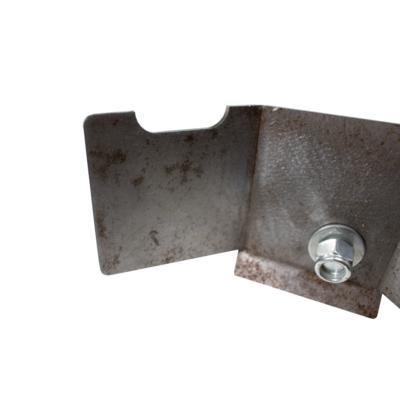

The Kentrol Rust Buster driver side shock mount, part number KENRB7109L, is a rear shock mount repair section for the first-generation Toyota Tacoma. It fits 1995 to 2004 trucks and replaces the bolt and mount that hold the rear shock on the driver side of the frame.

Kentrol developed the Rust Buster line after many customers asked it to cover the Gen 1 Tacoma. The company says its repair sections are modeled in CAD before they are laser cut, formed and finish welded, and that the EZ Slip design slides onto the frame.

The mount is made from cold rolled steel of one-eighth-inch thickness and is supplied uncoated. Welding is required to install it, so the section is a welded repair at the rear shock location rather than a bolt-on part.

Key features

  • Driver side rear shock mount repair section
  • EZ Slip design that slides onto the frame
  • Factory holes and mounting locations are included.
  • CAD modeled, laser cut, formed and finish welded
  • Cold rolled steel, uncoated

Frame prep before welding

Welded repair sections only work well when the frame underneath is sound. Before fitting, remove loose scale and rust from the area with a wire brush, and check the frame for cracks, thin metal or holes around the shock mount. If the metal is badly weakened, it should be addressed before the section is welded in place.

The section is supplied raw and uncoated, so protect it after welding. Bare steel will start to rust quickly on a truck that sees road salt, and paint or a rust-inhibiting coating should be applied once the weld is finished and cooled. Recheck the shock bolt and alignment after the first few drives, since the new mount will settle.

  • Clean weld areas to bare metal
  • Check the frame for thin or cracked metal
  • Prime and paint after welding
  • Recheck shock fasteners after the first drives

Specifications

Brand Kentrol
Product line Rust Buster
Part number KENRB7109L
Position Rear, driver side
Material Cold rolled steel, one-eighth-inch thickness
Finish Uncoated
Installation Welding required
Fitment type Direct fit
Vehicle Toyota Tacoma, 1995 to 2004

Vehicle fitment

It fits the 1995 to 2004 Toyota Tacoma in the Base, DLX, Limited, Pre Runner, S-Runner and SR5 trims.

The 2005 and later Tacoma generations are not on the list, and the passenger side mount is a separate part. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires welding. The section is supplied raw and uncoated, so any corrosion protection or paint will need to be applied after the section is welded in place.

What’s included

The product is the driver side shock mount repair section. Check the section and hardware against your installation plan, including the shock absorber and bolts.

Fitment

VehicleYearsTrims
Toyota Tacoma1995–2004Base, DLX, Limited, Pre Runner, S-Runner, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the KENRB7109L fit a 2005 or newer Tacoma?

No. It fits 1995 to 2004 Toyota Tacoma models, so later generations are not covered. Confirm fit for your truck's year before choosing this repair section.

Is this mount for the driver side or the passenger side?

The driver side. The product is a driver side rear shock mount section, so a passenger side repair needs its own section.

Does installing this shock mount require welding?

Yes. Welding is required to install the section. Each section is modeled, cut, formed and finish welded before sale, but it still has to be welded to the frame on the truck.

What should I check before welding the mount to the frame?

Check that the frame around the shock mount is solid, with no cracks or thin spots. Clean the contact areas to bare metal, and confirm the section sits square against the frame before tacking it in place. Welding skill matters, so a qualified welder is a good choice.
