Overview

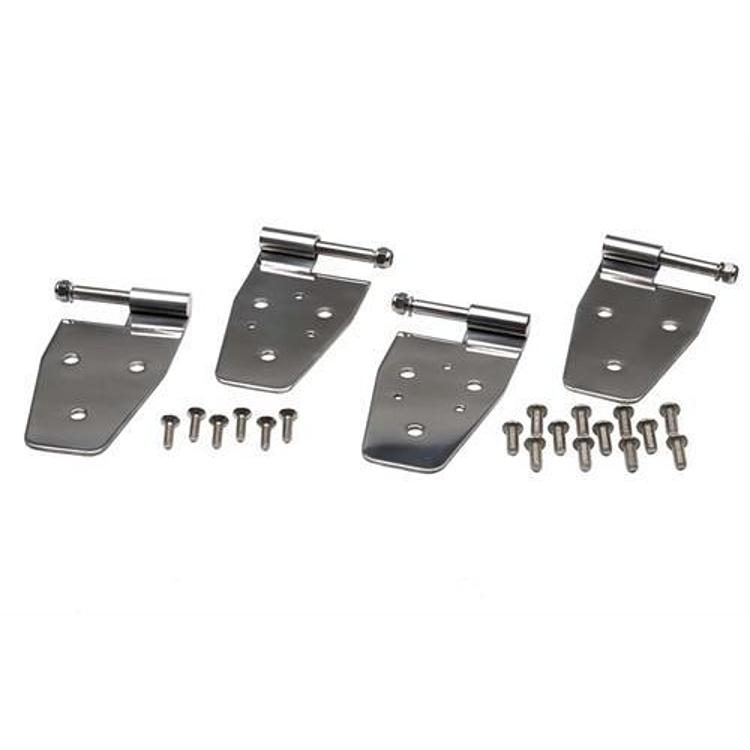

The Kentrol Half Door Hinge Set, part number 30441, is a stainless steel hinge set for half doors on the 1987–1995 Jeep Wrangler YJ, the 1997–2006 Jeep Wrangler TJ and the 2004–2006 Jeep Wrangler LJ. The hinges fit the factory mounting locations, so Kentrol says no drilling is required.
The hinges will not work on fiberglass half doors. The set has provisions for mounting factory mirrors, and it fits full steel doors on the 1997–2002 Wrangler TJ.
The hinges are made from stainless steel, and the set includes stainless steel hardware. Kentrol’s description limits the set to half doors, so check your door type before ordering.
Key features
- 304 grade stainless steel, which Kentrol says will not rust
- Fits factory mounting locations with no drilling
- Provision for mounting factory mirrors
- Stainless steel hardware for the set
Choosing a half door setup
A half door cuts the lower part of the door from the vehicle, leaving the upper section and a frame that keeps the rest of the Jeep open. Hinges carry the weight of the door, so they take repeated load every time the door opens and closes. Good hinge alignment keeps the door from rubbing the body and reduces strain on the hinge pins.
Before choosing a set, check the door type and the frame it attaches to. Stainless hinges resist corrosion well, but the mounting bolts and the surrounding frame still need inspection. Look for cracks around the mounts, loose fasteners and worn pin holes. Keep the pivot points clean and lightly lubricated to help the door swing freely.
- Check hinge pins and mounts for play
- Inspect the frame around the hinge mounts for cracks
- Lubricate pivot points to reduce wear
Specifications
| Brand | Kentrol |
|---|---|
| Part number | 30441 |
| UPC | 812421020464 |
| Finish | Stainless steel |
| Material | 304 grade stainless steel |
| Hinge type | Half door hinge set |
| Mounting | Factory mounting locations, no drilling required |
Vehicle fitment
It fits the 2004–2006 Jeep Wrangler LJ, the 1997–2006 Jeep Wrangler TJ and the 1987–1995 Jeep Wrangler YJ.
Not for fiberglass half doors, and the fit list does not include the 2007 and later JK Wrangler. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Stainless steel hardware for the set.
