Overview

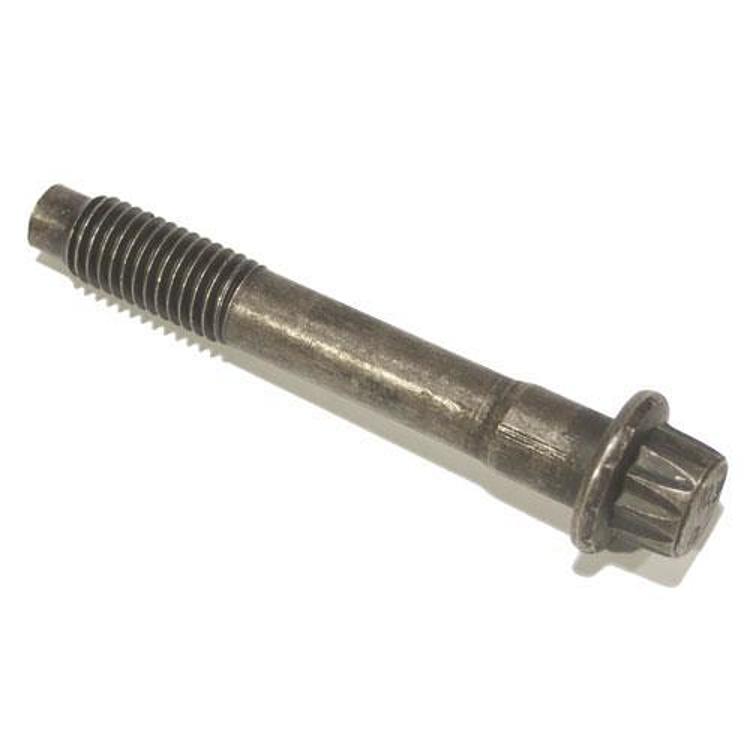

The Jeep 5012436AB is a wheel hub attaching bolt that holds the hub assembly to the steering knuckle. It is a direct fit for 2 or 4 door models, and three bolts are needed per assembly.
Because this bolt secures the hub-to-knuckle connection, confirm the match to your Jeep’s year, model and trim before buying.
Key features
- Attaches the hub assembly to the steering knuckle
- Three bolts required per assembly
- Direct fit for 2 or 4 door models
- Jeep part number 5012436AB
Working on the hub connection
The hub-to-knuckle bolts take a steady load during driving, and they can loosen if the mating surfaces are dirty or rusted. When you remove the old set, check each hole for corrosion or thread damage and clean the hub face with a wire brush. A hub that does not sit square on the knuckle will put uneven stress on every bolt in the group.
Replace the whole set when one bolt shows stretching, a rounded head, or cracks at the shank, since the others have usually seen the same loads. Keep the bolts in a labeled tray so they go back to their original positions. Good lighting and a clean work area make it easier to spot early wear. Retorque after the first few drives and inspect the hub for play or noise on a short test run.
Specifications
| Brand | Jeep |
|---|---|
| Part number | 5012436AB |
| UPC | 70000631297 |
| Part type | Wheel hub attaching bolt |
| Application | Hub assembly to steering knuckle |
| Bolts required per assembly | 3 |
| Fitment type | Direct fit |
Vehicle fitment
Year and model fitment is unknown for this bolt. It is a direct fit for 2 or 4 door models.
Make sure the year, model and trim of your Jeep match the bolt before ordering.
What’s included
The package covers a single hub attaching bolt. Three bolts are needed per assembly. Check the package contents against your installation before starting.
