Hub-Bearing to Knuckle Bolt

Omix-Ada

$8.29In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mounts the front unit bearing to the steering knuckle
  • Fits 1987–1995 YJ, 1997–2006 TJ and 2004–2006 LJ Wrangler
  • Sold individually: 6 needed, 3 per side; replaces OE 34201535

Description

Overview

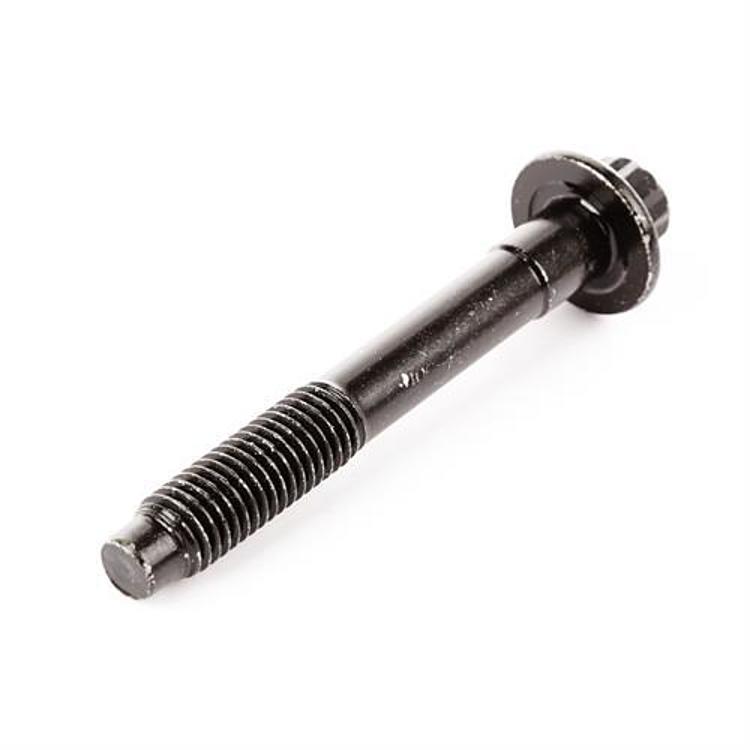

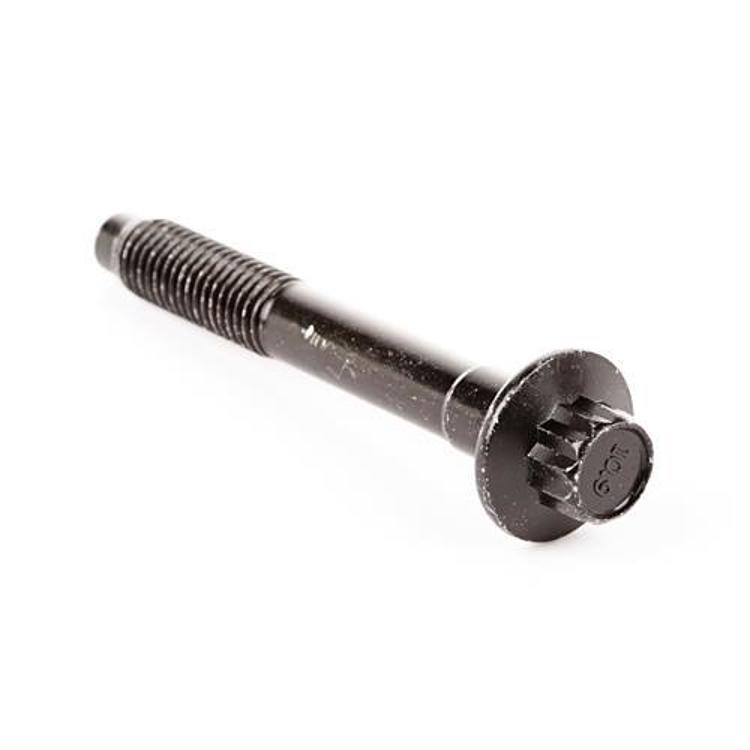

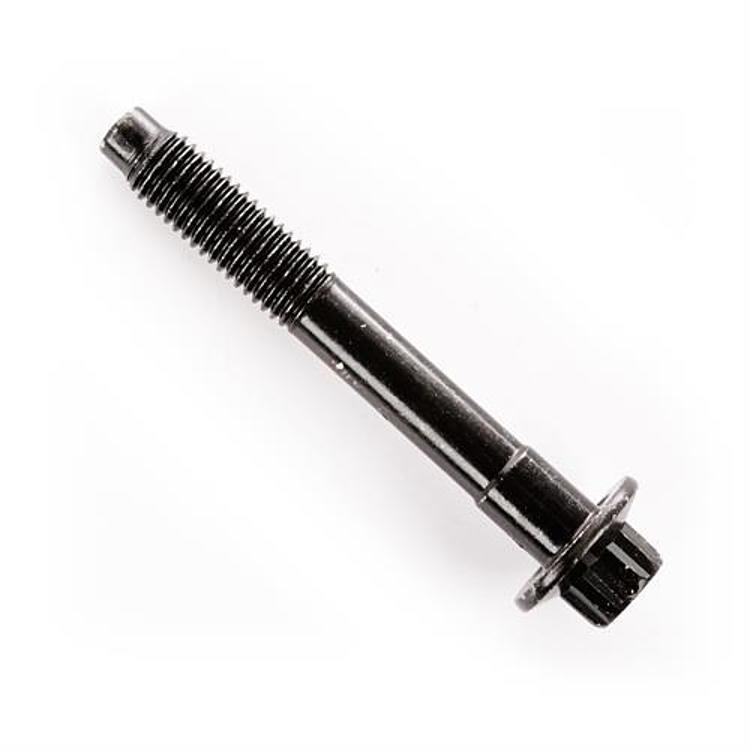

The Omix-ADA 16560.61 is a hub-bearing to knuckle bolt for the 1987–1995 Jeep Wrangler YJ and 1997–2006 Wrangler TJ, used to mount the front unit bearing to the steering knuckle.

Omix-ADA says its replacement parts meet or exceed OE standards. This bolt replaces OE number 34201535 and is sold individually, so a vehicle needs six, three on each side.

It fits 1987 to 2006 Wrangler, Rubicon and Unlimited models, including the 2004–2006 Wrangler Unlimited (LJ).

The unit bearing on these Wranglers bolts to the knuckle, so the three bolts on each side hold the front hub bearing in place. Confirm length, thread and grade against the OE cross-reference 34201535 before installing. Rubicon and Unlimited models are covered alongside the standard Wrangler. Buying six covers both front wheel ends in one job.

Key features

  • Mounts the front unit bearing to the steering knuckle
  • Replaces OE 34201535
  • Sold individually
  • Six bolts per vehicle, three per side
  • Direct fit
  • Designed to meet or exceed OE standards

Front hub bearing basics

A hub-bearing bolt clamps the front hub bearing to the steering knuckle, so its job is to hold that assembly steady under load. A loose or stretched bolt can cause wheel wobble, a clicking or knocking noise, or heat at the hub after a drive. Because the bolts work together, a problem in one often shows up as wear on the others.

When installing new bolts, clean the threads and bolt holes and check the knuckle face for damage or debris. Tighten to the factory torque and recheck after the first few drives. Replacing the full set on one wheel end at the same time is a common approach, since a worn bolt can leave the rest carrying extra load.

  • Clean threads and holes before fitting
  • Check the knuckle face for damage
  • Recheck torque after the first drives

Specifications

Brand Omix-Ada
Part number 16560.61
UPC 804314293741
Part type Hub-bearing to knuckle bolt
Replaces OE part 34201535
Sold as Individual bolt
Quantity needed 6 per vehicle (3 per side)

Vehicle fitment

It fits three Wrangler generations:

  • 2004–2006 Jeep Wrangler (LJ) (Unlimited, Unlimited Rubicon)
  • 1997–2006 Jeep Wrangler (TJ) (65th Anniversary Edition, Rubicon, SE, Sahara, Sport, X)
  • 1987–1995 Jeep Wrangler (YJ) (Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport)

Only the Wrangler YJ, TJ and LJ are listed. The Wrangler JK and the Cherokee, Comanche and Grand Cherokee models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Since the bolt comes singly, buy enough for the job: six restores both front wheel ends. Use the torque value in the factory manual for your Wrangler, as Omix-ADA gives none.

What’s included

One bolt, part number 16560.61.

Not included: the five additional bolts needed for a complete vehicle set, bearings and seals.

SKU: OAI16560.61 Category:

Specification

Shipping weight 0.25 lbs
Package dimensions 4.00 × 1.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How many 16560.61 bolts does a Wrangler need?

Six. Omix-ADA sells the bolt individually and says six are required per vehicle, three on each side, for the front unit bearings.

Which OE part does the 16560.61 replace?

It replaces OE part number 34201535, the Jeep hub attaching bolt, so the two numbers can be cross-referenced when comparing parts.

Which Wranglers use the 16560.61?

The 1987–1995 Wrangler YJ and 1997–2006 Wrangler TJ are covered, along with the 2004–2006 Wrangler LJ, so all three generations fit.

Should all front hub bolts be replaced together?

Often yes. Hub bolts are usually replaced as a full set on the same wheel end, since a stretched or damaged bolt can loosen the rest. Clean the threads and hole faces before fitting new bolts, then check the torque after the first drive.
