Overview

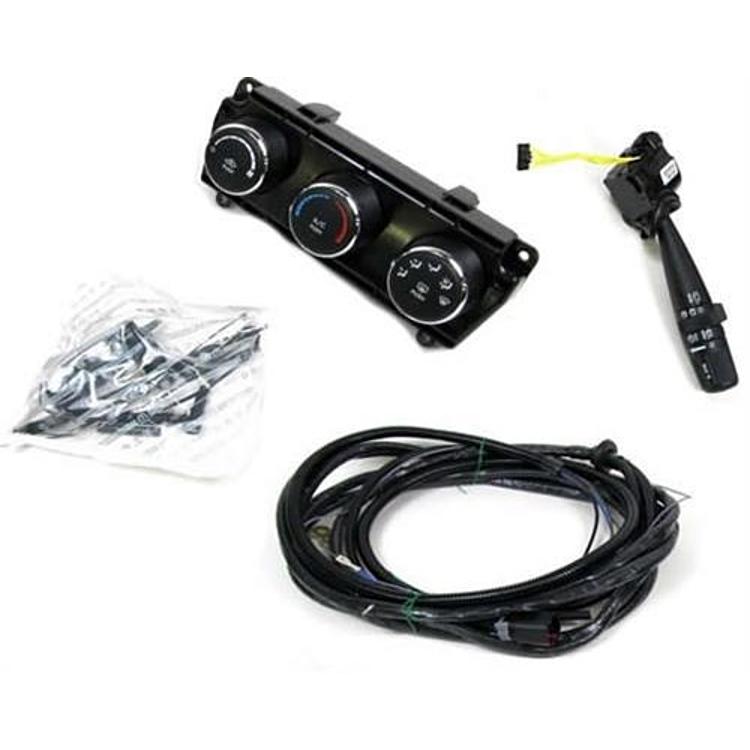

The Jeep hardtop switch and wiring kit, part number 82214392, lets owners of a soft top Jeep add the electrical features of a Mopar hardtop. It is built around a multifunction switch for the rear wiper and a wiring harness to connect the hardtop functions.
The kit comes as universal fit, so the match to your vehicle depends on your own setup. It supports owners converting a soft top Jeep to a Mopar hardtop.
Key features
- Multifunction switch controlling the rear wiper
- Wiring harness to connect the hardtop electrical features
- Installation CD in the kit
- Built to match the features of a factory hardtop
- Requires cutting and splicing during installation
Splicing and checking the harness
Splicing into existing wiring is the main work in this kit, so plan for it as a full job rather than a quick add-on. Start by mapping the circuits you will touch, using a multimeter to confirm which wire carries which signal. Guessing at wire colors is a common cause of a rear wiper that will not respond.
Make each joint with a secure crimp or solder, then cover it with heat shrink tubing. Keep joints out of the hinge path and away from sharp edges, and use loom or zip ties to support the harness so it does not pull on connectors when the hardtop is lifted. Leave a little slack at each connection.
Once everything is joined, run a complete function check before the interior is put back together. Test the rear wiper, the switch and any hardtop functions, and watch for flickering or intermittent response. Fixing a bad splice now is far easier than pulling trim off later.
- Map existing wires before cutting
- Crimp or solder every connection
- Cover joints with heat shrink tubing
- Run a full function test first
Specifications
| Brand | Jeep |
|---|---|
| Part number | 82214392 |
| UPC | 700007599401 |
| Fitment type | Universal fit |
| Components | Multifunction rear wiper switch, wiring harness, installation CD |
Vehicle fitment
It is universal fit and is intended for a soft top Jeep that is being converted to a Mopar hardtop. Check your model year and soft top setup before buying.
Other Jeep models are not confirmed for part 82214392. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Splicing into the existing wiring is part of the job, so allow time for it and disconnect the battery first.
What’s included
Multifunction rear wiper switch, wiring harness and installation CD.
Not included: the Mopar hardtop itself, which the kit is meant to accompany.
