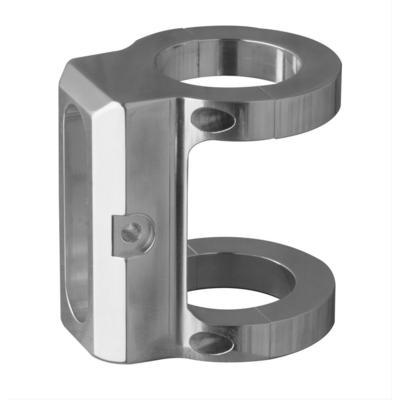

H3R Performance Fire Extinguisher Quick-Release Billet Bracket (Polished) – BMR10P

H3R Performance

Shop H3R Performance Fire Extinguisher on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Polished quick-release billet extinguisher bracket
  • Part number H3RBMR10P, extinguisher mount
  • Band clamps for 1.0, 1.4 and 2.5 lb. extinguishers, depending on mount style
  • Universal fit listed; mount style not named in title

Description

Overview

The H3R Performance H3RBMR10P is a polished quick-release billet bracket for mounting a fire extinguisher. It offers flat surface and roll bar mount options, and each uses its own band clamp.

Clamp and mount come as a matched pair, so select the band clamp size before the mount style.

Key features

  • Polished finish
  • Quick-release billet construction
  • Flat surface and roll bar mount options
  • Band clamps for 1.0, 1.4 and 2.5 lb. extinguishers
  • Universal fit listed

Matching clamp and mount

A flat surface mount and a roll bar mount use the bracket differently, so the mounting spot decides the setup before anything is bolted down. Flat surface installs fasten to a level panel or plate, while roll bar installs clamp around a tube. Check the surface for clearance around the extinguisher and make sure the bracket sits where the release can be reached quickly.

Band clamps are sized to the extinguisher, so a 2.5 lb. unit needs a different clamp from a 1.0 lb. unit even when the bracket looks the same. Replace a clamp that has stretched, cracked or lost its grip, and keep the bolts snug so the bracket cannot rotate on the tube. Tubing that is dented or flattened may not hold a clamp well, so inspect it before mounting.

  • Confirm the extinguisher size before selecting the clamp
  • Check the mounting surface for clearance around the release
  • Tighten band clamp bolts and recheck them after rough driving

Specifications

Brand H3R Performance
Part number H3RBMR10P
Finish Polished
Mount category Extinguisher mount
Compatible band clamp sizes 1.0 lb., 1.4 lb. and 2.5 lb. (depends on mount style)

Vehicle fitment

It is a universal fit bracket, so no make, model or year applies. Confirm the mount style and tubing size for your roll bar before choosing a mount.

Verify fit against your vehicle’s year, model and trim before you order. Check the mounting surface on your vehicle before choosing a flat surface or roll bar mount.

Installation notes

Choose the band clamp size for your extinguisher first. Flat surface mounts and dual clamp roll bar mounts take the 2.5 lb. clamps, while the 1.0 and 1.4 lb. clamps go with flat surface and single clamp roll bar mounts.

What’s included

Hardware and clamps are not included with the bracket.

Not included: the fire extinguisher and the band clamps, which are needed separately.

Questions & Answers

Which band clamp goes with the H3RBMR10P?

The band clamp depends on the mount style. 2.5 lb. clamps pair with flat surface and dual clamp roll bar mounts, while 1.0 and 1.4 lb. clamps pair with flat surface and single clamp mounts.

Is this bracket vehicle-specific?

No. It is a universal fit bracket, so no make, model or year applies. Check the roll bar or mounting surface on your vehicle before choosing a mount style.

What is the part number of this polished billet bracket?

The part number is H3RBMR10P, from H3R Performance. It is a polished fire extinguisher quick-release billet bracket, and the mount style should be confirmed before choosing a band clamp.

How often should a bracket and clamp be inspected?

Inspect the bracket and band clamp at each service interval and after any hard impact. Look for loose bolts, cracks in the billet body, worn quick-release parts and any movement of the extinguisher in its mount.
