Overview

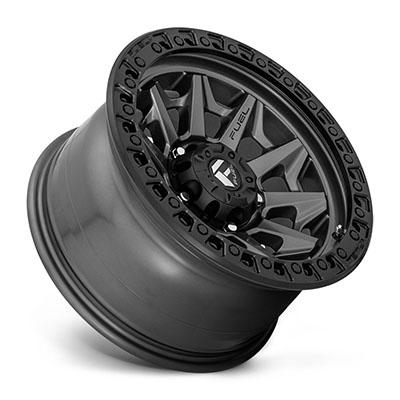

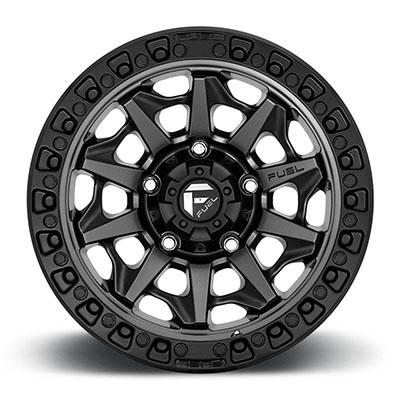

The FUEL Off-Road D716 Covert 18×9 with an 8 on 170 bolt pattern is an aluminum mesh wheel, part number MHTD71618901750, finished in Gunmetal/Black.
The 125 center bore, offset of 1 and backspacing of 5 are the figures to check against your hub and clearances. The wheel is 18 inches in diameter and 9 inches wide.
Key features
- 8 on 170 bolt pattern
- 125 center bore
- 18-inch diameter and 9-inch width
- Mesh style spokes
- Offset 1 and backspacing 5
Choosing the right hub match
An 8 on 170 pattern is a heavy duty bolt layout found on larger trucks and SUVs, and the 125 center bore must sit flush with the hub so the wheel is centered. Hub-centric fit reduces vibration, so check the hub bore against the wheel bore before relying on lug nuts alone. A wheel that is only held by bolts and not centered can shake at speed and wear the studs.
Positive offset moves the mounting face toward the front of the wheel, which pulls the tire inward toward suspension parts. Before buying tires, check how wheel width and offset affect rub on steering components, and consider overall tire diameter when choosing a size. Wheel spacers can change the effective offset but add stress to studs, so treat them as a careful decision rather than a quick fix.
- Measure the hub bore before ordering
- Test fit with lug nuts torqued before the first drive
- Re-check lug nut torque after a few miles
- Inspect studs for thread damage at each tire change
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD71618901750 |
| Series | D716 Covert |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | 1 |
| Backspacing | 5 |
| Style | Mesh |
| Finish | Gunmetal/Black |
| Construction | Aluminum |
Vehicle fitment
An 8 on 170 pattern and 125 center bore only suit hubs that match those figures, so the hub is the deciding factor for any vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 8 on 170 pattern and 125 center bore match your hub exactly. A mismatched pattern will not seat correctly, so a test fit on the vehicle is the surest check.
What’s included
Each order covers one wheel.
Not included: A tire, lug nuts and mounting hardware must be bought on their own.
