Overview

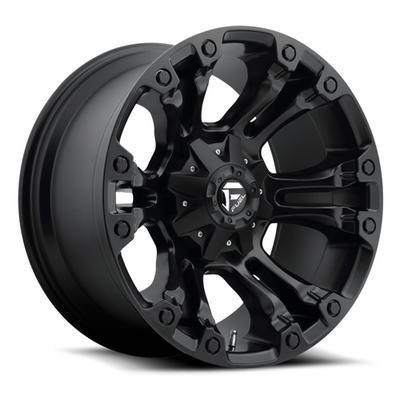

The FUEL Off-Road Vapor D560 is a 20 inch by 9 inch split spoke aluminum wheel in matte black, part number MHTD56020907057. It is drilled for two bolt patterns, 5 on 5.5 and 5 on 150, and is offered for trucks and SUVs that use one of those patterns.
Wheel fit depends on bolt pattern, center bore, offset and backspacing rather than on a vehicle name alone, so compare those figures with your hub before choosing a wheel.
Key features
- Split spoke design in a matte black finish.
- Aluminum construction in a 20 inch diameter and 9 inch width.
- Dual bolt pattern: 5 on 5.5 and 5 on 150.
- Center bore of 110, offset of 20 and backspacing of 5.8.
- FUEL Off-Road says its wheels come in many bolt pattern and offset combinations.
Choosing between two patterns
A dual pattern wheel suits hubs that match either of its two bolt patterns, but only one pattern is used on a given vehicle. Confirm which pattern your hub has before the wheel arrives, since the stud count and spacing decide whether the wheel mounts at all. A wheel drilled for two patterns will not fit a hub that matches neither.
The 110 center bore and 20 offset are the other measurements that decide fit. Offset and backspacing work together to set the wheel’s position in the well, so the tire and brake clearance should be checked with the wheel mounted before the final choice.
- Confirm the pattern your hub uses
- Measure the center bore before mounting
- Compare offset with brake clearance
- Match lug hardware to the chosen pattern
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD56020907057 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Offset | 20 |
| Backspacing | 5.8 |
| Center bore | 110 |
| Bolt pattern | 5 on 5.5 |
| Bolt pattern 2 | 5 on 150 |
Vehicle fitment
This wheel is a universal fit design with no make, model or year named. Match its bolt pattern, center bore and offset to your hub before choosing it.
Universal Fit is a general label. Match the bolt pattern (5 on 5.5 or 5 on 150), center bore of 110, offset of 20 and backspacing of 5.8 to your vehicle’s hub and wheel specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the center bore and bolt pattern before mounting, because a wheel with the wrong pattern will not seat on the hub. Confirm the hardware needed for your vehicle before installing it.
What’s included
The wheel and its specifications are the only items covered here. Not included: Tires, lug nuts and center caps are not included, so confirm them separately.
