Overview

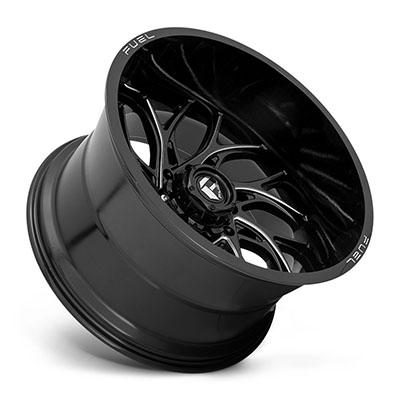

The FUEL Off-Road D741 Runner is a 24 by 14 inch aluminum directional wheel in gloss black milled finish, part number MHTD74124408445, with a 6 on 5.5 bolt pattern. It has a 106 center bore, a -75 offset and a 4.55 backspacing.
No vehicle is named for this wheel. Its 6 on 5.5 bolt pattern, 106 center bore and -75 offset are the measurements to compare against your hub, because offset controls how far the wheel sits inside or outside the fender.
Key features
- Aluminum construction with a gloss black milled finish.
- Directional style, designed to rotate in one direction.
- 6 on 5.5 bolt pattern.
- 24-inch diameter and 14-inch width.
- -75 offset and 4.55 backspacing.
- Part of the D741 Runner series.
Offset and clearance
Offset decides how far the wheel sits inside or outside the fender line. That position affects brake caliper room, suspension travel and whether the tire rubs at full steering lock. A large negative offset pushes the wheel outward, so owners who change offset often recheck fender trim and steering geometry afterward. Backspacing shows the same relationship from the inner side, which helps when judging space behind the spokes for brake parts.
Hub-centric fit is the other check. When the center bore is larger than the hub, hub-centric rings can take up the difference and help keep the wheel true. Lug-centric designs depend on the seats of the lug nuts instead. Look at how the wheel locates before mounting, and clean the hub face so the wheel sits flat.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74124408445 |
| Series | D741 Runner |
| Wheel diameter | 24 inches |
| Wheel width | 14 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -75 |
| Backspacing | 4.55 |
| Construction | Aluminum |
| Style | Directional |
| Finish | Gloss black milled |
Vehicle fitment
No vehicle is named for this wheel, so confirm the bolt pattern, center bore and offset suit your hub before mounting.
Confirm the bolt pattern, center bore and offset match your hub before choosing this wheel.
Installation notes
Directional wheels rotate one way, so mount the wheel in the orientation its design calls for. Check the 106 center bore against your hub bore before mounting, since a bore that does not match can prevent a proper fit.
What’s included
Tires and wheel hardware are not part of this wheel. Check the package contents against your installation before starting.
Not included: Tires and wheel hardware.
