Overview

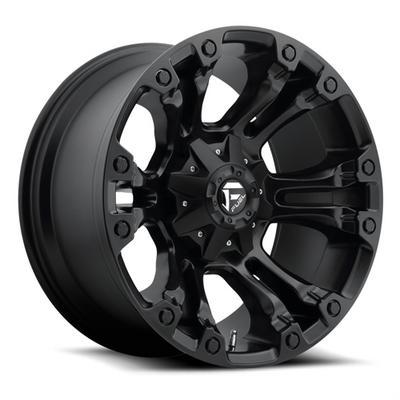

The FUEL Off-Road Vapor D560 18×9 is an 18-inch split spoke aluminum wheel in matte black, part number MHTD56018902645, offered in 5 on 4.5 and 5 on 5 bolt patterns. Its 9-inch width and offset of -12 suit trucks and SUVs running one of those two patterns.
Backspacing is 4.5 and the center bore is 78, so the hub bore on your vehicle should be measured before the wheel is mounted.
Key features
- 18-inch diameter and 9-inch width
- Split spoke design in matte black
- Aluminum construction
- 5 on 4.5 bolt pattern, with a 5 on 5 option.
Negative offset and hub bore
A -12 offset places the mounting face slightly outward from the centerline of the wheel, which changes where the tire sits in the fender and how much room the inner side has near the brakes. Pairing that offset with 4.5 backspacing gives a combined picture of clearance that is worth checking before any tire is bought. Wheels with this kind of offset are often compared against the stock wheel to see where the change will show.
The 78 center bore is the number to check first. A hub larger than the bore will not accept the wheel at all, while a bore larger than the hub usually calls for hub-centric rings. Measure both before ordering rings or a spacer.
- Measure the hub before ordering
- Check fender clearance at full lock
- Plan hub-centric rings if the bore is larger
- Keep the correct lug seat type
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD56018902645 |
| Model line | Vapor D560 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 4.5 |
| Second bolt pattern | 5 on 5 |
| Center bore | 78 |
| Offset | -12 |
| Backspacing | 4.5 |
| Construction | Aluminum |
| Style | Split spoke |
| Finish | Matte black |
Vehicle fitment
FUEL Off-Road states universal fit for this wheel, with no year, make or model given. Use the 5 on 4.5 or 5 on 5 pattern, the 78 center bore and the -12 offset to check suitability.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the center bore is 78, a hub with a larger bore needs hub-centric rings; confirm the bore before mounting.
What’s included
Lug hardware and center caps are not among this wheel’s included items, so plan to source them.
Not included: Tires are not part of this wheel.
