Overview

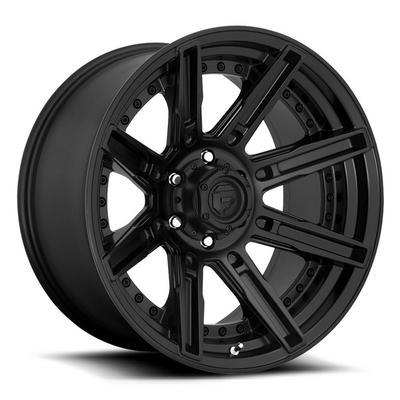

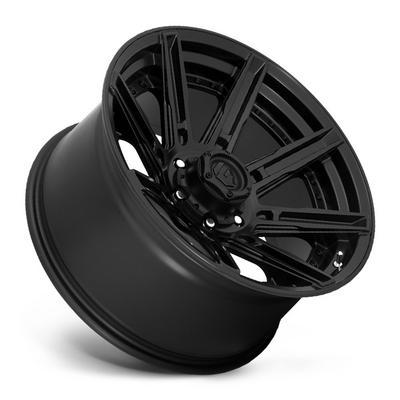

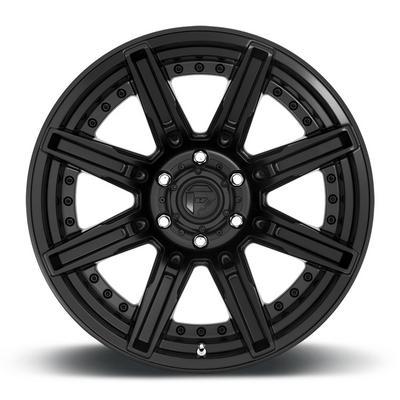

The FUEL Off-Road Rogue D709 is a 20×9 aluminum spoke wheel with a 6 on 5.5 bolt pattern, part number MHTD70920908450, in matte black. It is intended for trucks and SUVs that run the 6 on 5.5 bolt pattern, and its offset of 1 keeps the mounting face near the wheel’s centerline.
A matte black finish combined with a 9-inch width makes this a narrower, understated option within the Rogue D709 line. The 106 center bore and 5 backspacing are the measurements to check against your hub and fender clearance, particularly when fitting larger tires.
Key features
- 20-inch diameter with a 9-inch wide rim
- 6 on 5.5 bolt pattern
- Matte black finish
- Spoke design in aluminum construction
- Offset 1, backspacing 5 and center bore 106
- Part of the FUEL Off-Road Rogue D709 line
Tire width and fender room
A 9-inch wide rim suits a narrower tire than wider wheels in the same diameter, so tire selection starts with the rim width. Tire sidewall height and tread width both contribute to how close the rubber comes to the inner fender and the steering components. Aggressive tread can measure wider than the number on the sidewall, so check the actual section width before buying.
Offset of 1 keeps the mounting face close to the centerline, which places the tire more evenly in the wheel well than a deeply offset wheel. That balance helps when the suspension compresses, but it does not remove the need to check clearance. Run the tire through full steering lock and full suspension travel while the wheel is mounted, and watch for contact with the frame, brake lines or control arms.
- Compare actual tire width with the rim width
- Check clearance at full steering lock
- Watch for contact on brake lines and control arms
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD70920908450 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Offset | 1 |
| Backspacing | 5 |
| Center bore | 106 |
| Bolt pattern | 6 on 5.5 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
The wheel is universal fit, so it is not built for one named vehicle. Compare the 6 on 5.5 bolt pattern, 106 center bore and backspacing of 5 with your own vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 106 center bore and 6 on 5.5 pattern match your hub before fitting. Because the backspacing is 5, recheck inner fender and control arm clearance at full suspension compression once the wheel is mounted.
What’s included
The wheel comes alone, without tires or lug nuts and center caps.
Not included: tires and any lug nuts or center caps.
