Overview

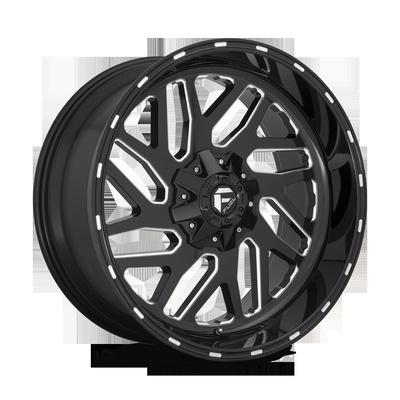

Part number MHTD58122008247 is the FUEL Off-Road Triton D581 in 22×10, a gloss black milled aluminum wheel for an 8 on 6.5 bolt pattern. Eight-lug mounting makes the bolt pattern the first check, followed by the 125 center bore and the -18 offset.
The wheel is a directional style with a 22 Inches diameter and 10 Inches width. Its 4.8 backspacing and -18 offset together position the rim relative to the hub, and both should be confirmed before the tire is chosen.
Key features
- Eight-lug bolt pattern of 8 on 6.5
- Center bore of 125
- Offset -18 and backspacing 4.8
- Gloss black milled finish on a directional style
- Aluminum construction
Directional wheels and mounting
A directional wheel has its spokes angled to rotate in one direction, so the tire must be mounted to match that rotation. Tire shops usually mark the direction arrow on the sidewall, and the wheel carries a matching arrow. Mismatched mounting can cause noise, uneven wear and handling changes at speed.
Tire size matters for both clearance and gearing. A taller or wider tire changes the space available behind the spokes and the rolling diameter the drivetrain sees. Check brake caliper room and the fender edge after mounting, and recheck once the suspension has settled under load.
- Match the tire rotation arrow to the wheel arrow
- Replace valve stems when fitting new tires
- Check caliper clearance after mounting
- Recheck tire pressure before the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD58122008247 |
| Wheel diameter | 22 Inches |
| Wheel width | 10 Inches |
| Offset | -18 |
| Backspacing | 4.8 |
| Center bore | 125 |
| Bolt pattern | 8 on 6.5 |
| Style | Directional |
| Finish | Gloss Black Milled |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
Only Universal Fit is listed, with no vehicle years attached. Use the 8 on 6.5 pattern, the -18 offset and the 125 center bore as the first checks against your own vehicle.
Confirm the stud count and bolt circle on your hub before anything else. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight studs and a 125 center bore must both match the hub. Test-fit the wheel and check clearance at full lock before driving.
What’s included
Only the wheel is covered here. Not included: tire and lug hardware.
