FUEL Off-Road Stroke D612 Wheel, 18x9 with 6 on 135/6 on 139.7 Bolt Pattern – Gloss Black with Candy Red – D61218909857

FUEL Off-Road

Shop FUEL Off-Road Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Stroke D612 wheel, 18 x 9 inches, aluminum mesh style
  • Bolt patterns listed: 6 on 135 and 6 on 139.7
  • Offset 20, center bore 106, backspacing 5.8
  • Gloss black with red finish, part number MHTD61218909857

Description

Overview

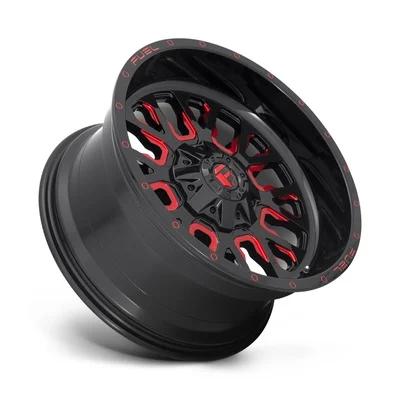

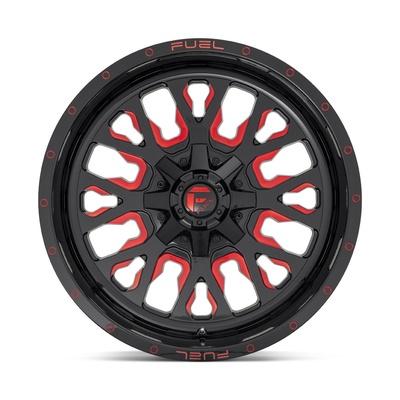

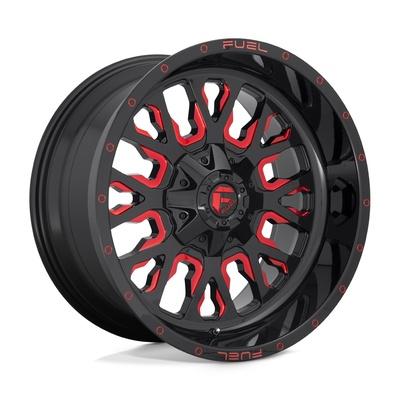

The FUEL Off-Road Stroke D612 is an 18 x 9 inch mesh aluminum wheel in gloss black with candy red. Part number MHTD61218909857 covers 6 on 135 and 6 on 139.7 bolt patterns.

The offset is 20, the center bore is 106 and the backspacing is 5.8. The finish is recorded as gloss black/red, so the color is the same across the specifications and the title.

Key features

  • Mesh style design
  • 18 inch diameter and 9 inch width
  • Gloss black and red finish
  • Aluminum construction
  • Offset 20 and center bore 106

Center bore and hub-centric rings

The center bore is the hole that sits over the hub, and it sets how well the wheel centers. When the hub is larger than the bore, a hub-centric ring fills the gap so the load goes through the hub instead of the lug studs. Rings should match the bore and hub precisely, and they are often sold separately from the wheel.

Bolt pattern and center bore must both match before any lug is tightened. A pattern that is close but not identical can seat unevenly and loosen over time. Lug hardware should suit the seat type of the wheel, and torque should be checked after the first drive and periodically afterward. Inspect the mounting face for corrosion or dents whenever the wheel is off.

  • Confirm the bolt pattern before buying
  • Check the hub bore against the center bore
  • Match lug seat style to the wheel

Specifications

Brand FUEL Off-Road
Part number MHTD61218909857
Wheel diameter 18 inches
Wheel width 9 inches
Offset 20
Center bore 106
Backspacing 5.8
Style Mesh
Finish Gloss Black/Red
Bolt pattern 6 on 135/6 on 139.7
Construction Aluminum

Vehicle fitment

The wheel carries only a universal fit label, and no make, model or year is named.

Match your hub to the 6 on 135 or 6 on 139.7 pattern and offset 20 before choosing this wheel. No close models are named. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Only the bolt pattern and center bore need to match the hub, so confirm both before tightening any lugs.

What’s included

The wheel is sold alone, so tires and lug hardware are sourced separately.

Not included: tires and lug hardware.

SKU: MHTD61218909857 Categories: ,

Questions & Answers

What is the FUEL Off-Road Stroke D612 18x9?

It is an 18 inch by 9 inch aluminum mesh style wheel with a gloss black and red finish. Part number MHTD61218909857 is listed, along with offset 20, center bore 106 and backspacing 5.8.

Does this wheel fit the 6 on 139.7 bolt pattern?

6 on 139.7 is one of the two patterns offered with this wheel, with 6 on 135 the other. Confirm which pattern your hub uses before mounting, since this wheel is not tied to a specific vehicle.

Which vehicles does this wheel fit?

This is a universal-fit wheel with no make, model or year attached. Match the bolt pattern, offset 20 and center bore 106 to your hub, and confirm fit for your vehicle before ordering.

What is the difference between a bolt pattern and a center bore?

The bolt pattern is the circle of lug holes, measured across the bolt centers. The center bore is the hole in the middle that sits over the hub. Both must match the vehicle, because the pattern carries the lug load and the bore centers the wheel.
