Overview

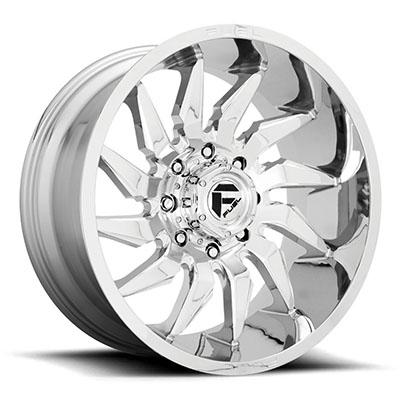

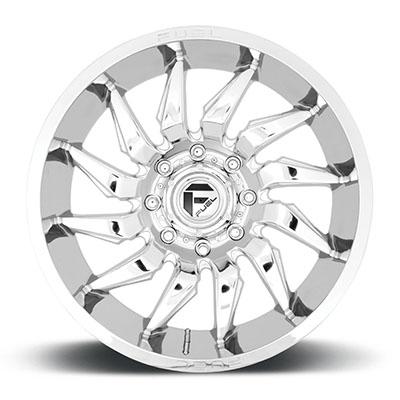

The FUEL Off-Road D743 Saber is a 20 by 9 inch aluminum directional wheel with a chrome finish, part number MHTD74320908450. It has a 6 on 5.5 bolt pattern, a 106 center bore, a 1 offset and a 5.04 backspacing.
A 1 offset sits close to the centerline of the wheel, which places the mounting face near the middle of the rim. Compare the 6 on 5.5 pattern and 106 center bore against your hub before comparing any other figure.
Key features
- 20-inch diameter and 9-inch width.
- 6 on 5.5 bolt pattern.
- 106 center bore.
- Chrome finish over aluminum construction.
- 1 offset and 5.04 backspacing.
- Saber series with directional style.
Confirming hub fit
A hub that fits a wheel needs the right pilot diameter, lug seat and bolt circle, and the center bore should sit snugly on the hub face. When the bore is larger than the hub, a hub-centric ring can help center the wheel, but it does not correct a mismatched bolt pattern. Clean the hub face and mounting surface before setting the wheel, because debris can push the wheel out of true.
Directional wheels also depend on correct orientation. Check the rotation mark, if present on the wheel, before mounting, and keep the tread pattern pointing the same way on both sides of the vehicle. Torque lug nuts in a star pattern and recheck them after the first few trips, as the wheel can settle against the hub face.
- Clean the hub face and mounting surface
- Confirm the bolt circle before mounting
- Use a hub-centric ring only when the bore calls for it
- Recheck torque after the first drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74320908450 |
| Series | D743 Saber |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 1 |
| Backspacing | 5.04 |
| Construction | Aluminum |
| Style | Directional |
| Finish | Chrome |
Vehicle fitment
No vehicle is named for this wheel, which is labeled universal fit. Bolt pattern, center bore and offset must suit one specific hub, so confirm fit for your vehicle’s year, model and trim before ordering.
Verify the 6 on 5.5 pattern and 106 center bore against your hub prior to selecting this chrome wheel.
Installation notes
Confirm the 106 center bore sits correctly on your hub before tightening any fasteners. Directional wheels also need the rotation orientation the design calls for.
What’s included
Confirm whether tires, lug nuts or caps are included before buying.
Not included: Check the package contents against your installation before starting.
