FUEL Off-Road Siege D705 Wheel, 20x9 with 5 on 5.5 Bolt Pattern – Platinum – D7052090B450

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x9 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 20×9 aluminum split-spoke wheel in platinum finish
  • 5 on 5.5 bolt pattern, offset 1, center bore 78
  • Part number MHTD7052090B450 from FUEL Off-Road
  • Universal fit; compare hub measurements first

Description

Overview

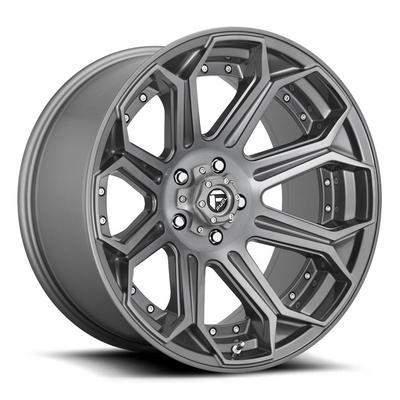

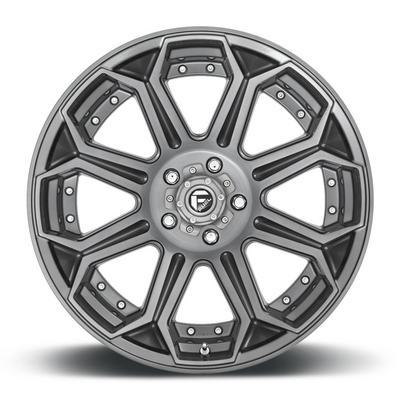

The FUEL Off-Road Siege D705 in this version is a 20×9 aluminum split-spoke wheel in platinum, part number MHTD7052090B450, built for a 5 on 5.5 bolt pattern. FUEL Off-Road gives the fitment as universal, so the wheel is not matched to a named make, model or year.

The specifications show a width of 9 Inches, an offset of 1, a center bore of 78 and backspacing of 5. The 78 center bore is smaller than the 106 bore found on some sibling Siege wheels, so the hub bore is the first measurement to confirm. FUEL Off-Road says its wheels come in many bolt pattern and offset combinations.

Key features

  • Split-spoke styling in platinum
  • Aluminum construction
  • 5 on 5.5 bolt pattern
  • 20 Inch diameter with 9 Inches width
  • Center bore 78 and backspacing 5

Why center bore matters

The center bore is the hole in the middle of the wheel that fits over the hub. A bore that matches the hub centers the wheel, so the lug nuts hold it without taking the full load. When the bore is larger than the hub, hub-centric rings are often used. Measure the hub before buying rings, and make sure they sit flush against the hub face.

A five-stud wheel on a 5.5 pattern needs all five studs in the right positions, so count and measure the spacing before mounting. Mixed patterns or worn studs can cause vibration and uneven loading. Inspect studs for bending or thread damage after the first drives, and replace any that look stretched.

  • Count the studs and measure the spacing
  • Use hub-centric rings where the bore is larger
  • Recheck lug nuts after the first drives

Specifications

Brand FUEL Off-Road
Part number MHTD7052090B450
Model Siege D705
Wheel diameter 20 Inches
Wheel width 9 Inches
Offset 1
Center bore 78
Backspacing 5
Bolt pattern 5 on 5.5
Style Split Spoke
Finish Platinum
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

FUEL Off-Road states universal fit for this wheel, so no specific vehicle is listed. The 5 on 5.5 bolt pattern and 78 center bore are the key matches to make.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the hub has five studs on a 5.5 pattern and a bore that suits the 78 center bore before mounting. Check lug nut type and seat style before buying fasteners.

What’s included

One FUEL Off-Road wheel.

Not included: Tires, lug nuts and center caps need to be sourced separately to complete the wheel setup.

SKU: MHTD7052090B450 Categories: ,

Questions & Answers

What is the Siege D705 20x9 in platinum?

It is a 20x9 aluminum split-spoke wheel from FUEL Off-Road, part number MHTD7052090B450. The bolt pattern is 5 on 5.5, the center bore is 78, the offset is 1 and the backspacing is 5.

Does this wheel match a 5 on 5.5 hub?

Only if your hub matches. The bolt pattern is 5 on 5.5, so count the studs and measure their spacing. Then check the 78 center bore and offset of 1 against your hub before choosing this wheel.

Are tires or lug nuts included?

No. Tires, lug nuts and center caps are not part of this wheel, so plan to source those parts separately.

Do I need a hub-centric ring if the bore looks close?

Check the fit with the wheel on the hub before deciding. A snug fit with no play usually means no ring is needed. If the wheel wobbles or fits loosely, a hub-centric ring can improve centering. Recheck lug nuts after installation.
