Overview

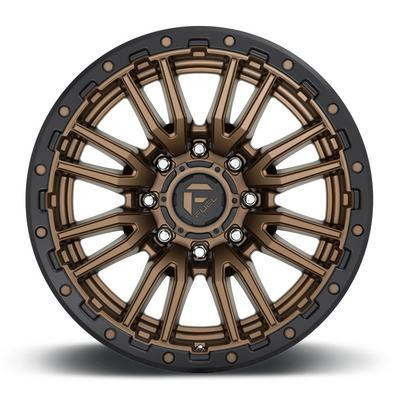

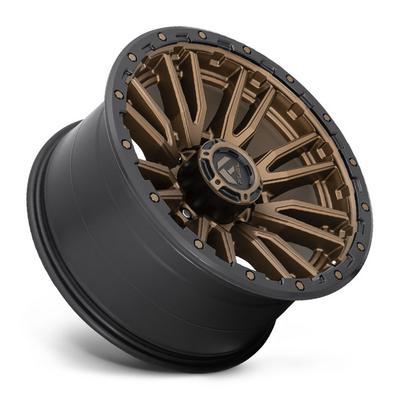

The FUEL Off-Road Rebel 8 D681 is a 22-inch by 10-inch aluminum split spoke wheel with an 8 on 6.5 bolt pattern and part number MHTD68122008247. Its bronze and black finish combines two tones. Verify the 8 on 6.5 pattern and 125 center bore against your hub before any mounting work.
A 22-inch diameter with a 10-inch width and a -18 offset is a combination whose clearance depends on the vehicle. Measure the hub and compare the 4.8 backspacing with the wheels you run now. The offset and backspacing decide how the wheel sits relative to fenders and brakes.
Key features
- Split spoke style
- 22-inch diameter and 10-inch width
- 8 on 6.5 bolt pattern
- Bronze and black finish
- Center bore of 125
- Offset of -18 and backspacing of 4.8
- Aluminum construction
Clearance for a 22-inch wheel
A 22-inch wheel leaves less sidewall for the tire, so tire choice matters for both ride and fit under the fender. Larger wheels also take more impact on the rim when the vehicle hits potholes or rocks, so a careful approach on rough trails helps protect the wheel face and lip. Before fitting, measure from the brake caliper to the inside of the wheel and confirm that the tire does not touch the suspension at full compression.
Split spoke wheels trap mud between the spokes, so rinse them after off-road trips. Check the face for cracks or bent edges after hard impacts, and look at the lug holes for any elongation that could signal hub or wheel trouble.
- Measure caliper clearance before mounting
- Check tire sidewall for rubbing at full lock
- Inspect the rim lip after hard impacts
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68122008247 |
| Model | Rebel 8 D681 |
| Diameter | 22 inches |
| Width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Offset | -18 |
| Center bore | 125 |
| Backspacing | 4.8 |
| Style | Split spoke |
| Finish | Bronze/Black |
| Construction | Aluminum |
Vehicle fitment
It is a universal fit wheel. Bolt pattern, center bore, offset and backspacing determine whether a particular hub accepts it, so check all four against your vehicle before buying.
The 8 on 6.5 pattern and 125 center bore are the two numbers to confirm first, before offset and backspacing. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Dry-fit the 22×10 wheel on your hub before tires are added, and confirm the 125 center bore matches the hub. Check the -18 offset and 4.8 backspacing against fender, brake and suspension clearance at full steering lock. Use lug hardware suited to your vehicle.
What’s included
One wheel, identified by its size, bolt pattern and bronze and black finish.
Not included: No tire, lug nut or cap is mentioned, so confirm what arrives before mounting.
