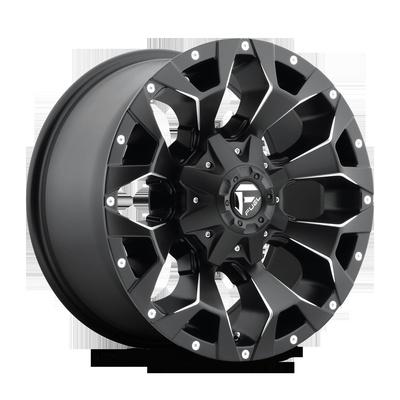

FUEL Off-Road Assault D546 Wheel, 20x10 with 8 on 180 Bolt Pattern – Matte Black Milled – D54620001847

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Assault D546 wheel, 20×10 inches, part number D54620001847
  • 8 on 180 bolt pattern, 124 center bore, offset -18
  • Mesh style with aluminum construction
  • Universal fit; match hub and verify clearance

Description

Overview

The FUEL Off-Road Assault D546 is a 20 x 10-inch aluminum mesh-style wheel, part number D54620001847, with an 8 on 180 bolt pattern and 124 center bore. The offset is -18 and the backspacing 4.8. The finish is black with milled accents, and the manufacturer classes the wheel as universal fit.

The 8 on 180 pattern is a single bolt-pattern entry rather than two forms, which keeps the hub check simple. The 124 center bore needs to be checked against your hub’s diameter, and a bore larger than the hub calls for hub-centric rings. Offset and backspacing come next, once the mounting face is confirmed.

Key features

  • Mesh spoke style
  • Aluminum construction
  • 20-inch diameter and 10-inch width
  • 8 on 180 bolt pattern with a 124 center bore
  • Offset of -18 and backspacing of 4.8

Hub-centric rings and seating

A 124 center bore is large for many hubs, so hub-centric rings are often used to center the wheel. The ring should fill the gap between the hub and the bore so the lugs only clamp the wheel rather than carry its location. Check that the ring is fully seated before setting the wheel, since a tilted ring can cause vibration.

Seating the wheel flat on the hub matters as much as the center bore. Clean the hub face and the wheel seats before mounting, and remove any rust or paint that could hold the wheel off the hub. Tighten the lugs in a star pattern, then recheck after the first few miles of driving.

  • Clean the hub face before mounting
  • Use rings sized to the hub
  • Retorque after the first drives

Specifications

Brand FUEL Off-Road
Part number D54620001847
Style Mesh
Construction Aluminum
Wheel diameter 20 inches
Wheel width 10 inches
Bolt pattern 8 on 180
Center bore 124
Offset -18
Backspacing 4.8
Finish Black/Milled
Fitment Universal fit

Vehicle fitment

This wheel has no named year, make or model. Match the 8 on 180 bolt pattern and 124 center bore to your hub first, then check offset and backspacing for your vehicle.

A negative offset in a 10-inch width can change fender and suspension clearance, so fit must be verified on the vehicle itself.

Installation notes

Confirm the wheel seats flat on the hub with the bore fully over the hub face. Use hub-centric rings if the bore is larger than the hub, and tighten the lug nuts in a star sequence after the first pass.

What’s included

Only the wheel is covered. Lug nuts, center caps and tires are not included, so plan to source them separately.

Not included: tires and wheel hardware.

SKU: MHTD54620001847 Categories: ,

Questions & Answers

What is part number D54620001847?

It is the FUEL Off-Road Assault D546 20x10 wheel with an 8 on 180 bolt pattern, 124 center bore, offset -18 and backspacing 4.8. The finish is black with milled accents, and the wheel is aluminum mesh style.

Is this wheel made for a particular truck?

No specific truck is named for this wheel. It is universal fit, so check the 8 on 180 bolt pattern and 124 center bore against your hub before comparing offset and backspacing.

Are center caps or lug nuts included?

Lug nuts and center caps are not included with the wheel. Tires and wheel hardware need to be sourced before mounting.

How do hub-centric rings work with a large center bore?

Hub-centric rings fill the gap between a wheel's center bore and a larger hub, so the hub centers the wheel instead of the lugs. Choose rings sized to your hub and confirm each ring seats fully before mounting.
