Overview

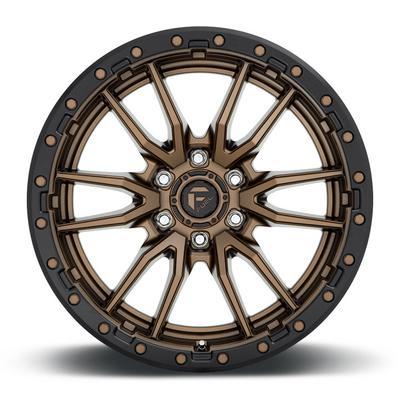

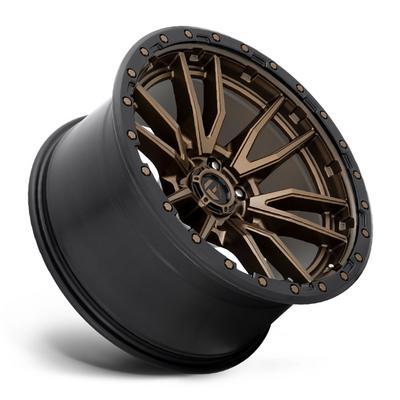

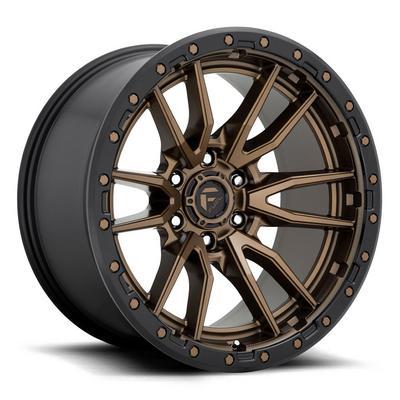

The FUEL Off-Road Rebel 6 D681 in 18 by 9 inches, part number MHTD68118908950, is a split spoke aluminum wheel built for a 6 on 135 bolt pattern. Its offset is 1 and its backspacing is 5, which set how the wheel sits relative to the hub and the mounting surface.
The bronze and black finish is paired with a center bore of 87. Because offset changes how far the wheel sits in the wheel well, compare this offset of 1 with the wheel now on your vehicle before mounting.
Key features
- Split spoke design
- Aluminum construction
- Bronze/Black finish
- 18 by 9 inch size
- 6 on 135 bolt pattern
- Offset 1 with backspacing 5
Choosing a low offset
Offset changes how the wheel sits relative to the hub, and that affects steering geometry as well as clearance. Moving the mounting face inward or outward shifts where tire forces travel through the hub, which can alter steering feel and tire wear. A low offset also pushes the tire toward the fender, so tire width and suspension height become part of the decision.
When choosing a replacement, keep the offset close to the original wheel where possible, and compare backspacing as well. Check the hub bore, bolt pattern and lug seat before ordering. After mounting, test steering lock and suspension travel, look for rubbing, and recheck lug nut torque after the first few miles of driving. Inspect the spokes and bead seat after rough trail use.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68118908950 |
| Model code | D681 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Offset | 1 |
| Center bore | 87 |
| Backspacing | 5 |
| Style | Split spoke |
| Finish | Bronze/Black |
| Construction | Aluminum |
Vehicle fitment
Year, make, model and trim are not tied to this wheel, so the model year cannot be established from the wheel alone. Use the 6 on 135 bolt pattern, 87 center bore and offset of 1 as your checklist against the hub, brake caliper and fender.
A wheel with a different bolt pattern will not mount on a 6 on 135 hub, and a changed offset can cause tire rubbing. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit the wheel on the hub with the 87 center bore seated before any lug nut goes on, because a mismatched bore will not center it. Tighten the nuts in a star pattern and recheck them after the first few miles of driving.
What’s included
Before installation, verify whether lug nuts, caps and valve stems are needed for your setup.
Not included: Tire.
