Overview

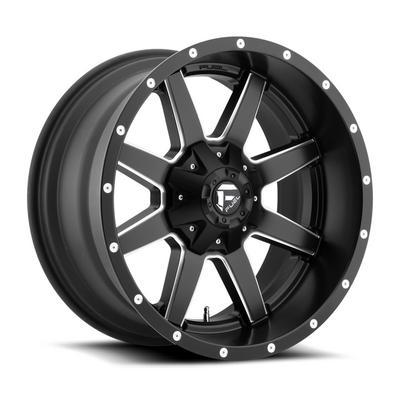

The FUEL Off-Road Maverick D538 is a 20 x 9 inch matte black milled aluminum spoke wheel with a 6 on 135 bolt pattern, part number MHTD53820909850.
Check the 6 on 135 pattern against your hub before anything else. Offset is 1, center bore is 106 and backspacing is 5.
Key features
- 20-inch diameter and 9-inch width
- 6 on 135 bolt pattern
- Matte Black Milled finish
- Spoke style
- Aluminum construction
Checking bolt patterns
Bolt pattern is the distance across the lug holes, and it must match the hub exactly. For a six-lug hub, measure from the center of one hole straight across to the opposite hole, which gives the pitch circle diameter. Compare that figure with the pattern before choosing a wheel, because near-matches can seat unevenly and damage studs.
A matching bolt pattern is only part of the check. The center bore should suit the hub so the wheel is centered rather than held by the studs alone. Use a clean, flat hub surface, confirm the lug seat type, and recheck torque after the first drive.
- Measure the pitch circle across opposite holes
- Confirm the center bore
- Match the lug seat type
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD53820909850 |
| Style | Spoke |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Offset | 1 |
| Backspacing | 5 |
| Center bore | 106 |
| Bolt pattern | 6 on 5.5/6 on 135 |
| Bolt pattern (second entry) | 6 on 135 |
| Finish | Matte Black Milled |
| Construction | Aluminum |
| Universal fit | Universal Fit |
Vehicle fitment
A vehicle-by-vehicle list is absent for this wheel. Universal fit is the stated category, so the 6 on 135 pattern, offset 1 and 106 center bore decide suitability.
The nine-inch width and offset 1 affect tire-to-fender room, so check clearance on the vehicle you plan to use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 106 center bore against your hub before fitting lug nuts, and check that the seat type matches the lug hardware.
What’s included
One wheel, part number MHTD53820909850.
Not included: tire.
