FUEL Off-Road D742 Runner Wheel, 24x12 with 5 on 5 Bolt Pattern – Red / Milled – D74224207547

FUEL Off-Road

Shop FUEL Off-Road Wheels 24x12 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 24 by 12 inch aluminum directional wheel, part number MHTD74224207547.
  • 5 on 5 bolt pattern with -44 offset and 72 center bore.
  • Red milled finish, Series D742 Runner.
  • No vehicle fitment listed; confirm hub specifications first.

Description

Overview

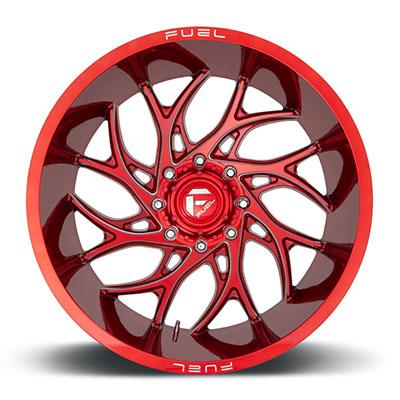

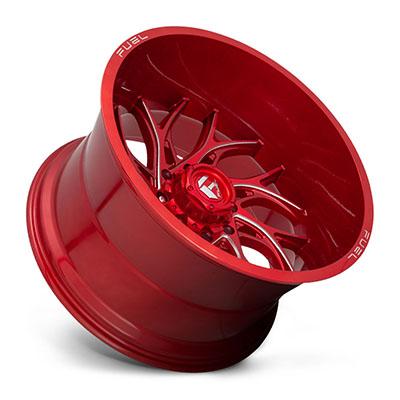

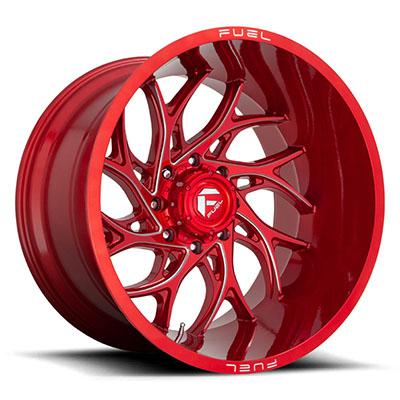

The FUEL Off-Road D742 Runner is a 24 by 12 inch aluminum directional wheel with red milled finish, part number MHTD74224207547. It has a 5 on 5 bolt pattern, a 72 center bore, a -44 offset and a 4.77 backspacing.

A negative offset such as -44 pushes the mounting face outward, which moves the wheel further toward the fender and changes the clearance needed around suspension and brakes. Match the bolt pattern and center bore before comparing other figures.

Key features

  • 24-inch diameter and 12-inch width.
  • 5 on 5 bolt pattern.
  • Red milled finish on aluminum construction.
  • Directional style for a set rotation direction.
  • -44 offset and 4.77 backspacing.
  • Series D742 Runner.

Test fitting clearance

Clearance is the first thing to test on a wheel with this much offset change. Mount the wheel with the tire you plan to run, then turn the steering to both locks and cycle the suspension through its travel. Watch for rubbing on the fender liner, the tire against the control arms and any brake lines. Adjust tire width or offset before the vehicle is driven on the road.

Wider wheels also change how the tire sits against the fender, so the sidewall and tread should be checked together. Aftermarket spacers or wheel adapters can alter the same clearances, so they should be considered before fitting rather than after a rub appears. Reassess clearance after any suspension or tire change.

Specifications

Brand FUEL Off-Road
Part number MHTD74224207547
Series D742 Runner
Wheel diameter 24 inches
Wheel width 12 inches
Bolt pattern 5 on 5
Center bore 72
Offset -44
Backspacing 4.77
Construction Aluminum
Style Directional
Finish Red/Milled

Vehicle fitment

No vehicle is named for this wheel. Confirm the bolt pattern, center bore and offset suit your hub, and check clearance to brakes and suspension before choosing it.

Confirm the 5 on 5 bolt pattern, 72 center bore and -44 offset suit your vehicle before choosing this wheel.

Installation notes

Offset and width both change tire and suspension clearance, so test fit with the intended tire before driving. Keep the directional rotation orientation the design calls for when mounting.

What’s included

Tires and lug hardware may need separate sourcing, so check the package contents against your installation before starting.

Not included: Confirm whether tires and lug hardware are needed separately.

SKU: MHTD74224207547 Categories: ,

Questions & Answers

What is the FUEL Off-Road D742 Runner 24x12 wheel?

It is a 24 by 12 inch aluminum directional wheel with red milled finish, part number MHTD74224207547, from FUEL Off-Road. It has a 5 on 5 bolt pattern, a 72 center bore, a -44 offset and a 4.77 backspacing.

Will this wheel fit my truck?

Fit is not confirmed for a specific truck, since no vehicle is named. Confirm fit for your vehicle's year, model and trim before ordering, and compare the bolt pattern, center bore and offset with your hub.

Does the negative offset change how the wheel sits?

Yes. A -44 offset places the mounting face further outboard than a positive offset, so the wheel sits further out from the hub. The 4.77 backspacing shows the room behind the mounting face, which helps judge inner clearance.

Can a negative offset cause tire rub?

It can. Moving the mounting face outward shifts the wheel toward the fender, so the tire may rub at full steering lock or over bumps. Test fit with the tire you plan to run, and check suspension travel and steering stops before driving.
