Overview

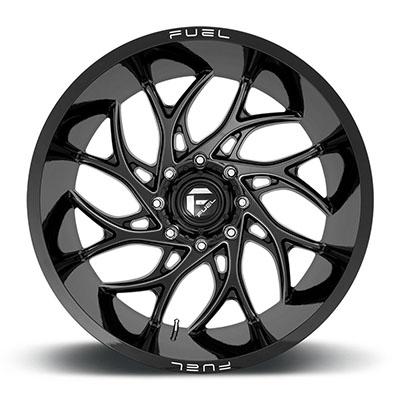

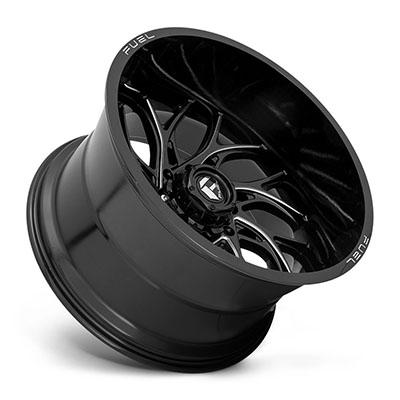

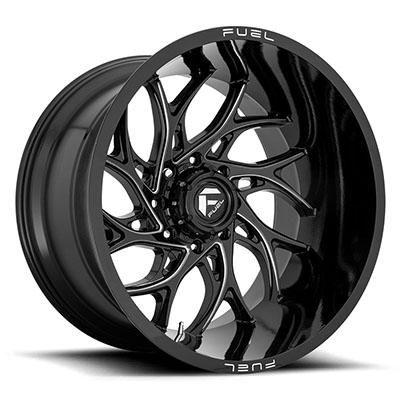

The FUEL Off-Road D741 Runner 22×10 is a directional aluminum wheel with a gloss black milled face, part number MHTD74122008447. It measures 22 inches in diameter and 10 inches wide, with a 6 on 5.5 bolt pattern, offset -18 and backspacing 4.79.
Diameter, offset and bolt pattern at this size need checking against the hub and clearance of the vehicle you plan to use. A universal fit tag does not replace that check.
Key features
- Directional face in gloss black milled finish
- Aluminum construction
- 22 inch diameter with 10 inch wheel width
- 6 on 5.5 bolt pattern
- Offset -18 with backspacing 4.79
Choosing lug and hub hardware
Lug nuts must match the seat style of the wheel, whether conical, ball or flat. A mismatch can loosen the wheel or damage the seat, so confirm the seat before buying hardware. Thread pitch and length also matter, since a nut that is too short will not fully engage the stud.
Hub-centric rings are used when the wheel bore is larger than the hub. Choose rings that match the hub bore precisely and avoid stacking them. Inspect the studs and hub face for rust, and clean the mating surfaces before mounting so the wheel sits flat.
- Confirm seat style before buying nuts
- Check thread pitch and stud length
- Use rings only when the bore calls for them
- Clean mating surfaces before mounting
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74122008447 |
| Series | D741 Runner |
| Wheel diameter | 22 inches |
| Wheel width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -18 |
| Backspacing | 4.79 |
| Style | Directional |
| Finish | Gloss black milled |
| Construction | Aluminum |
Vehicle fitment
No fitment is tied to this wheel. A 22-inch wheel with a 6 on 5.5 pattern and -18 offset is size-specific, so verify hub, bolt pattern and clearance for your truck.
Compare the offset and bolt pattern with your hub’s measurements before ordering. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Only the wheel is part of this package. Confirm whether tires, lug nuts or center caps are included before ordering.
