FUEL Off-Road Covert D694 Wheel, 20x9 with 8 on 6.5 Bolt Pattern – Matte Black – D69420908257

FUEL Off-Road

$485.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Covert D694 20×9 wheel in Matte Black mesh design
  • 8 on 6.5 bolt pattern, 125 center bore, 20 offset
  • Marked universal fit, so no year, make or model is assigned
  • Part number MHTD69420908257

Description

Overview

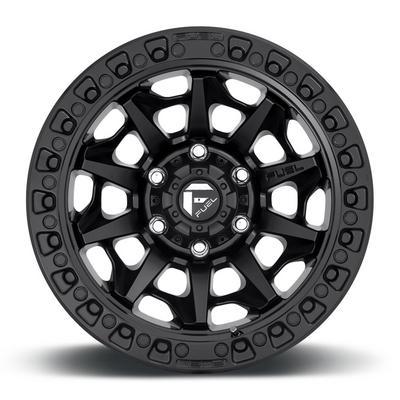

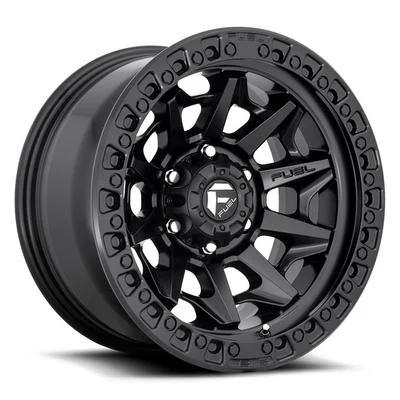

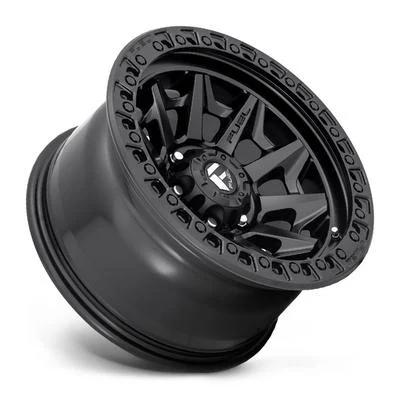

The FUEL Off-Road Covert D694 20×9 in Matte Black is an aluminum mesh wheel with an 8 on 6.5 bolt pattern and part number MHTD69420908257. It is a 20 inch diameter, 9 inch wide wheel for eight-lug applications and is marked universal fit, not tied to a specific model.

The 125 center bore is the number to match against your hub, since it determines how the wheel centers on the hub face. The 20 offset and 5.79 backspacing set how far the mounting surface sits from the fender, so compare them with your current setup before selecting a tire size.

Key features

  • 20 inch diameter and 9 inch width
  • Eight lug holes on an 8 on 6.5 bolt pattern
  • 125 center bore for hub centering
  • Positive 20 offset and 5.79 backspacing
  • Matte Black finish on aluminum mesh

Tire fit and offset

A 20 inch wheel changes the look of a truck and the way it drives, so tire choice matters as much as the wheel itself. Taller sidewalls on larger tires can change the rolling diameter that the speedometer and gearing were built around. Many owners pair a wheel this size with a lower-profile tire, which leaves less sidewall for protection on rocky trails and more exposure to curb damage.

Offset and backspacing control how far the tire sits inside or outside the fender. If the tire is wider than the original, check steering lock and tie rod clearance at full turns. Brake calipers, especially on larger rotors, should be checked as well. Wheel spacers can shift position but add stress to studs, so use only spacers rated for the application. Recheck clearance after the first alignment, since a new tire size can change how the suspension moves.

Specifications

Brand FUEL Off-Road
Part number MHTD69420908257
Wheel diameter 20 inches
Wheel width 9 inches
Bolt pattern 8 on 6.5
Offset 20
Center bore 125
Backspacing 5.79
Style Mesh
Finish Matte Black
Construction Aluminum
Fitment Universal fit

Vehicle fitment

Universal fit means the wheel is not assigned to any year, make or model. Check the 8 on 6.5 bolt pattern and 125 center bore against your hub, then confirm the offset works with your brake calipers.

Eight-lug wheels still need the correct stud length and seat style for a safe mount. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the seat style matches your lug nuts before mounting, and verify the eight-lug pattern against your hub.

What’s included

The wheel is described on its own. Not included: Tires, lug nuts and valve stems are not included. Plan to source them separately.

SKU: MHTD69420908257 Categories: ,

Questions & Answers

Does the FUEL Off-Road Covert D694 20x9 in 8 on 6.5 fit a specific truck?

No specific vehicle is named because the wheel is marked universal fit. Match the 8 on 6.5 bolt pattern and 125 center bore to your hub first, then check offset clearance with your brakes.

What is part MHTD69420908257's offset and center bore?

The offset is 20 and the center bore is 125. Backspacing is 5.79. The wheel is 20 inches in diameter, 9 inches wide, Matte Black, and built of aluminum with a mesh style.

Does the package include tires or hardware?

The wheel is sold on its own. Tires, lug nuts and valve stems are not included, so verify what you need before mounting the wheel.

How soon should lug nut torque be rechecked after mounting a new wheel?

Recheck the lug nut torque after the first few drives, then periodically as part of routine service. Settling of the wheel and tire can loosen fasteners slightly, so this check catches problems early.

How can I tell if the wheel is bent or damaged?

Look for vibration at highway speed, a pull to one side, or a visible bend on the rim lip. Inspect the mesh spokes for cracks around the bolt holes and check for air loss from the bead area. Any cracks mean the wheel should be replaced rather than repaired.
