FUEL Off-Road Ammo D701 Wheel, 17x9 with 6 on 5.5 Bolt Pattern – Anthracite / Black – D70117908450

FUEL Off-Road

$320.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 10:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Ammo D701 17×9 wheel, part MHTD70117908450
  • 6 on 5.5 bolt pattern, offset of 1, 106 center bore, 5 backspacing
  • Anthracite and black split spoke design in aluminum
  • Universal fit is the only fitment given

Description

Overview

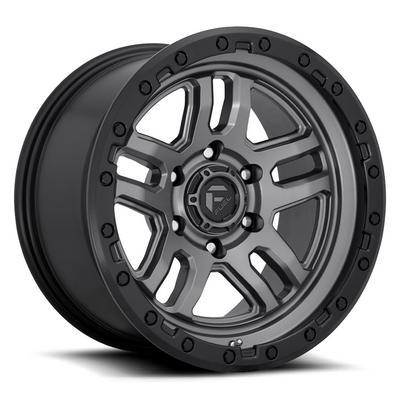

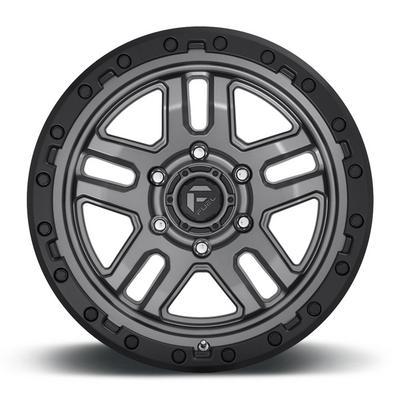

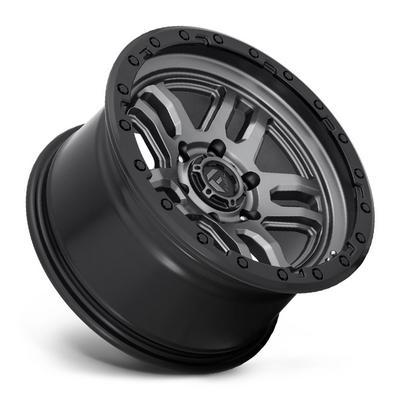

The Ammo D701 17×9 from FUEL Off-Road, part MHTD70117908450, is an anthracite and black split spoke aluminum wheel with a 6 on 5.5 bolt pattern and an offset of 1. It targets six-lug trucks and SUVs that call for a bold stance and a dark, two-tone look. Fitment is universal, so confirm the bolt pattern and center bore before ordering.

The wheel is 17 Inches in diameter and 9 Inches wide, with a center bore of 106 and backspacing of 5. Those figures, along with the offset of 1, determine whether the wheel seats on the hub and clears brake and suspension parts, so read them against your vehicle’s own measurements.

Key features

  • Anthracite and black two-tone finish
  • Split spoke styling
  • Aluminum construction
  • 6 on 5.5 bolt pattern
  • Offset of 1 with 5 backspacing
  • 106 center bore

Trail use and wheel care

Split spoke wheels with dark finishes are popular for trail trucks because the two-tone contrast looks purposeful against tires and fenders. Off-road use puts side loads on the barrel, so inspect the lip and spokes after rocky runs for cracks, bends or flat spots that could affect the tire seal.

Tire pressure changes the load on the bead seat. Running lower pressures for traction raises the chance of a tire rolling off a damaged bead, so check the seal after each trip and carry a gauge. Pair the wheel with tires that have a load rating suited to your truck, and retighten lug nuts after the first drives.

When fitting a dark wheel, clean the mounting face and studs before installation to remove rust and grit. A clean seat helps the wheel sit flat, and it makes torque readings more accurate. Keep a record of when torque was last checked so the schedule is easy to follow.

Specifications

Brand FUEL Off-Road
Model Ammo D701
Part number MHTD70117908450
Wheel diameter 17 Inches
Wheel width 9 Inches
Bolt pattern 6 on 5.5
Offset 1
Center bore 106
Backspacing 5
Style Split Spoke
Finish Anthracite/Black
Construction Aluminum

Vehicle fitment

No year, make, model or trim is attached to this wheel. Confirm the 6 on 5.5 bolt pattern and 106 center bore against your hub, since six-lug hubs with that spacing are the match this wheel describes.

Confirm your vehicle’s year, model and trim before ordering. Check the 106 bore first, because it decides whether hub rings are needed.

Installation notes

Hub-centric rings are the usual fix when the hub is smaller than the 106 bore. Check tire, fender and brake clearance at offset 1, and recheck lug tightness after the first miles of driving.

What’s included

The wheel is the only item described here, in anthracite and black with part number MHTD70117908450.

Not included: Buy tires, lug nuts and caps separately, and check the package contents against your installation before starting.

SKU: MHTD70117908450 Categories: ,

Questions & Answers

What is FUEL Off-Road part MHTD70117908450?

It is the Ammo D701 17x9 wheel in anthracite and black, with a 6 on 5.5 bolt pattern, an offset of 1, a 106 center bore and 5 backspacing. Part number MHTD70117908450 identifies this size and finish.

Is there a specific truck or SUV this wheel is built for?

No. Universal fit is the only fitment statement, and no year, make, model or trim is named. Match the bolt pattern and center bore to your hub before you commit to a fit.

What is the backspacing and what does it affect?

The listed backspacing is 5. Backspacing shows how far the mounting face sits from the inner barrel edge, which affects clearance to suspension and fender parts, so compare it with your setup.

Do I need to rebalance tires after mounting these wheels?

Usually yes, after mounting new tires or swapping wheels. Balancing corrects weight differences that cause vibration at highway speed. Ask the shop to check balance on the finished assembly, and recheck if vibration appears after the first few drives.
