Overview

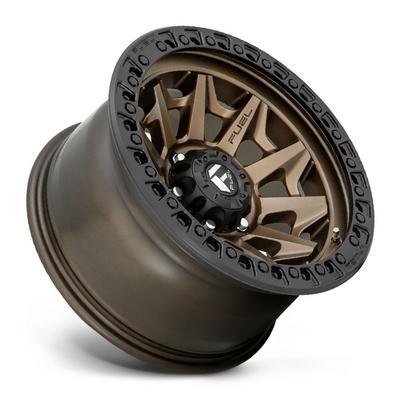

The FUEL Off-Road Covert D696 is a 17-inch by 9-inch aluminum mesh wheel in bronze and black, part number MHTD69617908445. It is built on a 6 on 5.5 bolt pattern with a negative offset of -12, and its fitment entry reads universal fit without naming a vehicle.
FUEL Off-Road says its wheels combine style, size and application for trucks and SUVs. A negative offset moves the mounting face outward, so this D696 is best judged against your own hub, inner fender and brake clearance before any tire is fitted.
Key features
- Mesh style face in a bronze and black finish
- Aluminum construction with a 17-inch diameter
- 9-inch wheel width
- 6 on 5.5 bolt pattern
- Offset of -12, center bore of 106 and backspacing of 4.53
Negative offset and hub match
A negative offset pushes the mounting face outward, so the wheel sits farther out than a standard wheel. That can improve stance and stability on wide trucks, but it also moves the tire closer to the outer fender and any trail gear hanging there. Check outer clearance with the tire on, and recheck after the first off-road outing.
Bolt pattern is the first gate. Six-lug hubs come in several circle sizes, and a pattern that looks close can still be a mismatch. Measure from the center of a stud across to the far side of the hub, and confirm it before the wheel is considered for any vehicle. Mismatched studs can damage a hub and cause wheels to come off, so take the time to measure carefully.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD69617908445 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Offset | -12 |
| Center bore | 106 |
| Backspacing | 4.53 |
| Style | Mesh |
| Finish | Bronze/Black |
| Construction | Aluminum |
| Fitment entry | Universal Fit |
Vehicle fitment
This wheel is universal fit, so no make, model, year or trim is assigned. Match the 6 on 5.5 bolt pattern and the -12 offset to your vehicle before choosing it.
A 6 on 5.5 pattern is a different hub than a 6 on 135 pattern, so the two cannot be swapped without confirmation. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Set the -12 offset against inner fender and suspension clearance on the test fit, since the backspacing of 4.53 determines how far the wheel sits inboard.
What’s included
Confirm the quantity you are buying before ordering.
Not included: Tires, lug nuts and center caps are not included.
