Overview

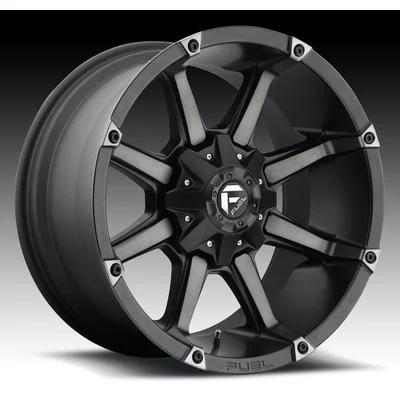

The FUEL Off-Road 20×9 Coupler wheel, part number MHTD55620901857, is a black machined aluminum spoke wheel measuring 20 by 9 inches. Its bolt pattern is 8 on 180, and the wheel carries a 124 center bore.
Offset 20 and backspacing 5.8 are the two figures to compare with your current setup before buying.
Key features
- 20 by 9 inch aluminum spoke wheel
- Black machined finish
- Single 8 on 180 bolt pattern
- Center bore of 124
- Offset of 20
- Backspacing of 5.8
Offset, backspacing and hubs
Offset and backspacing determine where the mounting face sits relative to the hub and the fender, so they shape clearance as much as width does. When replacing a wheel, compare the new offset and backspacing with the old set, then check the inner fender, strut and brake caliper through full steering and suspension travel. A change in either figure can move the tire enough to rub.
A center bore larger than the hub calls for a hub-centric ring, which carries weight through the hub instead of the studs. Rings are sized to the hub, so measure before buying. Eight-lug mounting also depends on matching studs and nuts, and a mismatch will not seat properly.
- Compare offset and backspacing with the wheel being replaced
- Measure the hub bore before choosing a centering ring
- Check inner fender and strut clearance at full lock
- Recheck lug torque after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD55620901857 |
| Model | Coupler |
| Wheel diameter | 20 Inches |
| Wheel width | 9 Inches |
| Style | Spoke |
| Finish | Black Machined |
| Construction | Aluminum |
| Bolt pattern | 8 on 180 |
| Offset | 20 |
| Backspacing | 5.8 |
| Center bore | 124 |
Vehicle fitment
No fitment is listed. The fitment tag reads universal fit without naming a vehicle, year or trim, so measure the hub and check it against the 8 on 180 pattern before mounting.
Confirm your vehicle’s bolt pattern, center bore and offset before ordering.
Installation notes
A 124 center bore may call for a hub-centric ring, depending on the hub. The 20 offset and 5.8 backspacing affect clearance to the suspension and inner fender, so measure both.
What’s included
Lug hardware, center caps and valve stems: source separately before mounting.
