Fox Racing Shox Fox 2.0 Factory Series Smooth Body Remote Reservoir Shock CD Adj – 980-26-030

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox Racing Shox Fox 2.0 Factory Series Smooth Body Remote Reservoir Shock
  • CD adjuster, gas charged
  • Direct replacement, bolt-on design
  • UPC 700007190065
  • Universal fit; confirm mounts before installing.

Description

Overview

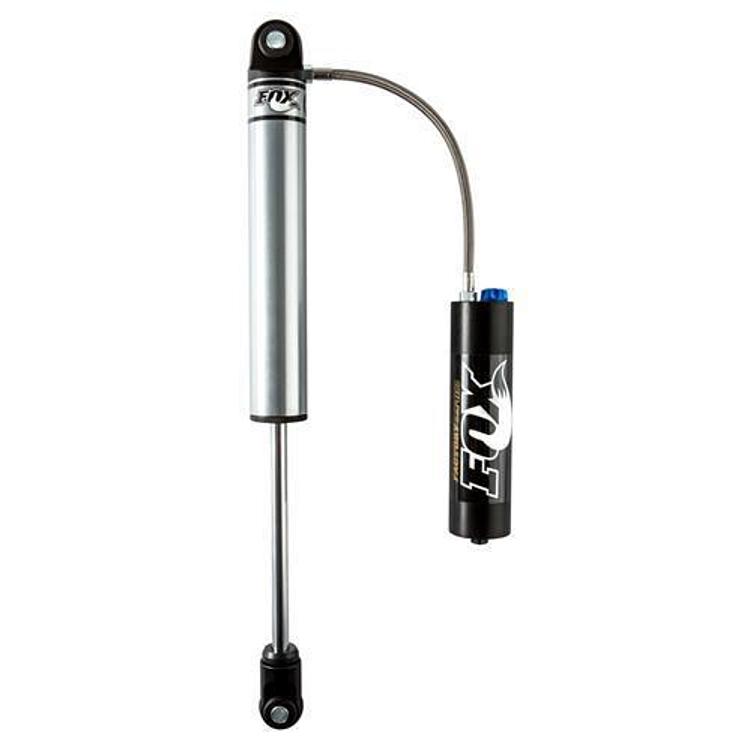

The Fox Racing Shox 980-26-030 is a Fox 2.0 Factory Series smooth body remote reservoir shock with a CD adjuster. It is a gas charged, direct replacement shock that bolts in place of the original.

Fox engineers tested each application to maximize suspension travel and performance on and off the road. Direct replacement shocks from Fox cover many factory and lifted applications. This shock is universal fit, but it must still match your vehicle’s mounts and length.

Key features

  • Smooth body design
  • Remote reservoir
  • CD adjuster, where CD refers to compression damping
  • Gas charged construction
  • Direct replacement, bolt-on installation
  • Application testing described by Fox engineers

Setting up a remote reservoir

A remote reservoir moves the gas and oil storage away from the shock body, which lets the shock run cooler and gives it more room to work on long descents. The hose needs a path that keeps it away from exhaust heat, sharp edges and moving suspension parts, and it should not be pinched when the axle cycles through its travel.

Because the reservoir sits apart from the body, check its mounting before the first trip. Loose brackets can rub or shift under load, so tighten them after the first few runs and look for chafing on the hose at each service interval.

  • Keep the hose clear of pinch points at full droop and full compression
  • Check reservoir brackets for looseness after the first trail runs
  • Confirm the adjuster can be reached once the shock is installed

Specifications

Brand Fox Racing Shox
Part number 980-26-030
UPC 700007190065
Series Fox 2.0 Factory Series
Body Smooth body
Reservoir Remote
Adjuster CD adjuster
Hydraulic / gas charged Gas charged
Design Direct replacement, bolt-on
Fitment Universal fit, so it must still match your vehicle’s mounts and length.

Vehicle fitment

No vehicle is named for the 980-26-030, so no specific vehicle is confirmed. Match the eye-to-eye length, stroke and mount style of the original shock before you install this one.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Route the remote reservoir hose clear of heat and moving parts, and keep the CD adjuster accessible once the shock is mounted. Gas charged shocks are pressurized, so do not heat or puncture the body.

What’s included

One Fox 2.0 Factory Series remote reservoir shock, part 980-26-030. Check the brackets and reservoir mounting hardware against your installation before starting.

SKU: FOX980-26-030 Category:

Specification

Shipping weight 10.00 lbs
Package dimensions 27.50 × 5.80 × 2.50 in
brands

Questions & Answers

What is the Fox 980-26-030?

It is a Fox 2.0 Factory Series smooth body remote reservoir shock with a CD adjuster, sold under Fox Racing Shox part number 980-26-030. It is gas charged and a direct replacement shock.

Does the 980-26-030 fit my vehicle?

It is a universal fit shock, so no specific vehicle, year or model applies. Match the eye-to-eye length, stroke and mount style to your vehicle before ordering.

What does CD adjuster mean on this Fox shock?

CD stands for compression damping, the setting that controls how the shock resists being pushed in. This model has a CD adjuster, so you can tune that resistance on the shock itself.

How do I know if a gas charged shock needs service?

Look for oil leaks around the shaft seal, a loss of damping on smooth pavement, or a bouncy feel after a few rough trips. Any of these signs means the shock should be inspected before further use.
