Overview

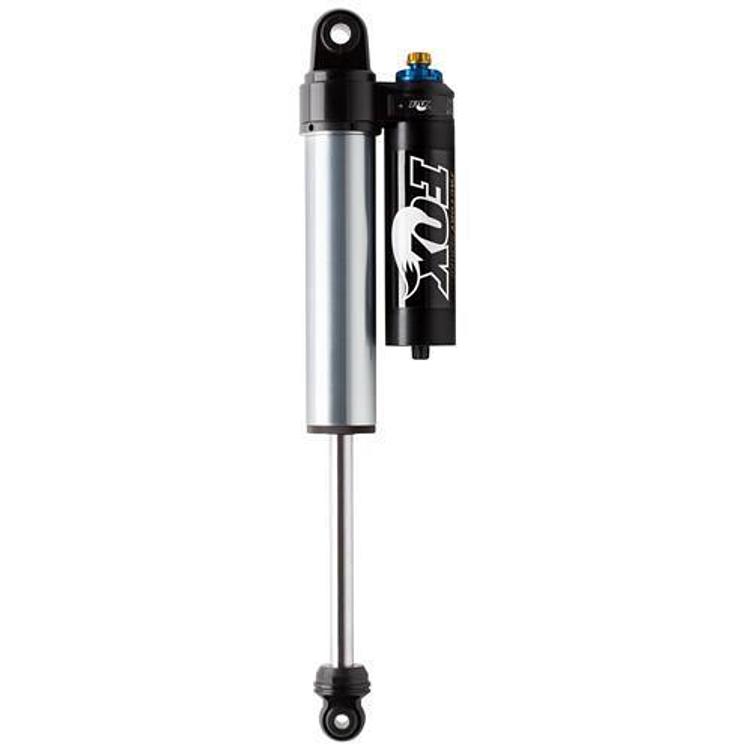

The Fox 2.5 Factory Series Reservoir Shock Set, part number 883-26-000, is an adjustable direct replacement shock for the 2005–2014 Toyota Tacoma in the Base, Pre Runner and X-Runner trims. It uses a bolt-on design, so it takes the place of the original unit at the factory mounts.
The shock has an Adjustable DSC Adjuster and is gas charged. Its extended length is 23.23 inch, its collapsed length is 15.060 inch and its stroke is 8.17 inch. The reservoir body is part of the Fox 2.5 Factory Series design, which is built for travel on and off the road.
Key features
- Direct replacement bolt-on design for the Toyota Tacoma
- Adjustable DSC adjuster on the shock body
- Gas charged body construction
- Extended length 23.23 inch and collapsed length 15.060 inch
- Stroke of 8.17 inch
Off-road use and upkeep
A Tacoma that sees washboard roads, trail crossings or towing asks a lot from its rear dampers. The shock slows the springs as they compress and rebound, which keeps the rear axle from skipping over ruts. Adjustable units let the driver change that response, though the setting should suit the load and terrain rather than be left at an extreme.
Gas charged shocks hold pressure inside the body, so they should be handled with care during removal and storage. Before installing a replacement, inspect the rear bump stops and mounting bushings, since those parts take the same beating and are often replaced together.
- Check bump stops and bushings during the job
- Wipe the shock body and look for oil seepage
- Recheck mounting bolts after the first drives
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Product | Fox 2.5 Factory Series Reservoir Shock Set |
| Part number | 883-26-000 |
| UPC | 700007031181 |
| Fitment type | Direct fit |
| Adjuster | Adjustable DSC |
| Charge | Gas charged |
| Extended length | 23.23 inch |
| Collapsed length | 15.060 inch |
| Stroke | 8.17 inch |
Vehicle fitment
The 2005–2014 Toyota Tacoma is covered in the Base, Pre Runner and X-Runner trims, and those years and trims make up the full coverage for this part.
The list does not show Tacoma model years before 2005 or after 2014, and it does not include the Toyota Tundra or other models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a direct replacement, so the job is a shock swap at the existing mounts. Keep the vehicle supported and the axle unloaded while the old unit comes off. Gas charged shocks are pressurized, so wear eye protection during removal.
What’s included
The package is the Fox 2.5 Factory Series Reservoir Shock Set. Lay out the contents and compare them with your installation before starting.
