Fox Racing Shox 2.0 Series Emulsion Shock with Remote Reservoir – 980-02-035

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox Racing Shox 980-02-035, 2.0 Series emulsion shock with remote reservoir
  • Travel 14.0 inch, 2.0 inch body, 5/8 inch shaft
  • Extended 35.10 inch, collapsed 21.10 inch
  • No vehicle named; check length and mounting first

Description

Overview

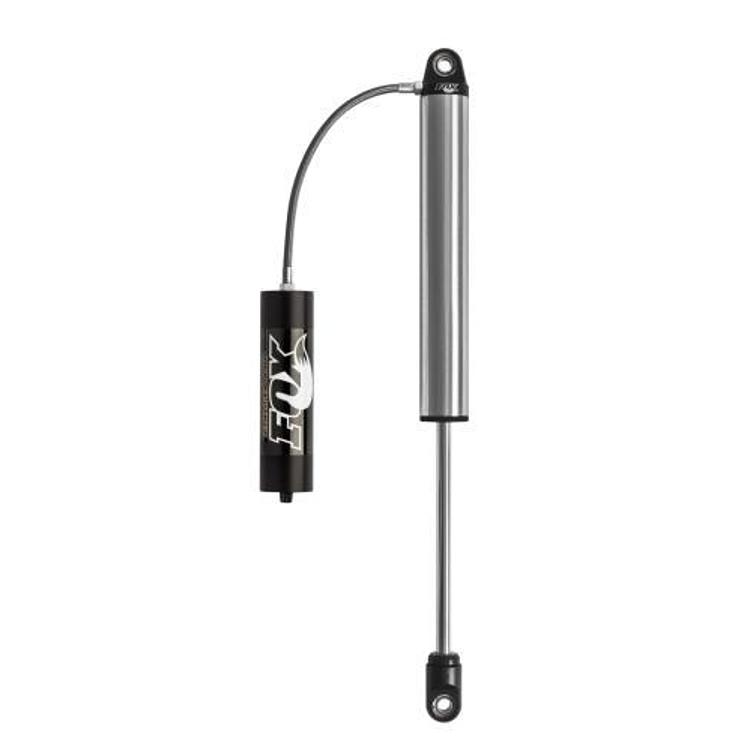

The Fox Racing Shox 980-02-035 is a 2.0 Series emulsion shock with a remote reservoir, a 2.0 inch body and 14.0 inch travel. It measures 21.10 inch collapsed and 35.10 inch extended, and its reservoir is 2.0 x 11.00 inch.

Emulsion shocks mix gas into the oil rather than separating the two with a floating piston. Valving is tunable, so damping can be set to suit the terrain and the vehicle.

Key features

  • Emulsion design with a remote reservoir
  • 14.0 inch travel in a 2.0 inch body
  • 5/8 inch shaft diameter
  • Black and zinc finish with 1/2 inch bolt or heim mounting

Choosing a remote reservoir setup

A remote reservoir moves oil storage away from the shock body, which gives the oil more room to cool and helps limit heat buildup on long descents or repeated hard use. Routing the reservoir hose is the main planning step. Keep the hose clear of tires, steering components and sharp edges, and allow enough slack for full suspension travel in both directions.

Emulsion shocks suit owners who want steady damping on rough terrain. Because gas is mixed into the oil, the fluid can foam under very high heat, so regular inspection of the seals and reservoir fittings is worthwhile. After hard runs, check the shock body temperature and look for oil weeping around the shaft seal.

  • Check reservoir clearance before final tightening
  • Inspect hose fittings for seepage after the first trail runs
  • Recheck mounting bolts after the first few drives

Specifications

Brand Fox Racing Shox
Part number 980-02-035
UPC 70000375553
Series 2.0 Series emulsion with remote reservoir
Body diameter 2.0 inch
Travel 14.0 inch
Reservoir size 2.0 x 11.00 inch
Shaft diameter 5/8 inch
Extended length 35.10 inch
Collapsed length 21.10 inch
Finish Black and zinc
Mounting 1/2 inch bolt or heim

Vehicle fitment

This is a universal fit design with no year, make, model or trim tied to it. Fit depends on the 21.10 inch collapsed and 35.10 inch extended lengths and the mounting style. Confirm your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The remote reservoir is a separate part from the shock body, so plan its mounting location before fitting. Check that the length and mounting eyes suit your suspension before installing.

What’s included

One shock with remote reservoir. Check the package contents against your installation before starting, including any springs or mounting hardware you need.

SKU: FOX980-02-035 Category:

Specification

Shipping weight 11.60 lbs
Package dimensions 48.00 × 7.00 × 3.00 in
brands

Questions & Answers

What is an emulsion shock?

An emulsion shock mixes gas into the oil rather than separating them with a floating piston. Valving on the 980-02-035 can be tuned, and the remote reservoir gives the oil room to expand and cool. Check the length and mounting before choosing it.

What are the part number and UPC?

The part number is 980-02-035 and the UPC is 70000375553. It is a 2.0 Series emulsion shock with a remote reservoir and 14.0 inch travel, finished in black and zinc.

Does it fit my vehicle?

Fit is not confirmed for a specific vehicle. Compare the 21.10 inch collapsed and 35.10 inch extended lengths and the 1/2 inch bolt or heim mounting with your vehicle, and confirm your year, model and trim before ordering.

How do I know when an emulsion shock needs service?

Look for oil leaking from the shaft seal or reservoir fittings, a loss of damping control, or a bouncy feel over small bumps. Any of these signs suggest the seals or valving need inspection before the next run.
