Overview

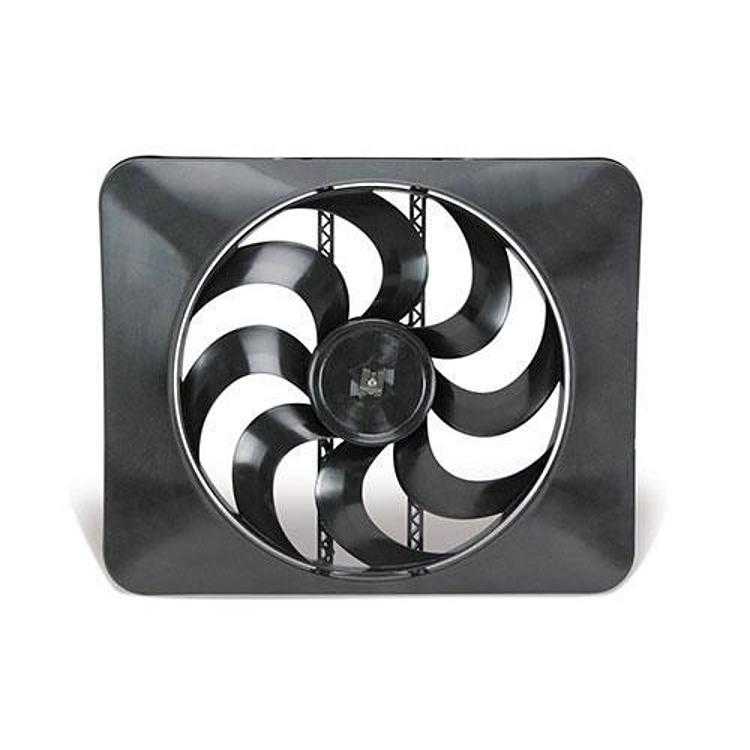

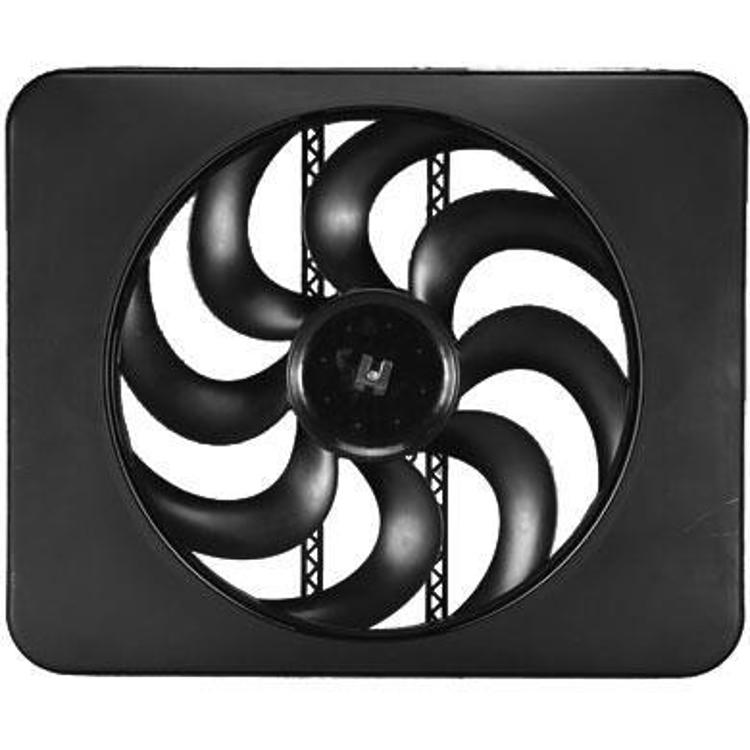

The Flex-A-Lite Black Magic X-Treme 16 is a 16 inch S-blade electric puller fan, model 180, designed to replace a belt-driven fan. It moves 3300 CFM and gives full radiator coverage, with a mounting surface of 21.5 in x 17.5 in x 4-3/16 in.
The X-Treme covers 45% more radiator surface than the standard Black Magic fan. Replacing a belt-driven fan with this electric unit removes the belt load, which is rated at up to 17 HP and 20 lb-ft of torque.
Key features
- Electric motor replaces a belt-driven fan
- One piece nylon shroud with rigid bracket mounting and no through-core mounting
- Covers 45% more radiator surface than the standard Black Magic fan
- Adjustable thermostat from 160 to 240 degree, with A/C relay and manual switch connection
- Made in the USA
Choosing a fan for your radiator
An electric puller fan pulls air through the radiator, which matters most at idle and in slow crawling, when a belt-driven fan moves less air. Moving the fan to an electric drive also frees engine power that a belt-driven fan takes, and it lets the fan run only when cooling is needed. Fan size and shroud fit decide how much of the core it actually covers.
Before buying, measure the radiator core and the space between the core and the fan location. The mounting surface, the depth of the fan body and the clearance to belts, hoses and the front of the engine all affect whether the fit works. Keep the thermostat setting in mind too, since a higher setting holds the engine warmer before the fan comes on.
Specifications
| Brand | Flex-A-Lite |
|---|---|
| Model | 180 |
| UPC | 88657001809 |
| Blade style | S-blade |
| Diameter | 16 inch |
| Airflow | 3300 CFM |
| Motor speed | 2,450 rpm at 13.5 Volts |
| Current draw | 18 amp |
| Thermostat range | 160 to 240 degree |
| Mounting surface | 21.5 in x 17.5 in x 4-3/16 in |
| Fitment | Universal fit |
| Origin | Made in the USA |
Vehicle fitment
No vehicle is named for this fan. It is sold as universal fit and as direct fit, so the match to a given vehicle depends on the mounting surface and clearance.
Check the 21.5 x 17.5 x 4-3/16 inch mounting surface and radiator clearance against your vehicle before choosing this fan. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The fan replaces a belt-driven fan, so the belt-driven fan must come off first. Run the power on a correctly rated fused circuit, since the 18 amp draw is substantial.
What’s included
Look over the box contents against your installation plan before starting, including the shroud, bracket hardware and relay and switch connections.
