Falcon Series 3.1 Piggyback Shock Absorber Kit

TeraFlex

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex Falcon Series 3.1 piggyback shock absorber kit, part number 02-01-31-400-253
  • Direct fit for the 2007–2017 Jeep Wrangler (JK)
  • Hydraulic piggyback design for a 2.5–3.5 in lift
  • Piggyback reservoir increases fluid flow by 6x over restricting reservoir hose designs
  • Set includes front and rear shocks

Description

Overview

The TeraFlex Falcon Series 3.1 Piggyback Shock Absorber Kit (part number 02-01-31-400-253) is a hydraulic piggyback shock set for the Jeep Wrangler JK, fitting the 2007–2017 Jeep Wrangler (JK). It is built for a 2.5 to 3.5 inch lift and gives a lifted Wrangler improved stability, dynamic roll control and clearance through full suspension travel and articulation.

The Falcon Series 3.1 is a race inspired piggyback shock built for performance and handling on the Wrangler. Falcon shocks are corner specific, so the front and rear units are developed for their position on the vehicle rather than adapted from a generic design. Vehicle stability is the primary goal of each Falcon shock. Because the front shock body is offset from the frame by its upper stud, the kit keeps the front suspension clear of the frame when the Wrangler is lifted and articulating.

Key features

  • Piggyback reservoir that TeraFlex says increases fluid flow by 6x over restricting reservoir hose designs
  • Front shock with a horizontal reservoir to add clearance for large tires during articulation and turning
  • Offset upper stud on the front shock positions the shock body away from the frame for additional frame clearance
  • Rear shock body and reservoir sit at the bottom to help eliminate shaft damage from rocks kicked up by the tires
  • Outboard mounting that increases clearance on lifted vehicles with raised track bar brackets
  • Reservoir locations specific to the JK Wrangler
  • Improved dynamic roll control and optimized fitment for clearance through full suspension travel and articulation
  • Hydraulic damping with a 2.5 to 3.5 inch lift range

Piggyback shock basics

A piggyback shock moves its gas and oil reservoir away from the damper body, which gives the fluid more room to work during long compression and rebound. On a Wrangler that sees rough trails and articulation, that layout can keep the damping steadier when the shock is worked hard for extended periods. The reservoir also has to be routed and protected so it does not catch rocks or brush.

When choosing piggyback shocks, look at the spring and bump stop setup along with the shock itself. Front and rear units are often replaced together, since a matched pair keeps the ride balanced side to side. Hose clamps, reservoir brackets and upper mounts deserve a look at each service interval, especially after rock crawling.

  • Check reservoir hose clamps and brackets
  • Look for oil seepage around the shock body
  • Inspect upper studs and mounts after articulation

Specifications

Brand TeraFlex
Product line Falcon Series 3.1
Part number 02-01-31-400-253
UPC 843885040026
Shock type Piggyback
Damping Hydraulic
Lift range 2.5–3.5 in
Fitment Direct fit
Fluid flow 6x over restricting reservoir hose designs
Supplied as Set

Vehicle fitment

It is a direct fit for the 2007–2017 Jeep Wrangler (JK), in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

The listed fitment does not cover other Wrangler generations such as the TJ or LJ, or the newer JL Wrangler. Confirm your vehicle’s year, model and trim before ordering.

What’s included

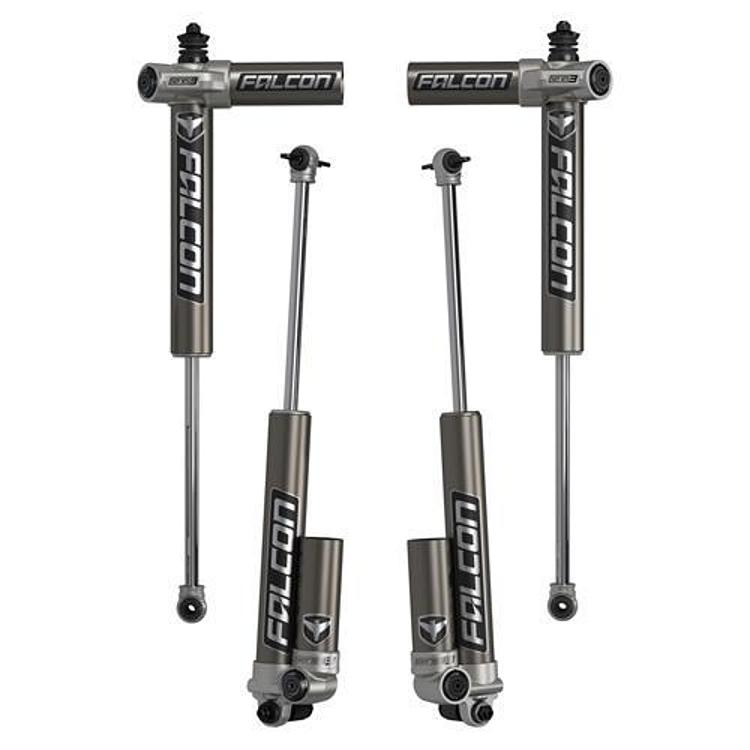

The kit is supplied as a set that includes front and rear piggyback shocks for the Wrangler JK.

SKU: TER02-01-31-400-253 Category:

Specification

Shipping weight 45.00 lbs
Package dimensions 37.00 × 27.50 × 10.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the TeraFlex Falcon Series 3.1 fit a Jeep Wrangler TJ or LJ?

No. It fits the 2007–2017 Jeep Wrangler (JK) only, with trims including Rubicon, Sahara, Sport, Sport S and X. Confirm your year and trim before ordering.

What is the part number of this TeraFlex shock kit?

The part number is 02-01-31-400-253 and the UPC is 843885040026. It is the Falcon Series 3.1 piggyback shock absorber kit from TeraFlex, with a hydraulic damper and a stated 2.5 to 3.5 inch lift range.

Does the kit include both front and rear shocks?

Yes. The set includes front and rear piggyback shocks. The front shock has a horizontal reservoir and an offset upper stud, while the rear shock has its body and reservoir positioned at the bottom.

How much fluid flow does the piggyback reservoir provide?

Fluid flow is increased by 6x over restricting reservoir hose designs, a comparison that applies to the piggyback reservoir in this Falcon Series 3.1 kit. Flow matters most during sustained trail use, when the shock works hard for long periods.

When should piggyback shocks be inspected?

Check the reservoir hose, the mounting bolts and the shock body after rough trail use. Look for oil seepage, a loose upper stud or a reservoir that has shifted, since these point to wear that needs attention.
