Overview

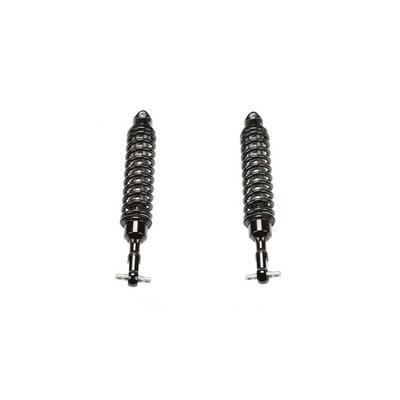

The Fabtech FABFTS22332 is a front Dirt Logic 2.5 coilover shock set for a 6 inch lift on the 2021 and 2022 Ford F-150. It fits King Ranch, Lariat, Limited, Platinum, SSV, Tremor, XL and XLT models.
Fabtech developed the Dirt Logic 2.5 from desert racing experience. It suits a range of coilover applications and aggressive off-road use. The body is 2.5 inches across, with an OEM top mount and a bar pin bottom mount.
This is a coilover without a reservoir. Confirm the number of shocks in the set before ordering.
Key features
- Front position
- Sold for a 6 inch lift.
- 2.5 inch body diameter
- OEM top mount and bar pin bottom mount
- Gas charged
- Aggressive off-road dampening.
Bar pin mounts and alignment
Bar pin bottom mounts use a pin through a bracket rather than a round eye, so the lower end moves differently under load. Inspect the pin, bushing and bracket for wear and make sure the pin is seated and secured. A coilover without a reservoir is a simpler design, and it still needs regular inspection of the seals and mounts.
The shock set is designed for a 6 inch lift, so check the springs, mounts and clearance to the tires at full compression. Front alignment should be checked after the lift is installed, and the steering should be inspected for binding. Work on a securely supported vehicle when adjusting the mounts.
- Inspect pin and bracket wear
- Check tire clearance at full compression
- Align the front after installation
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABFTS22332 |
| Series | 2.5 Dirt Logic Coilover |
| Location | Front |
| Shock type | Coilover |
| Body diameter | 2.5 inches |
| Top mount | OEM |
| Bottom mount | Bar pin |
| Charge | Gas charged |
| Lift (per title) | 6 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2021 and 2022 Ford F-150 models only, in the trims named above.
The list is limited to 2021 and 2022 F-150 trims, so earlier and later years are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bar pin bottom mount differs from the eyelet design used on some coilovers, so check the lower attachment against the vehicle before fitting. Check the front alignment after a 6 inch lift is installed.
What’s included
One coilover shock set. Check the package contents, including any springs, against your installation before starting.
