Overview

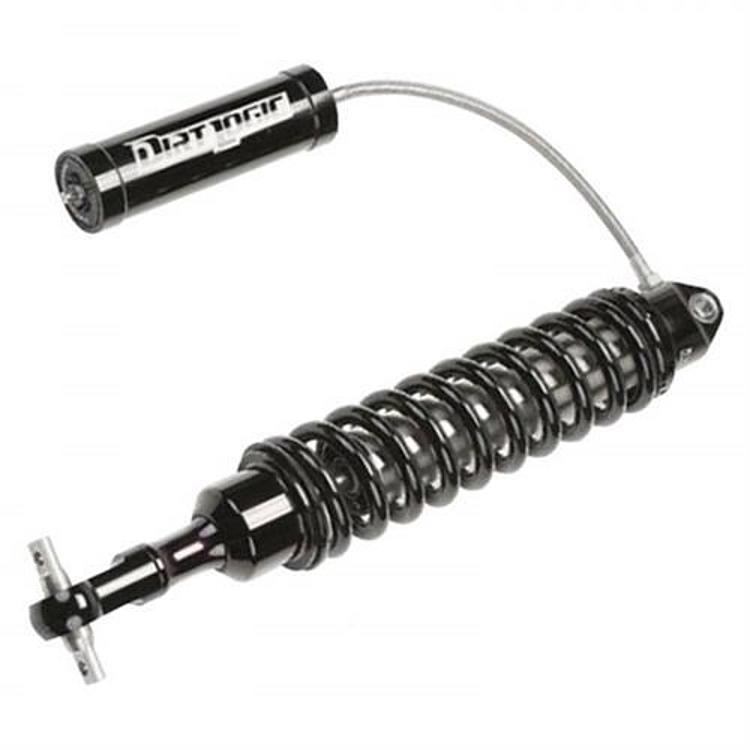

The Fabtech FTS26053 is a Dirt Logic 2.5 coil over shock absorber for the front. It is built for a 6 in. lift and comes with a reservoir (w/Resi). It is hydraulic gas charged with a coil-over design.
Lift height and coil over setup
A coil over combines the spring and damper in one assembly, so a front unit changes both ride height and damping response. A 6 in. lift raises the front end and shifts the angles of the control arms, steering and driveline. Plan the complete front setup before installing, since one change often affects others.
Reservoir designs place the gas chamber in a separate tube, which helps manage heat during sustained use. Check hose routing and clearance against tires and steering parts. After installation, inspect the mounts and bushings for play and recheck alignment and driveline angles to reduce uneven wear.
- Measure front ride height before and after
- Check tire clearance at full steering lock
- Inspect shock mounts and hardware for play
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS26053 |
| UPC | 674866099715 |
| Shock series | Dirt Logic 2.5 |
| Shock type | Coil-Over, Hydraulic / Gas Charged |
| Position | Front |
| Lift | 6 in. |
Vehicle fitment
Confirm fit for your vehicle’s year, make, model and trim before ordering, especially for a front coil over with a 6 in. lift.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6 in. lift changes ride height and suspension geometry, so have alignment and driveline angles checked after the coil overs are fitted.
