Overview

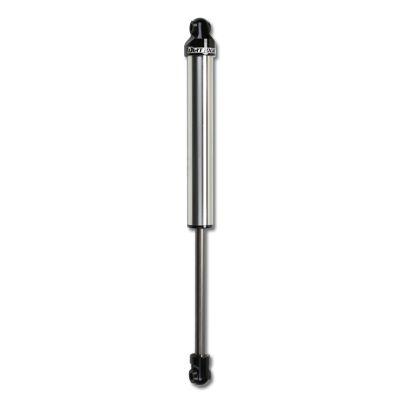

The Fabtech FABFTS811452 is a rear monotube shock absorber from the Dirt Logic 2.25 line. It has eyelet mounts at both ends, a 2.25 inch body diameter and a gas charge. Confirm fit for your vehicle before ordering.
The 2.25 inch body is a larger design than a standard rear shock. The damping is pretuned for Fabtech suspension systems, with the larger tires those systems carry taken into account.
Universal fit means the shock is not tied to one vehicle, so confirm fit for your vehicle before ordering. Compare the mounts and length with the original rear shock.
Key features
- Rear monotube design
- Eyelet mounts at the top and bottom
- 2.25 inch body diameter
- Gas charged
- Damping pretuned for Fabtech suspensions
Eyelet mounts and rear fit
Eyelet mounts at both ends use a pin or bolt through a round eye, so the shock pivots on the axle bracket and the frame bracket. The eye diameter and bushing fit must match the original hardware, or the shock can bind and wear faster. Before fitting, confirm that the bushings and bolts supplied with the shock suit the brackets on your vehicle.
Rear shocks should be replaced in pairs, since uneven damping from side to side can pull the vehicle and change handling on rough ground. A 2.25 inch body takes more room in the wheel well and around the spring than a smaller body, so check clearance with the tires you run before fitting.
- Inspect eyelet bushings for cracks
- Replace worn pin hardware with the shock
- Check travel against the bump stops
- Retorque mounting bolts after the first drives
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABFTS811452 |
| Series | Dirt Logic 2.25 |
| Position | Rear |
| Shock type | Monotube |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.25 inches |
| Charge | Gas charged |
| Fitment type | Universal label, no vehicles named |
Vehicle fitment
Fitment for a specific vehicle is not established. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Compare the eyelet mounts and the 2.25 inch body with the original rear shock before fitting. Work on a securely supported vehicle.
What’s included
One rear monotube shock.
