Overview

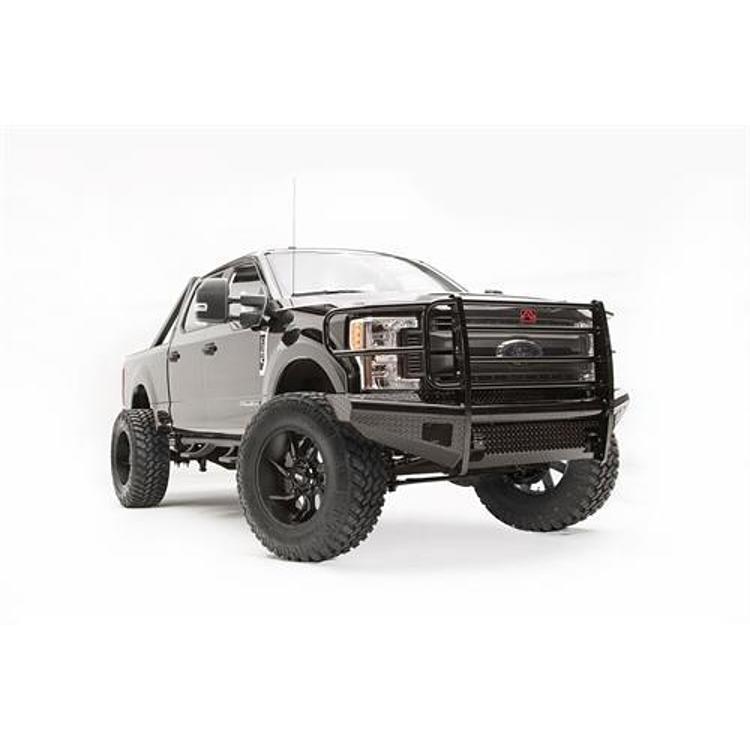

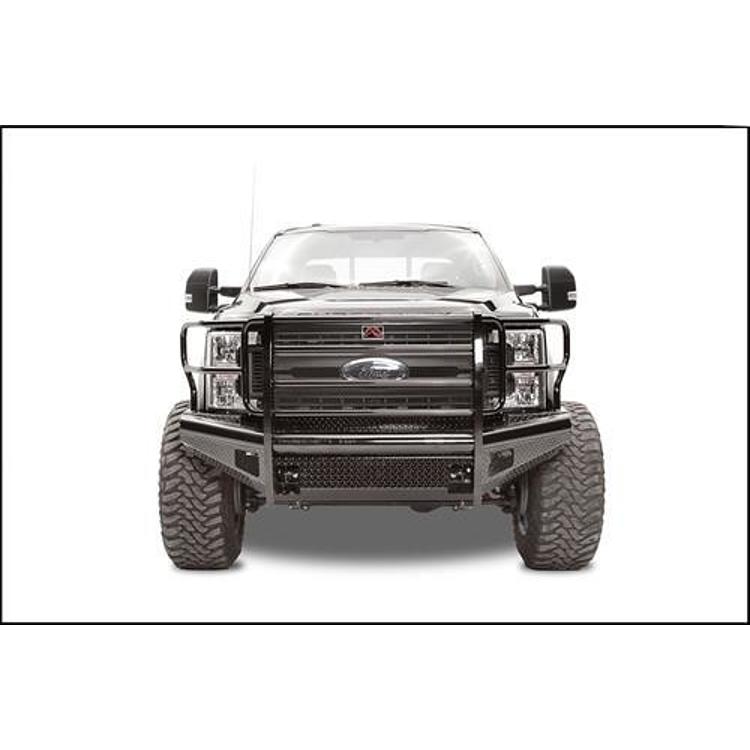

The Fab Fours Replacement Front Bumper with Full Guard in black, part number FS17-S4160-1, is a steel ranch-style front bumper for the 2017–2018 Ford F-250 Super Duty and F-350 Super Duty. It is built from a combination of pipe and tread plate and finished in black powder coat.
Fab Fours took the traditional ranch bumper and styled it after its heavy-duty plate bumpers, matching the bumper to the body lines of each truck. It has no vertical flanges and tapered edges. The same bumper is also available with a pre-runner guard or with no guard.
Key features
- Ranch-style replacement front bumper with a full guard
- Combination pipe and tread plate construction
- Black powder coat; a bare steel version uses -B instead of -1 in the part number
- Bolt-on tow hooks included
- Light mounts for the factory fog lights
- Optional bolt-on winch mount for winches up to 16,500 lb
- Optional bolt-on 1 inch D-ring mounts
- It is made in the USA.
Before you buy
A ranch-style bumper sits at the front of the truck where it takes brush, rock and light impacts, so the guard shape matters as much as the metal. A full guard covers more of the front end than a pre-runner design, which can add protection on rough trails but also adds weight at the nose.
Before choosing a winch mount, check the winch’s rated capacity against the truck’s front axle and the cable’s pull path. A winch mount should be bolted to the bumper’s mounting points and the bumper should be checked for flex after the first few trail runs. Fog light wiring routed through the bumper should be protected from sharp edges and moving parts.
Front-end accessories often change how the bumper and hood clear one another, so test fit the bumper before final tightening. Sensor and camera positions on newer trucks should be checked after the bumper is in place, since small shifts in alignment can affect them.
- Compare the guard style with the trails and terrain you drive most
- Plan winch mounts and D-rings with the rated pull of your winch in mind
- Re-torque the bumper bolts after the first few trail runs
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS17-S4160-1 |
| UPC | 5810112493 |
| Product type | Replacement ranch front bumper |
| Guard style | Full guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Construction | Pipe and tread plate |
| Finish | Black powder coat |
| Tow hooks | Bolt-on, included |
| Light mounts | Included, for factory fog lights |
| Winch mount | Not included; optional bolt-on mount accepts up to 16,500 lb |
| D-ring mount | Not included; optional 1 inch bolt-on mounts |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017–2018 Ford F-250 Super Duty and 2017–2018 Ford F-350 Super Duty.
Earlier Super Duty generations and other Ford trucks are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The tow hooks bolt on and are included with the bumper. The winch mount and D-ring mounts are optional bolt-on parts that Fab Fours lists separately.
What’s included
The full guard front bumper with bolt-on tow hooks and mounts for the factory fog lights.
Not included: The optional bolt-on winch mount and D-ring mounts.
