Overview

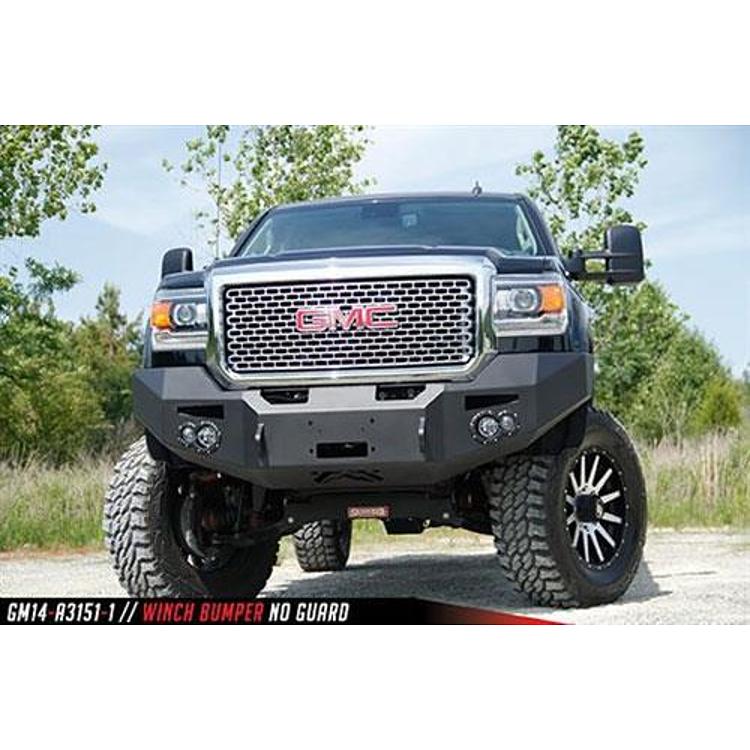

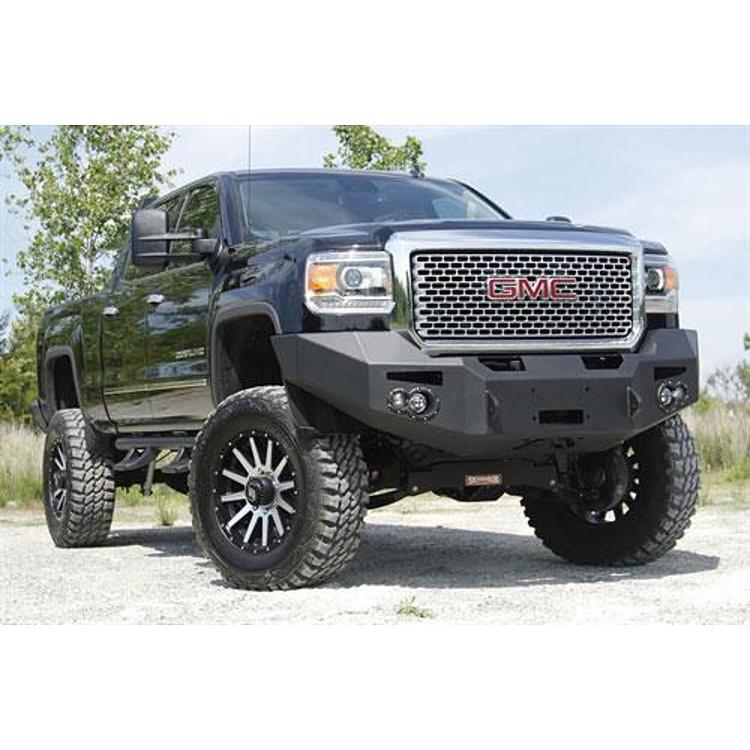

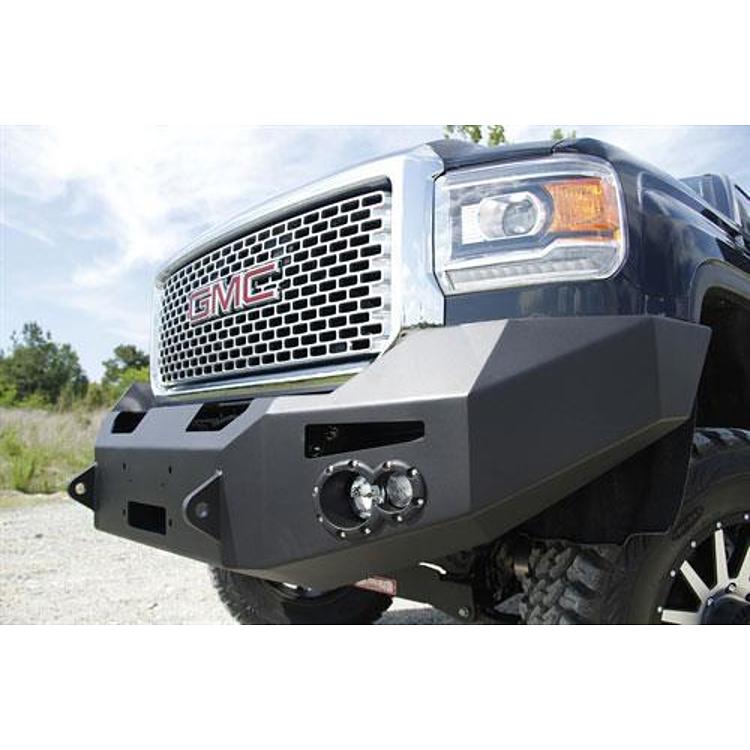

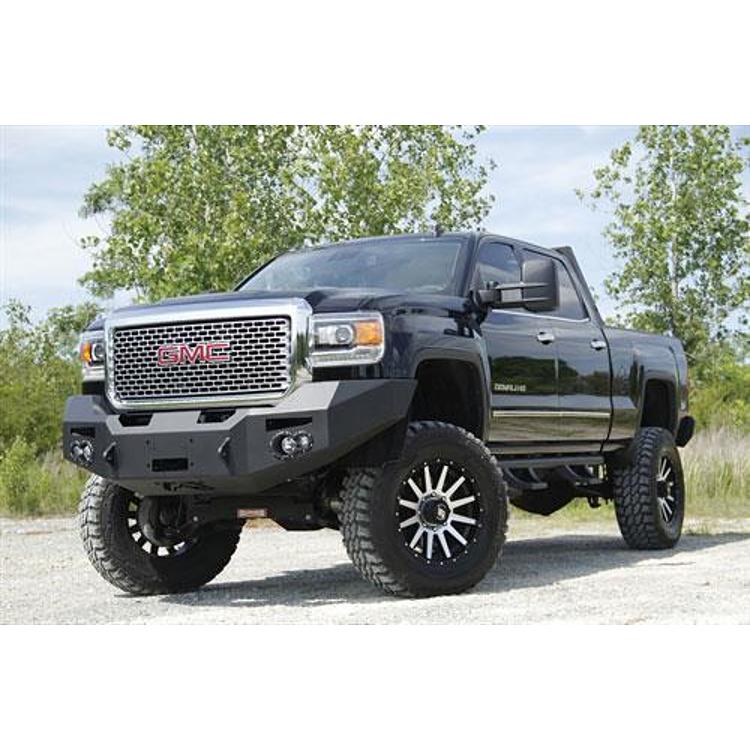

The Fab Fours GM14-A3151-1 is a heavy duty winch front bumper with sensor holes for the 2015 to 2018 GMC Sierra 2500 HD and 3500 HD. It has no grille guard, and it is steel with a 2 stage black powder coat.
The center section is redesigned, with four integrated sensor holes that work with the factory park assist system and are compatible with the OEM sensor housings.
The internal winch tray has a new D-ring and fairlead location and lets the factory sensor harness pass through. The bumper accepts winches of 16,500 lb or smaller, except the WARN Power Plant, and includes fog and turn lights, air ducts and D-ring mounts.
Key features
- Heavy duty winch bumper with sensor holes for 2015 to 2018 GMC Sierra 2500 HD and 3500 HD
- Four integrated sensor holes for the factory park assist system, compatible with OEM sensor housings
- Internal winch tray lets the factory sensor harness pass through
- Accepts winches up to 16,500 lb, except the WARN Power Plant
- Fog and turn lights included
- Air ducts and D-ring mounts
- No grille guard
- 2 stage black powder coat on steel
- Made in the USA
Sensor winch bumpers and park assist
Park assist sensors send signals through the bumper face, so the sensor holes need to sit at the right height and angle to work correctly. A bumper with integrated holes keeps the sensors in their factory positions, which helps avoid false alerts. Any bumper with sensor holes should be tested after installation by driving in a safe, open area.
A winch adds weight and shifts the center of mass at the front of the truck. Choose a winch well within the bumper limit, and store the cable and hook properly to avoid damaging the fairlead and sensor area.
- Test park assist after installation
- Keep the winch within bumper limits
- Store cable and hook properly
- Inspect sensor housing seals after trail use
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | GM14-A3151-1 |
| UPC | 5810107949 |
| Product type | Heavy duty winch front bumper with sensor holes, no grille guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | 2 stage black powder coat |
| Winch capacity | 16,500 lb winch or smaller, except the WARN Power Plant |
| Sensor holes | Four, for the factory park assist system |
| D-ring mounts | Included |
| Lights | Fog and turn lights, included |
| Winch mount | Included |
Vehicle fitment
It is a direct fit for the 2015 to 2018 GMC Sierra 2500 HD and 2015 to 2018 GMC Sierra 3500 HD. Confirm your model year before ordering.
It does not cover the Sierra 1500 or the older 2007 to 2014 heavy duty trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The winch bolts to the internal winch tray, and the factory sensor harness passes through the tray. Do not use a WARN Power Plant winch with this bumper.
What’s included
- Front winch bumper
- D-ring mounts
- Fog and turn lights
- Air ducts
- Winch mount
Not included: The winch, and wiring for the lights.
