Overview

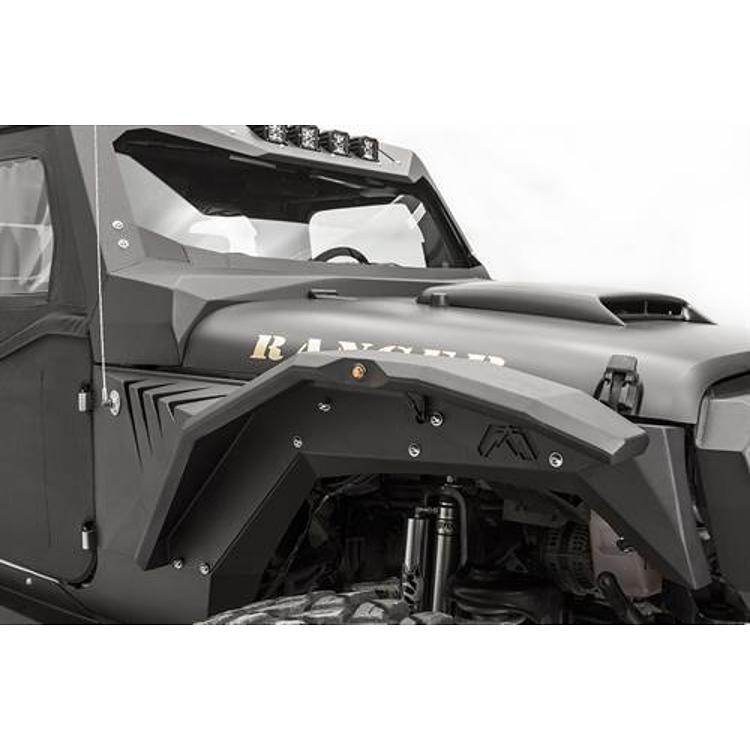

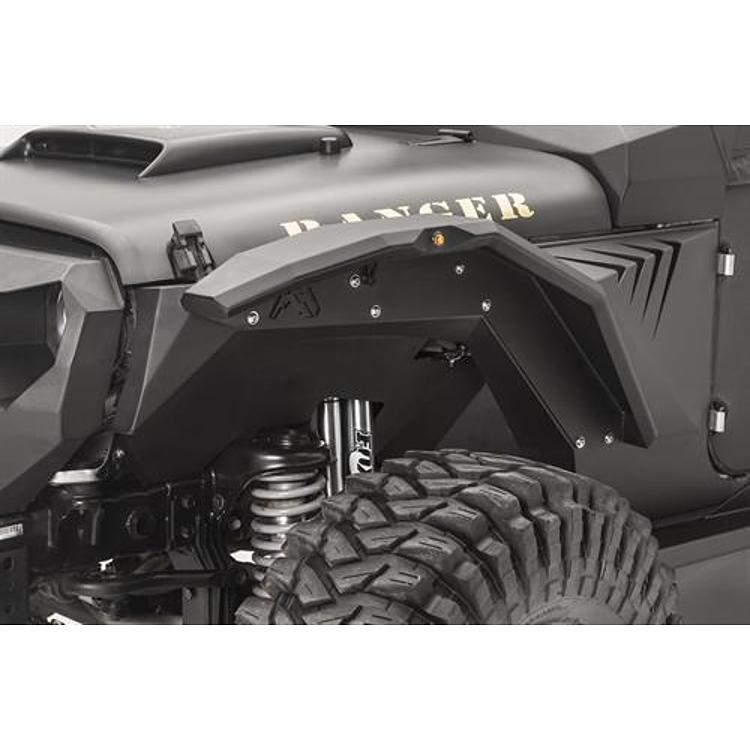

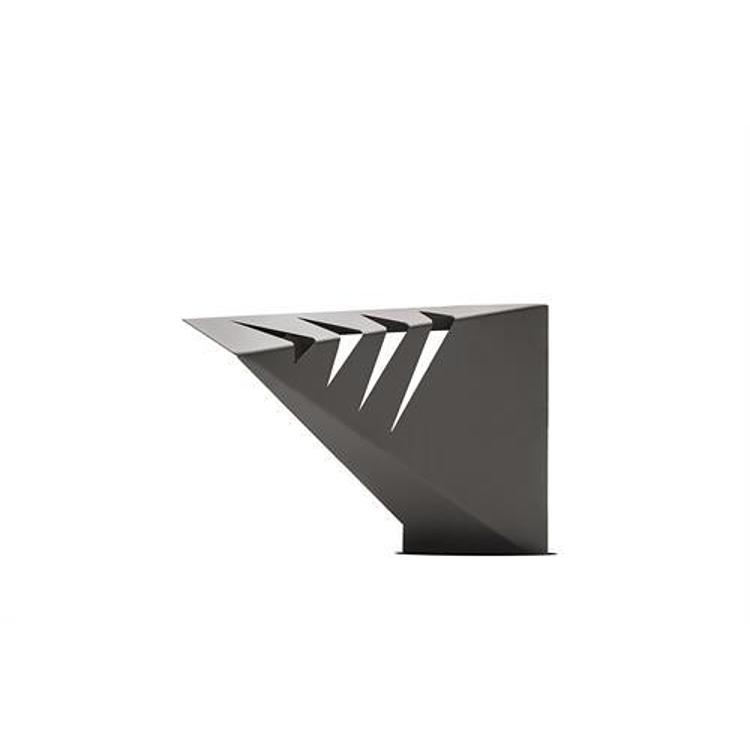

The Fab Fours JK1004-B is a front fender gill box in bare metal for the 2007–2018 Jeep Wrangler (JK), two-door and Unlimited four-door. Fab Fours designed it to work with its fender replacement system, and it gives a more aggressive, wide body look.
The gill box is 100 percent steel and has an integrated rock light mount. It bolts to the base fender with stainless steel hardware and needs no drilling.
Key features
- Integrated rock light mount
- No drilling required
- 100 percent steel construction
- Accommodates the factory antenna
- Sold as a pair
- Stainless steel hardware
Gill box and the base fender
A gill box is a styling panel, so its fit depends on the base fender beneath it. Because it bolts to the base fender, that fender needs to be in position and aligned before the gill box goes on, or the panel can sit proud or crooked. Watch the gap at the fender edge and the position of the light mount.
A rock light mount adds a point where light and wiring meet the body, so route cable carefully and keep it clear of moving parts and mud. Steel gill boxes benefit from a coating touch-up at any chips to slow rust. Recheck wheel clearance at full steering lock after the parts are on, since a wider look can change how close the tire sits to the panel.
- Align the base fender before fitting
- Route rock light wiring clear of the tire
- Recheck wheel clearance at full lock
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | JK1004-B |
| Position | Front fender gill box |
| Quantity | Sold as a pair |
| Finish | Bare steel |
| Construction | 11 gauge steel, CNC laser cut, brake formed |
| Weight | 15 lbs |
| Height | 15 inches |
| Width | 12 inches |
| Length | 23 inches |
| Width/coverage | Stock |
| Fitment type | Direct fit |
Vehicle fitment
Covered trims are 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X, in both two-door and Unlimited four-door forms.
The list does not include the 2019 and later JL or the 1997–2006 TJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The gill box mounts to the base fender, so the base fender has to be in place before the gill box is fitted. Check the front fender fit and the wheel clearance once both parts are on.
What’s included
The gill box is sold as a pair, with stainless steel hardware. The integrated rock light mount is built into the gill box.
