Overview

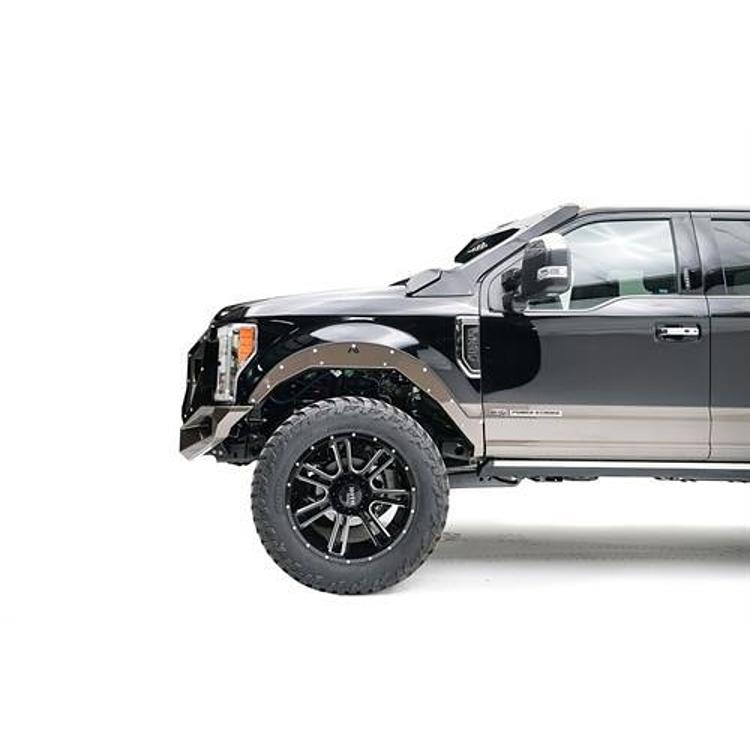

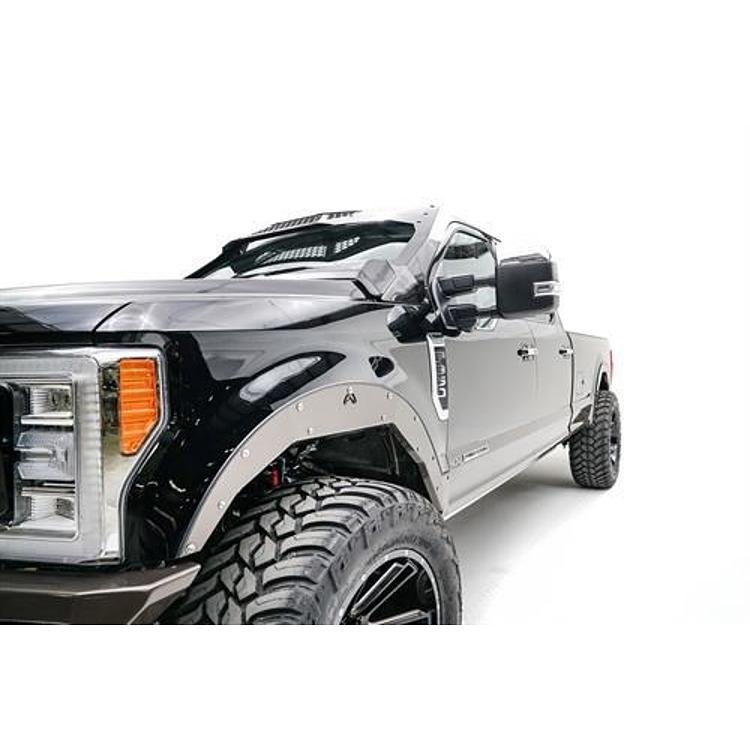

The TF4100-1 is an open front fender base system without flares, in black, for the 2017–2018 Ford F-250 and F-350 Super Duty. The base system is built to run 40-inch tires with only a leveling kit, while keeping the geometry low and wide.
The system is modular and can be run with or without the optional fender flares, which are sold separately as the TF4110-1. It keeps the factory ride and the ability to haul without a drop-down trailer hitch. The flares add to the base system.
Key features
- Designed for 40-inch tires with a leveling kit
- Keeps geometry low and wide.
- Includes inner fender
- Two stage matte black powder coat
- 11-gauge U.S. steel construction
- Modular design, with or without optional flares
- Keeps the factory door and entry access
Tires, leveling and steering checks
Running larger tires on a leveling kit adds load to the front suspension and steering, even when the fender system itself fits well. Ball joints, tie rod ends, bump stops and the steering stabilizer can all wear faster once the tire size changes. Inspecting them during the install is the simplest way to catch problems early.
Alignment is the last step that matters. A new front height and tire diameter change the caster and toe settings, so have the alignment checked after the fender and leveling work is complete. Recheck tire clearance at full lock and under load, since tire rubbing often starts only after the truck is loaded.
- Inspect tie rod ends and ball joints during the install
- Check bump stop contact after the leveling kit goes on
- Recheck clearance once the truck is loaded
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | TF4100-1 |
| UPC | 5810115630 |
| Position | Front |
| Finish | Two stage matte black powder coat |
| Steel | 11 gauge U.S. steel |
| Tire size | 40-inch with leveling kit |
| Installation | Professional installation recommended |
| Kit contents | Inner fender, templates, adhesives, epoxy and drill bits |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017–2018 Ford F-250 Super Duty and 2017–2018 Ford F-350 Super Duty in King Ranch, Lariat, Limited, Platinum, XL and XLT trims.
Verify your year, model and trim before you buy, since the fit covers the 2017–2018 model years.
Installation notes
Professional installation is advised. The kit includes templates, adhesives, epoxy and drill bits, along with an installation manual and video. Plan for the time the fit-up takes, and note that the kit covers the items needed to complete the installation.
What’s included
The kit provides templates, adhesives, epoxy and drill bits, the inner fender and a wrap grade template set. The optional fender flares are not included and are sold as TF4110-1.
